Seat Back Panel Replacement - Front (Driver Side)

Seat Back Panel Replacement - Front (Driver Side)

Removal Procedure

1. Remove the lumber knob, if equipped.

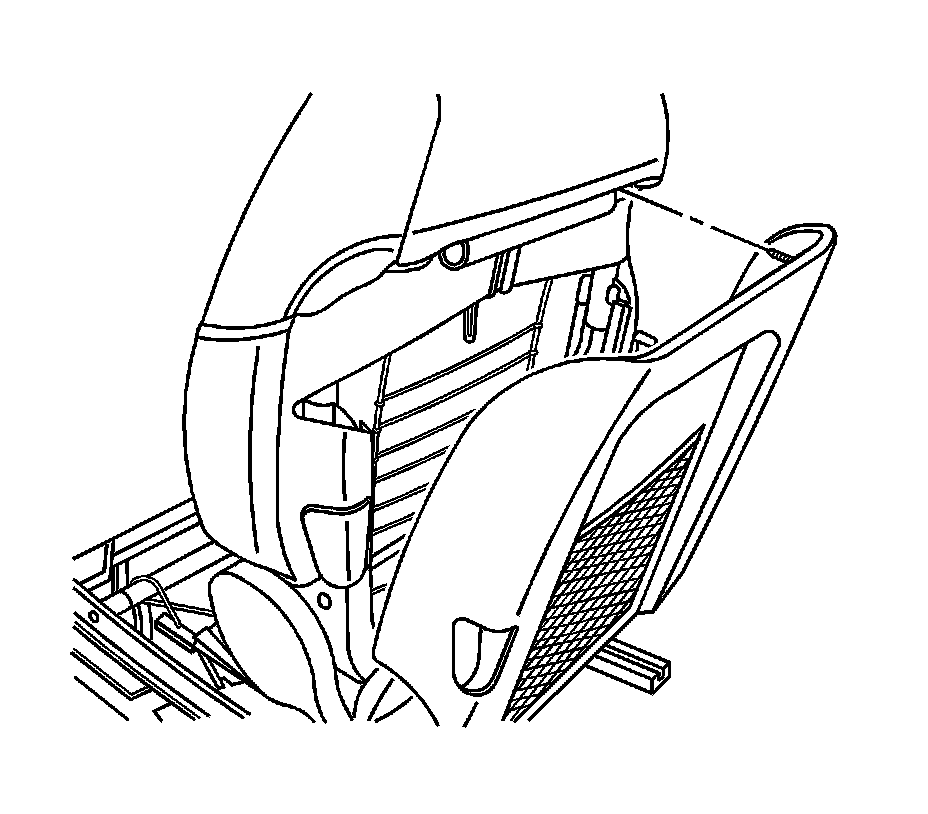

2. Starting at the top of the seat back panel, remove the push-in retainers by pulling the panel from the seat back frame.
3. Remove the seat back panel from the seat back frame by pulling straight up.

Installation Procedure




1. Install the seat back panel to the seat back frame.
2. Push at the top of the seat back panel to install the push-in retainers to the frame.
3. Install the lumber knob.
