Seat Back Panel Replacement - Front (Passenger Side)

SEAT BACK PANEL REPLACEMENT - FRONT (PASSENGER SIDE)

REMOVAL PROCEDURE

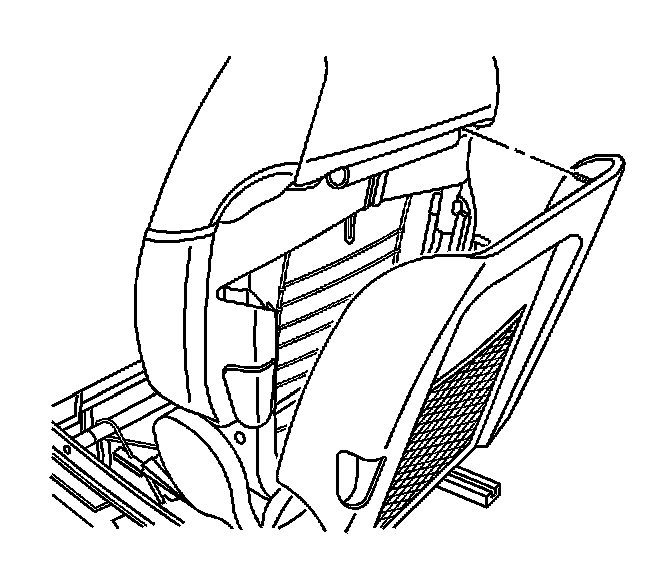

1. Starting at the top of the seat back panel and working all the way around, pull the panel from the seat back frame.
2. Remove the seat back panel from the seat back frame.

INSTALLATION PROCEDURE




1. Install the seat back panel to the seat back frame.
2. Starting at the top of the seat back panel and working all the way around, push the panel onto the frame.
