Seat Back Cover and Pad Replacement - Front
SEAT BACK COVER AND PAD REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Remove the front seat from the vehicle.
2. Remove the lumbar knob, if equipped.
3. Remove the seat back panel.

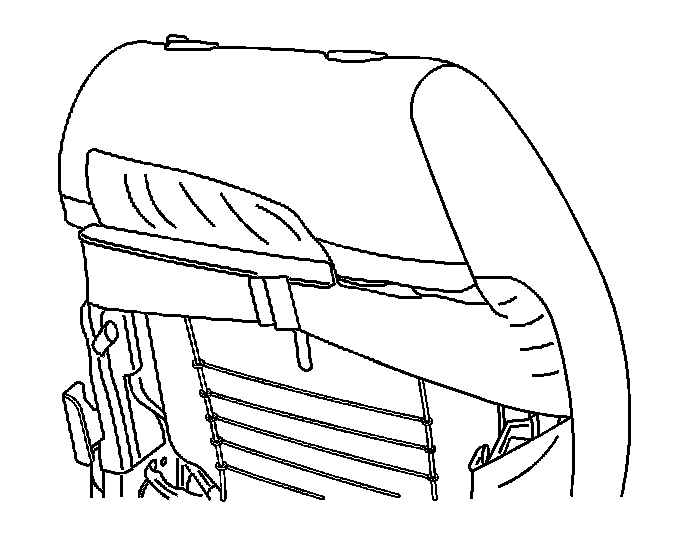

4. Remove the J-strips from the seat frame.
5. Remove the head restraint guides.

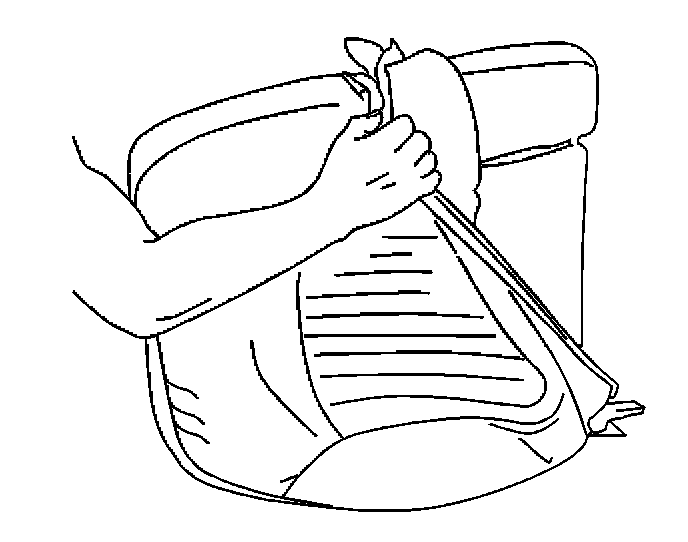

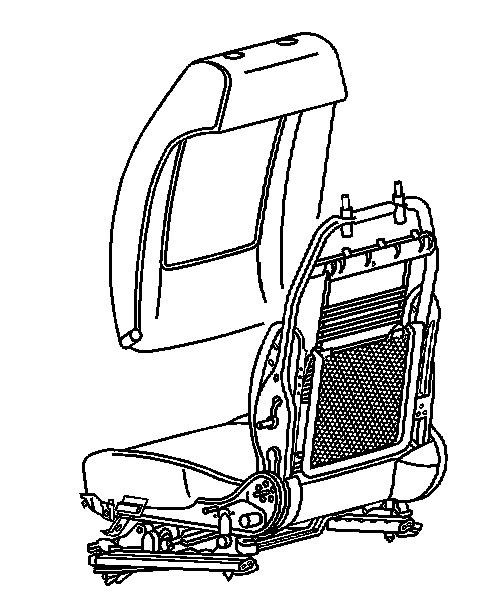

6. Remove the seat back cover and pad from the seat frame.
7. Remove the hog rings from the seat back pad.
8. Remove the seat back cover from the pad.
INSTALLATION PROCEDURE
1. Install the seat back cover to the pad.
2. Install the hog rings to the seat back pad.

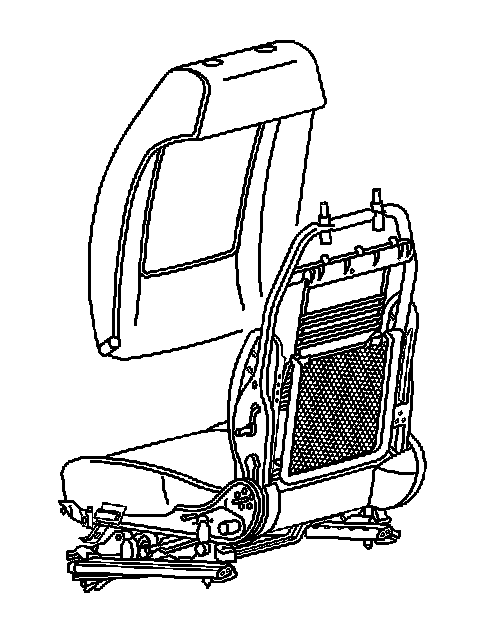

3. Install the seat back cover and pad to the seat frame.
4. Install the head restraint guides.

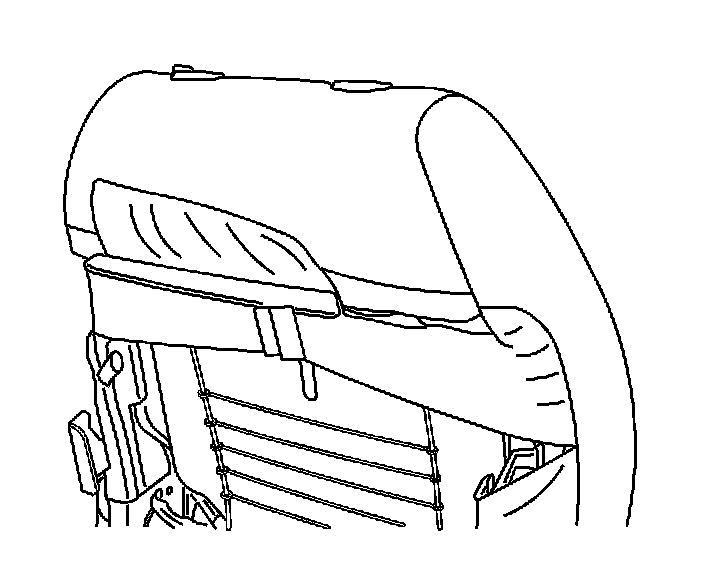

5. Install the J-strips to the seat frame.
6. Install the seat back panel.
7. Install the lumbar knob.
8. Install the front seat in the vehicle.
