Procedures

SEAT SWITCH REPLACEMENT - POWER

REMOVAL PROCEDURE

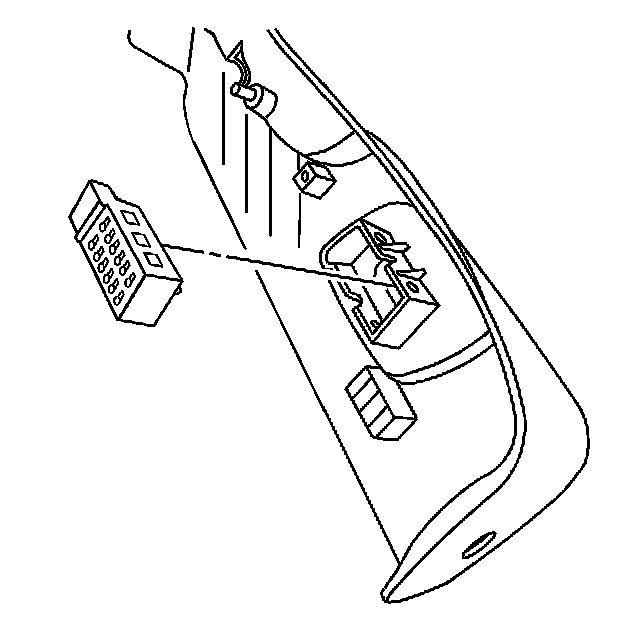

1. Remove the outer trim panel from the seat cushion.

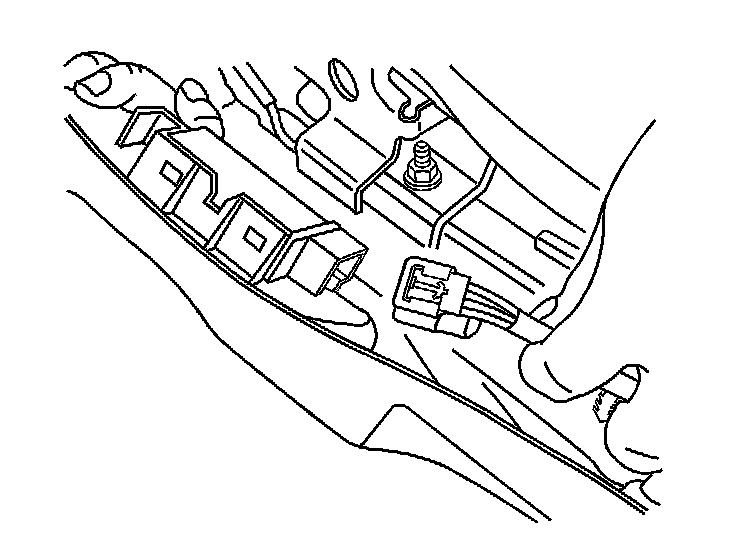

2. Disconnect the electrical connector.




3. Remove the power seat switch from the outer trim panel.

INSTALLATION PROCEDURE

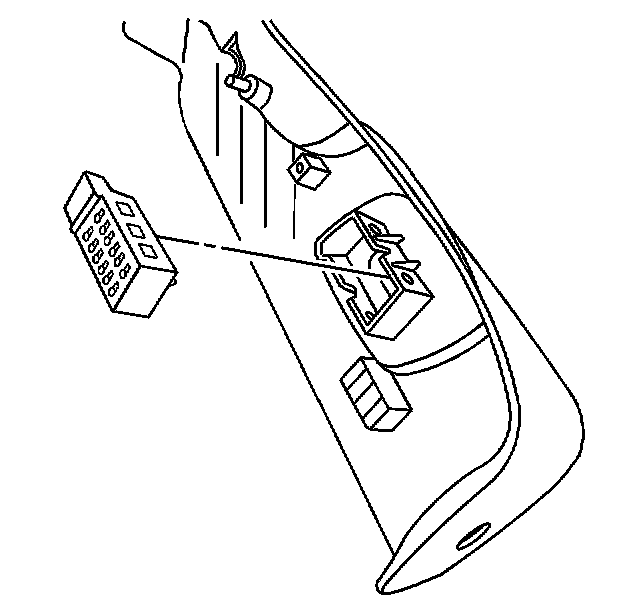

1. Install the power seat switch to the outer trim panel on the seat cushion.

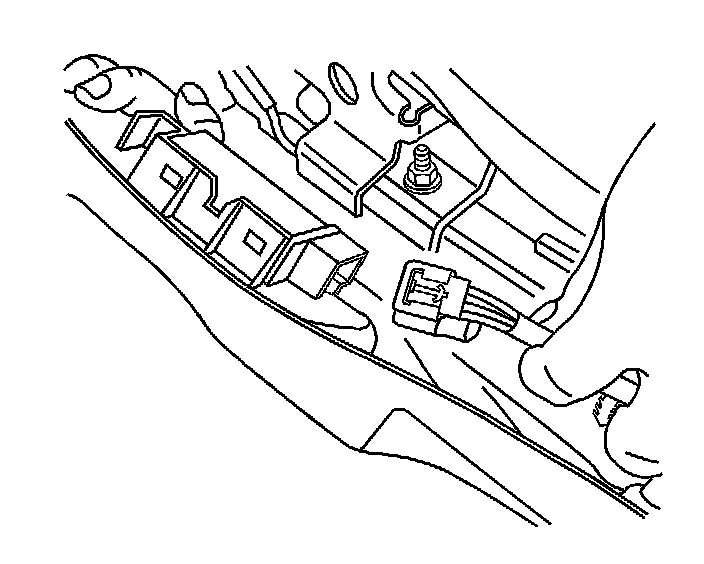

2. Connect the electrical connector.
3. Install the outer trim panel.
