Cup Holder Replacement - Front Floor Console - Rear

Cup Holder Replacement - Front Floor Console - Rear

Removal Procedure

1. Remove the console armrest.
2. Open the rear cup holder.

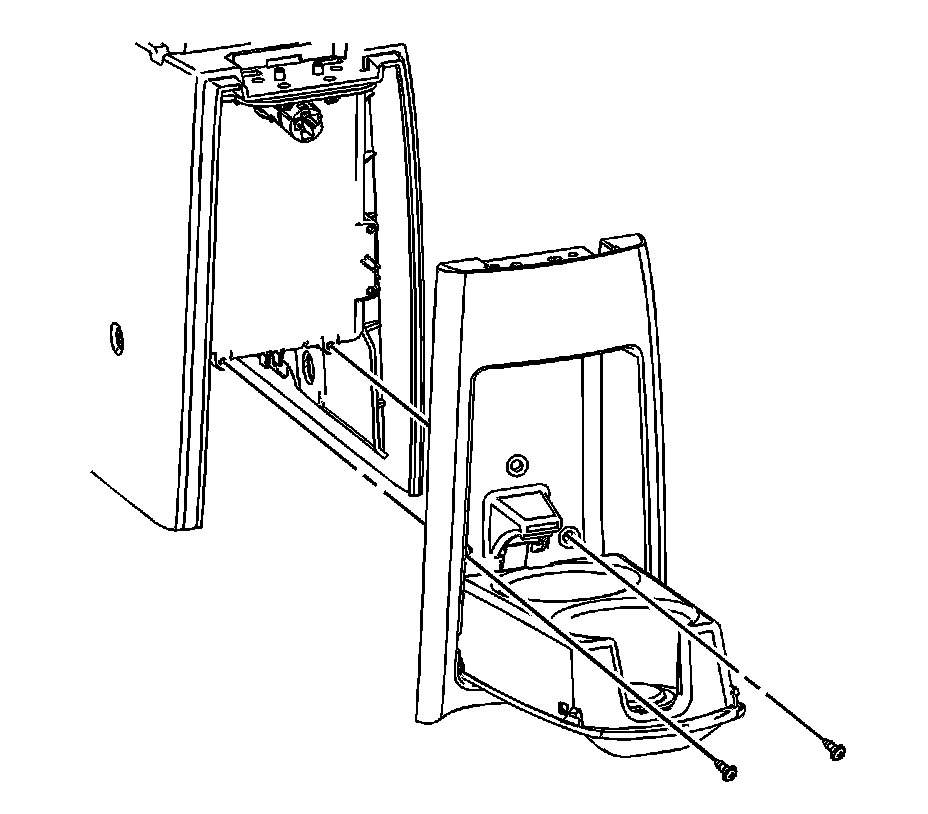

3. Remove the console rear cup holder screws.




4. Remove the console rear cup holder.

Installation Procedure




1. Install the console rear cup holder.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the console rear cup holder screws.

Tighten the screws to 1 N.m (10 lb in).

3. Install the console armrest.
