Console Replacement - Front Floor

CONSOLE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the right console trim panel.
2. Remove the left console trim panel.

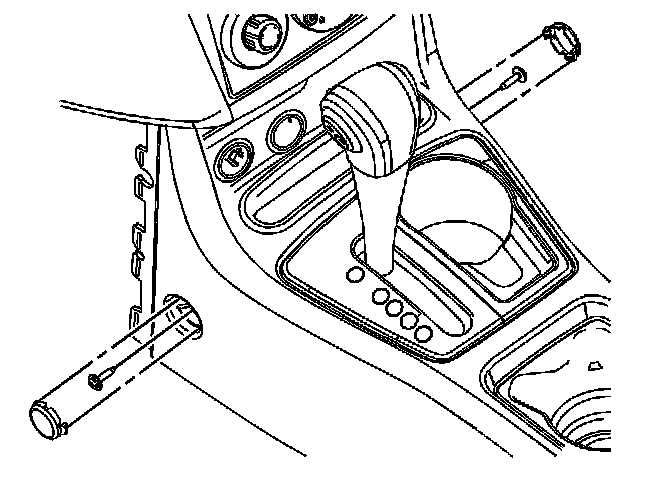

3. Remove the front console screw covers from behind the console.
4. Remove the front console screws.




5. Position the front seats to the full forward position.

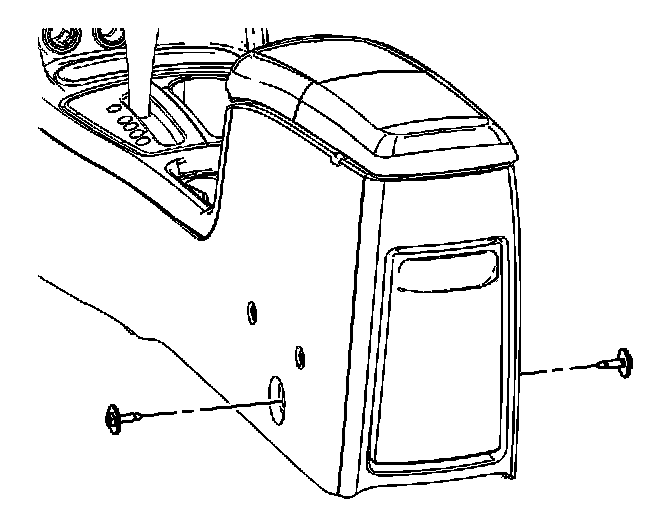

6. Remove the rear console bolts.
7. Place the shifter in drive.




8. Remove the pen tray.

IMPORTANT: Do not let the console contact the shifter handle or bezel.

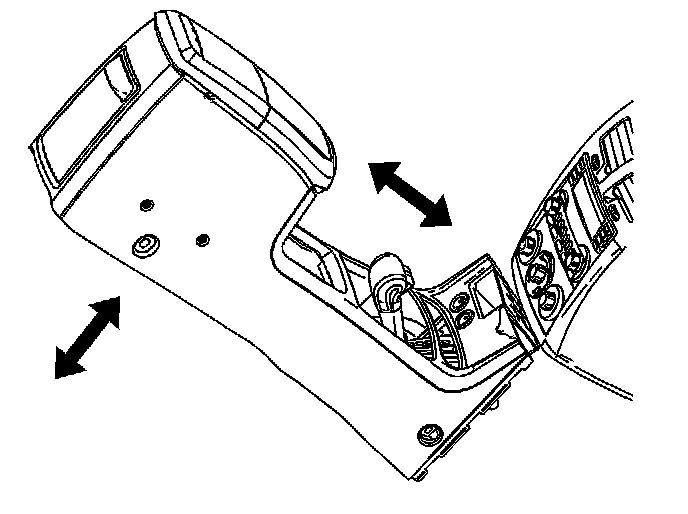

9. Remove the console.

INSTALLATION PROCEDURE

IMPORTANT: Do not let the console contact the shifter handle or bezel.

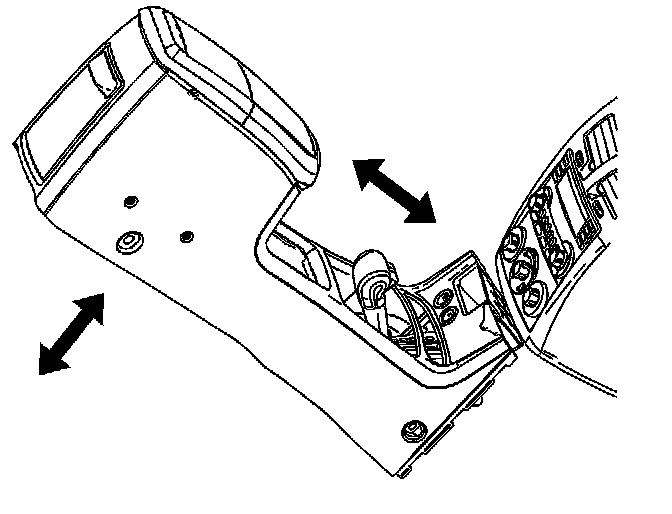

1. Install the console.




2. Install the pen tray.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the rear console bolts.

Tighten
Tighten the bolts to 1 N.m (10 lb in).

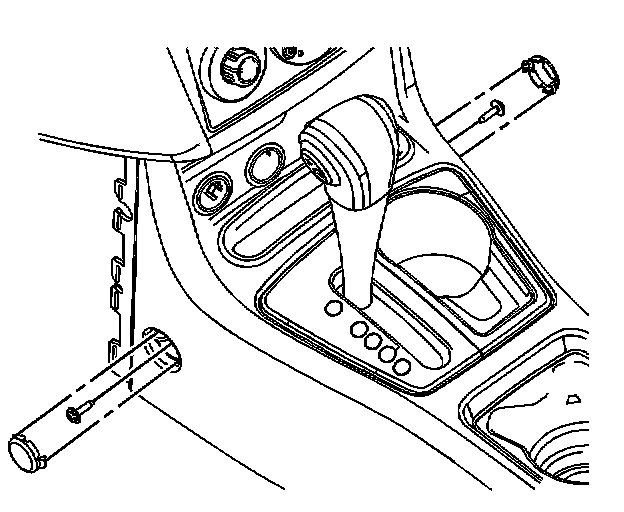

4. Install the front console screws.

Tighten
Tighten the bolts to 1 N.m (10 lb in).




5. Install the front console screw cover.
6. Install the left console trim panel.
7. Install the right console trim panel.
