Bracket Replacement - Console Floor (U32)

Bracket Replacement - Console Floor (U32)

Removal Procedure

1. Remove the video display.
2. Remove the console rear trim plate.
3. Remove the DVD player.

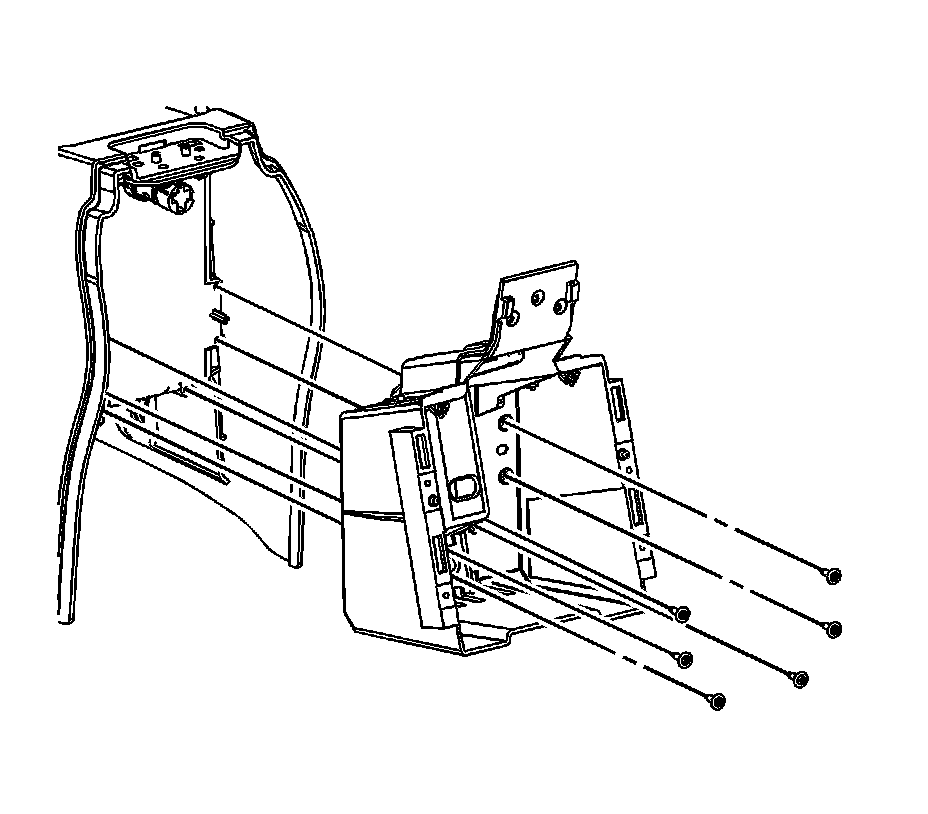

4. Remove the console bracket screws.




5. Remove the console bracket.

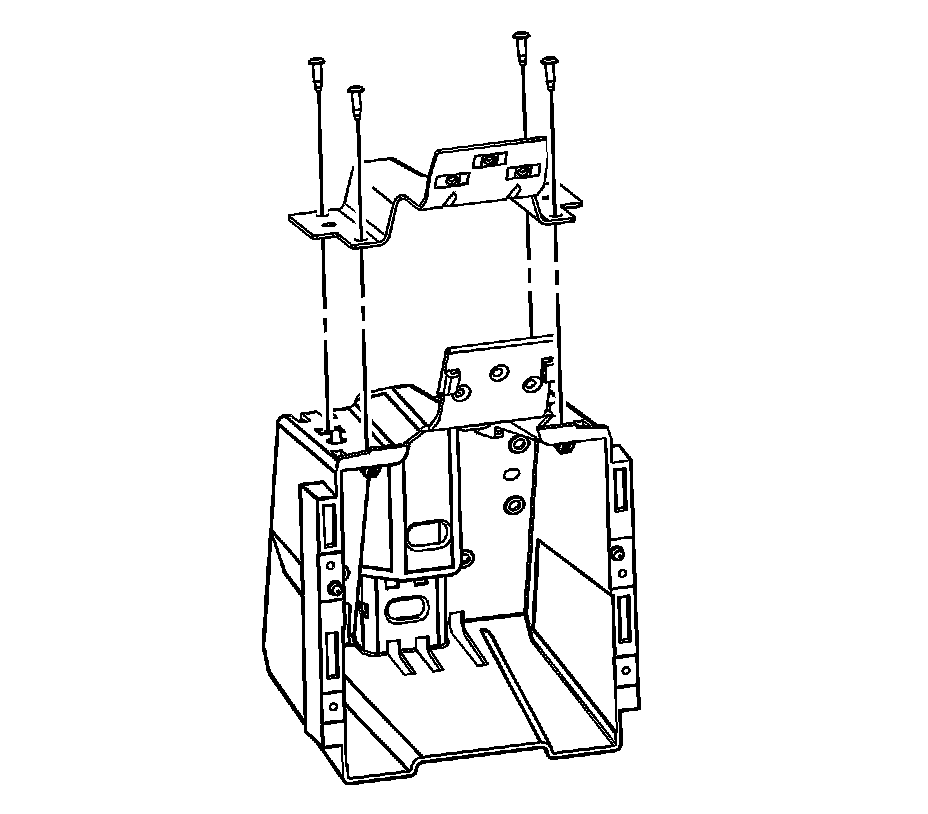

6. Remove the console bracket reinforcement screws.




7. Remove the console bracket reinforcement.

Installation Procedure




1. Install the console bracket reinforcement.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the console bracket reinforcement screws.

Tighten the screws to 1 N.m (10 lb in).




3. Install the console bracket.
4. Install the console bracket screws.

Tighten the screws to 1 N.m (10 lb in).

5. Install the DVD player.
6. Install the console rear trim plate.
7. Install the video display.
