Trunk / Liftgate Switch: Service and Repair

LATCH SWITCH REPLACEMENT - LIFTGATE

REMOVAL PROCEDURE




1. Remove the liftgate applique.

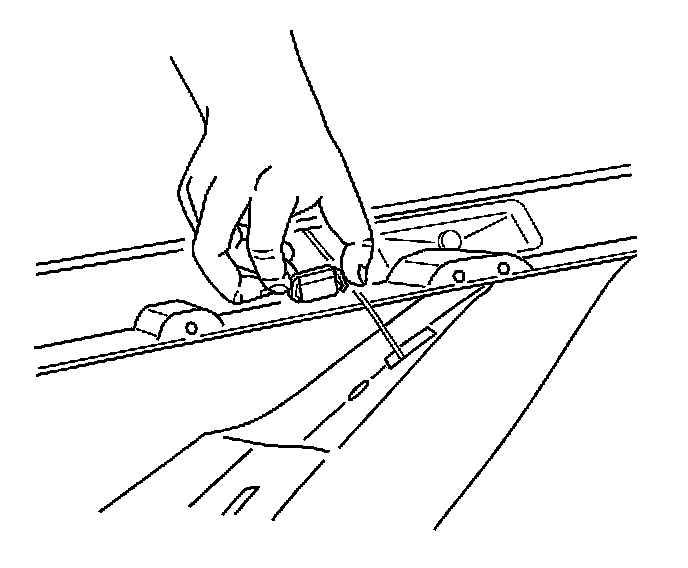

2. Depress the locking tabs on the switch. Remove the switch.

INSTALLATION PROCEDURE




1. Push the switch into place until the locking tabs engage the applique.
2. Install the liftgate applique.
