Pedal Positioning Switch: Service and Repair

ACCESSORY SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Remove the left instrument panel (I/P) trim panel.

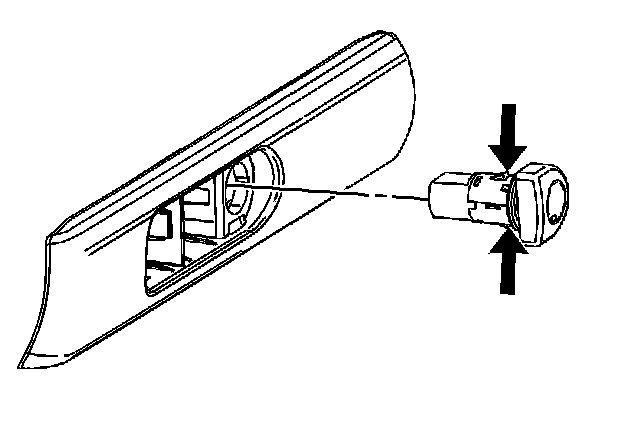

2. Remove the fog lamp switch wire harness connector.




3. Remove the fog lamp switch.




4. Remove the adjustable pedal switch wire harness connector.
5. Remove the adjustable pedal switch.

INSTALLATION PROCEDURE




1. Install the adjustable pedal switch.
2. Install the adjustable pedal switch wire harness connector.




3. Install the fog lamp switch.
4. Install the fog lamp switch wire harness connector.
5. Install the left I/P trim panel.
