Pedal Positioning Sensor: Service and Repair

BRAKE PEDAL POSITION SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the closeout panel.

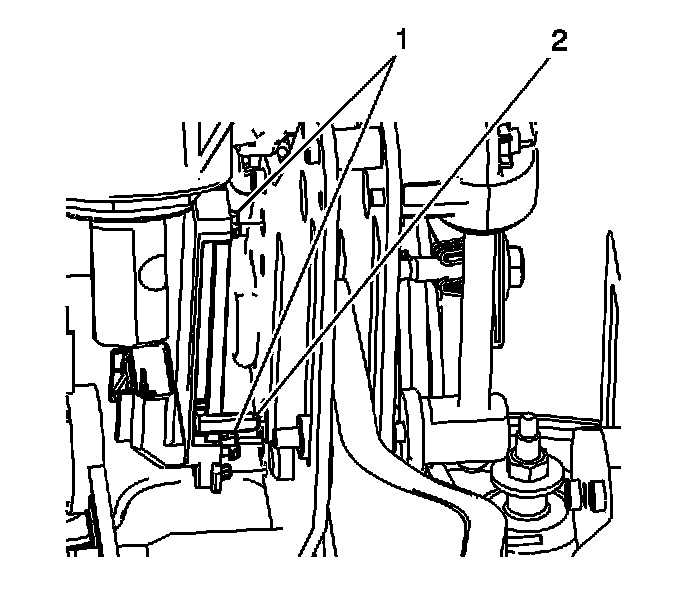

2. Remove the steering wheel stub shaft bolt and position the steering wheel stub shaft away from the steering column in order to gain access to the brake pedal adjustment position sensor.
3. Remove the electrical connector from the brake pedal position sensor.

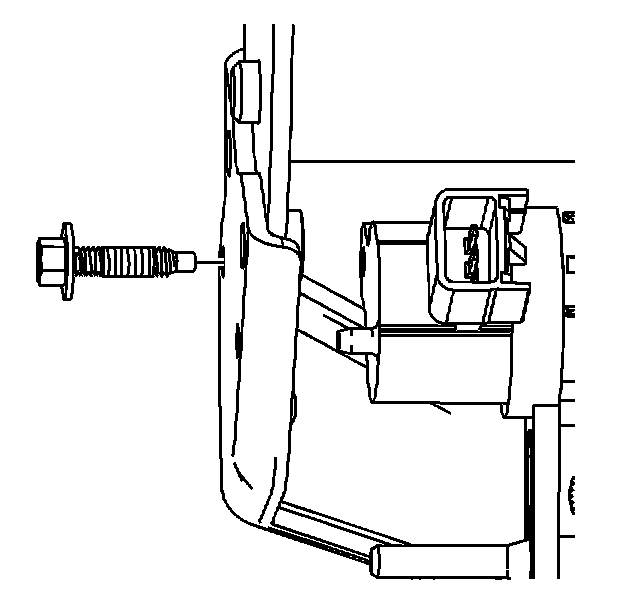

4. Remove the bolt from the position sensor, and remove the position sensor from the vehicle.

INSTALLATION PROCEDURE

IMPORTANT: Do not reuse the position sensor bolt. Always use a new bolt when installing a brake pedal position sensor.

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the brake pedal position sensor and the bolt to the brake pedal bracket.

Tighten
Tighten the bolt to 2 N.m (18 lb in).

2. Install the electrical connector to the position sensor.
3. Install the steering wheel stub shaft to the steering column.
4. Install the closeout panel.
5. Calibrate the position sensor.
