Garage Door Opener Replacement

GARAGE DOOR OPENER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the overhead console.

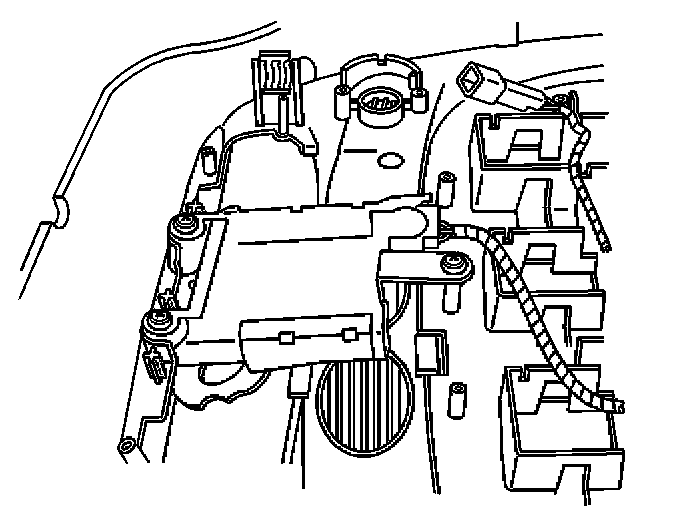

2. Remove the fasteners from the garage door opener.
3. Disconnect the electrical connector and remove the garage door opener.

INSTALLATION PROCEDURE

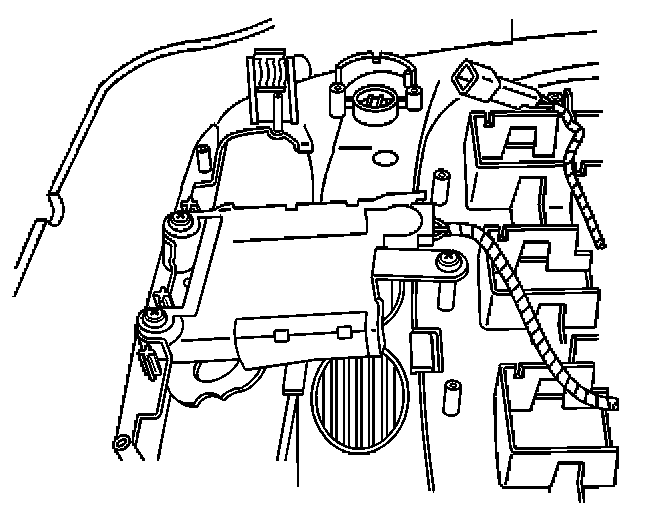

1. Install the garage door opener and connect the electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the fasteners to the garage door opener.

Tighten
Tighten the fastener to 2.5 N.m (22 lb in).

3. Install the overhead console.
