DTC P0816 (2.2L and 3.5L)

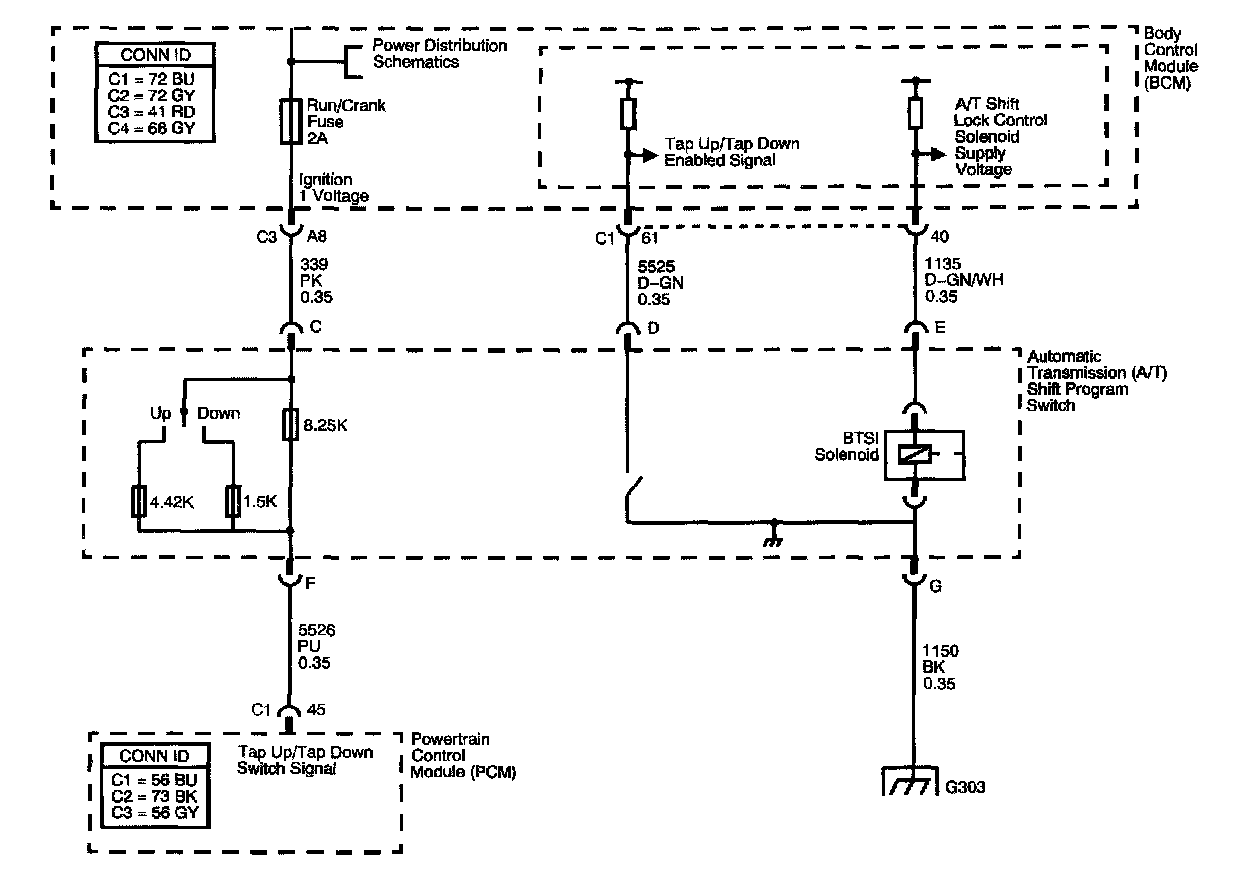

Circuit Description
The TAP Shift system allows the driver to manually shift gears by using the TAP Shift switches located on the Automatic Transmission Shifter. Pushing the Up switch will command an upshift and pushing the Down switch will command a downshift. The TAP Shift system is activated when the gear selector is in the Low (L) position and is deactivated in all other positions.

If the PCM detects the downshift circuit active for an extended period of time, then DTC P0816 sets. DTC P0816 is a type C DTC.

Conditions for Running the DTC
^ No TAP up/TAP down DTC P0826.
^ No PSA DTCs P1810, P1816, or P1818.
^ The engine speed is greater than 500 RPM for 5 seconds and not in fuel shut off.
^ The time since last gear selector range change is greater than 6 seconds.

Conditions for Setting the DTC
The PCM detects a downshift request for 2 seconds in park or for 5 minutes in D4.

Action Taken When the DTC Sets
^ The PCM does not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM disables TAP Shift operation.
^ The PCM assumes D4 for shifting.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Failure Records.
^ The PCM stores DTC P0816 in PCM history.

Conditions for Clearing the DTC
^ A scan tool can clear the DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without a non-emission related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and the DTC passes.

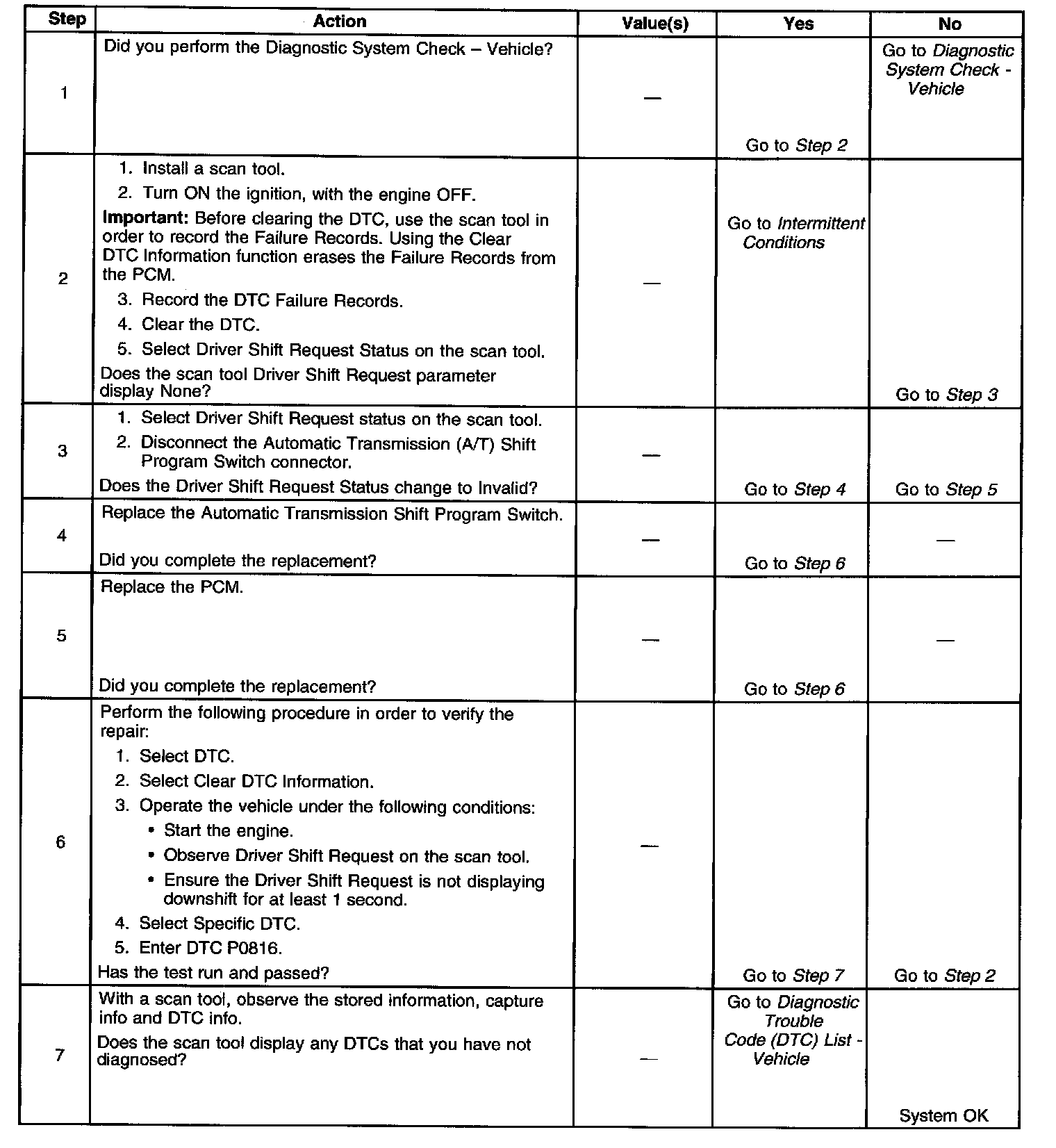

Steps 1-7:

DTC P0816 (2.2L and 3.5L)
