Diagnostic Trouble Code Description

DIAGNOSTIC TROUBLE CODE (DTC) LIST - VEHICLE

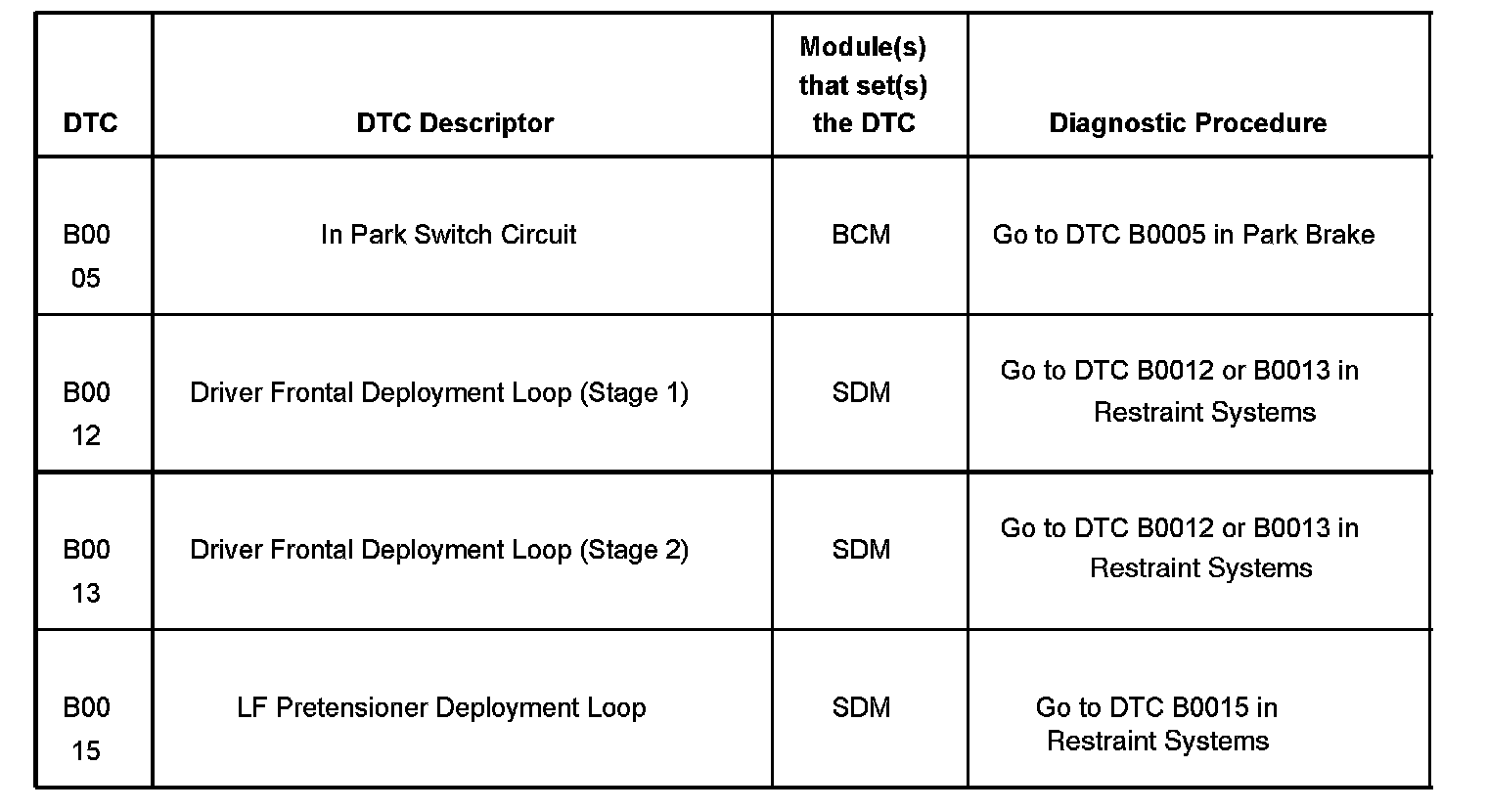

DTCs B0005 - B0015:

DTCs B0016 - B0083:

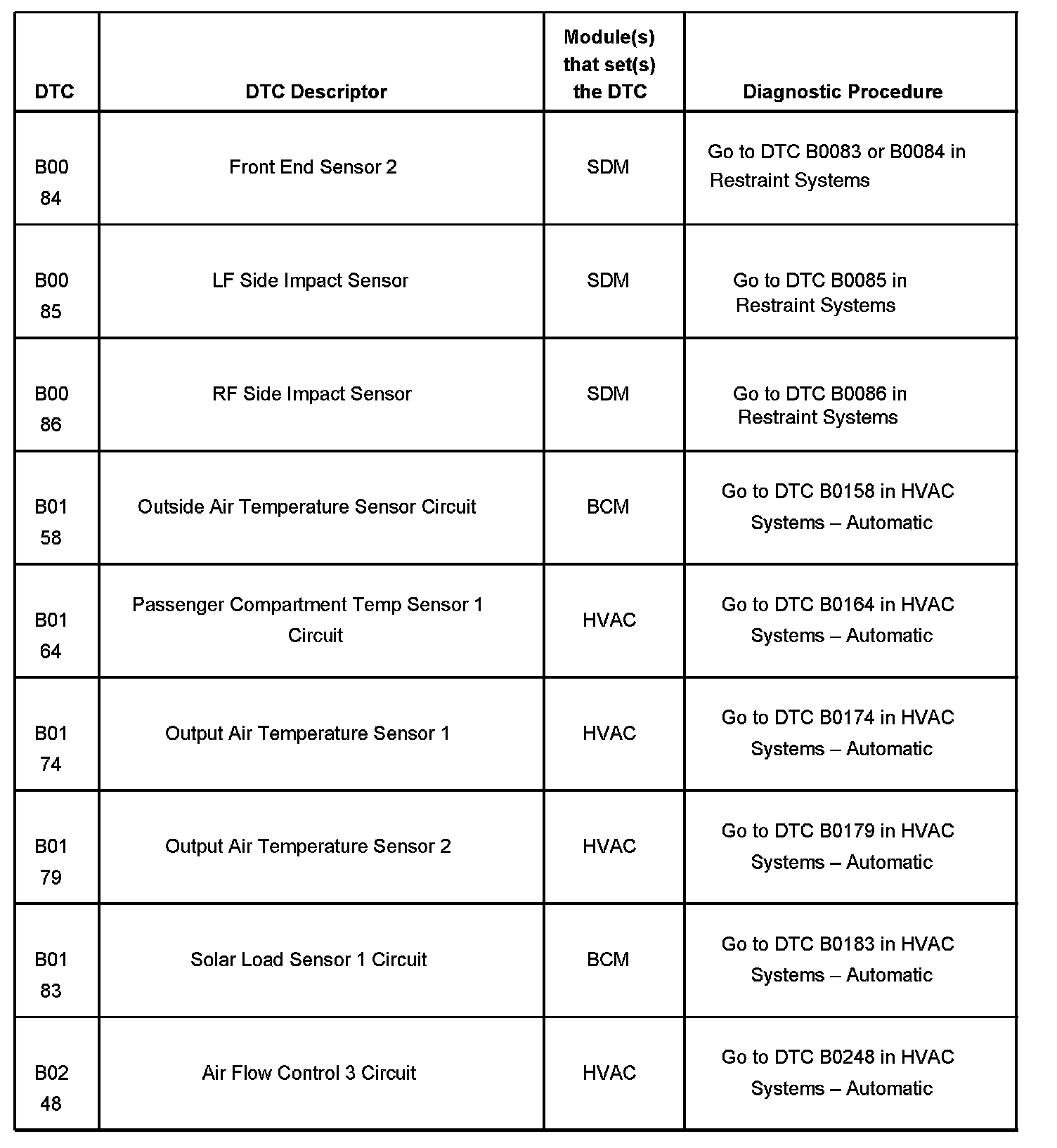

DTCs B0084 - B0248:

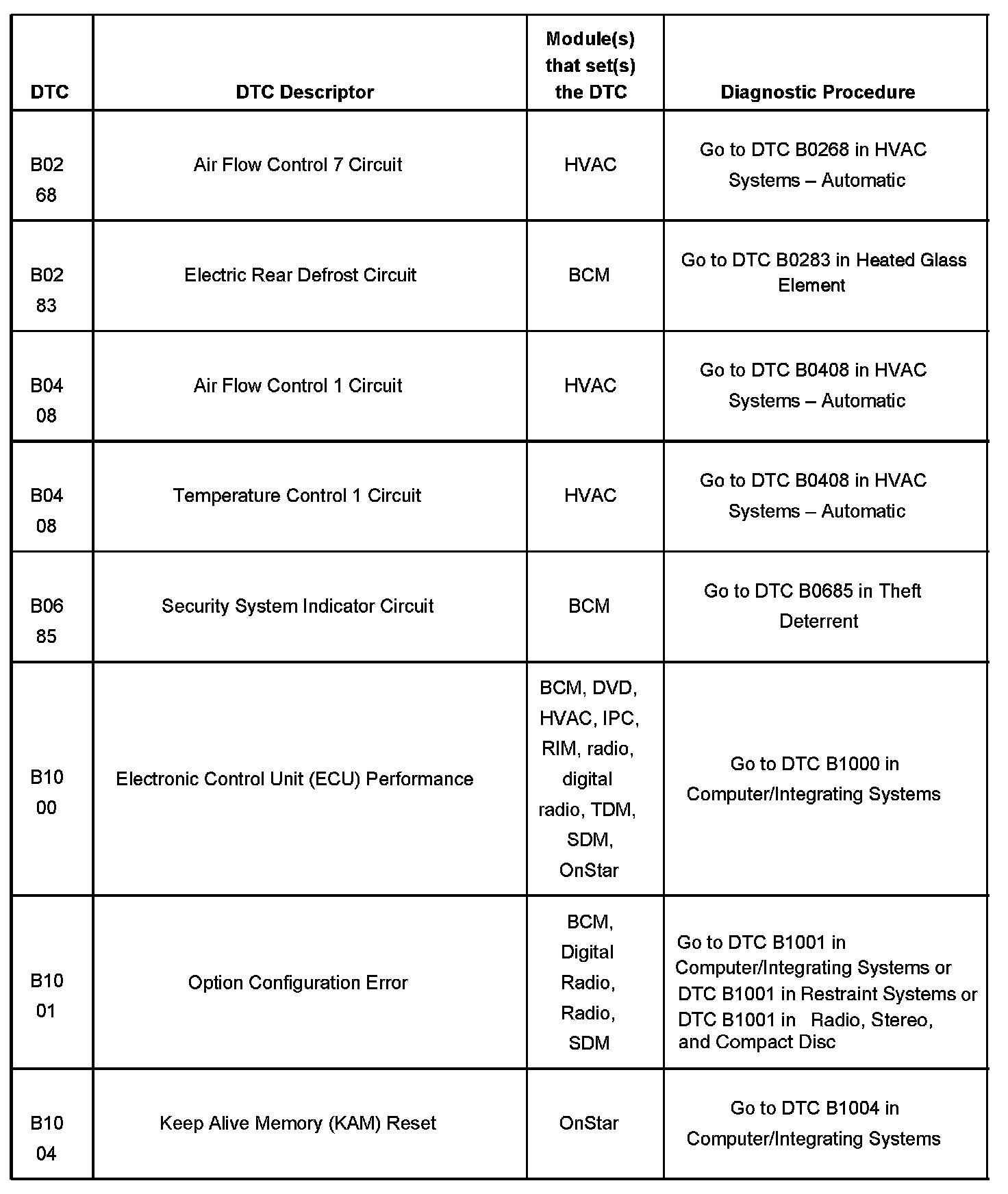

DTCs B0268 - B1004:

DTCs B1009 - B1259:

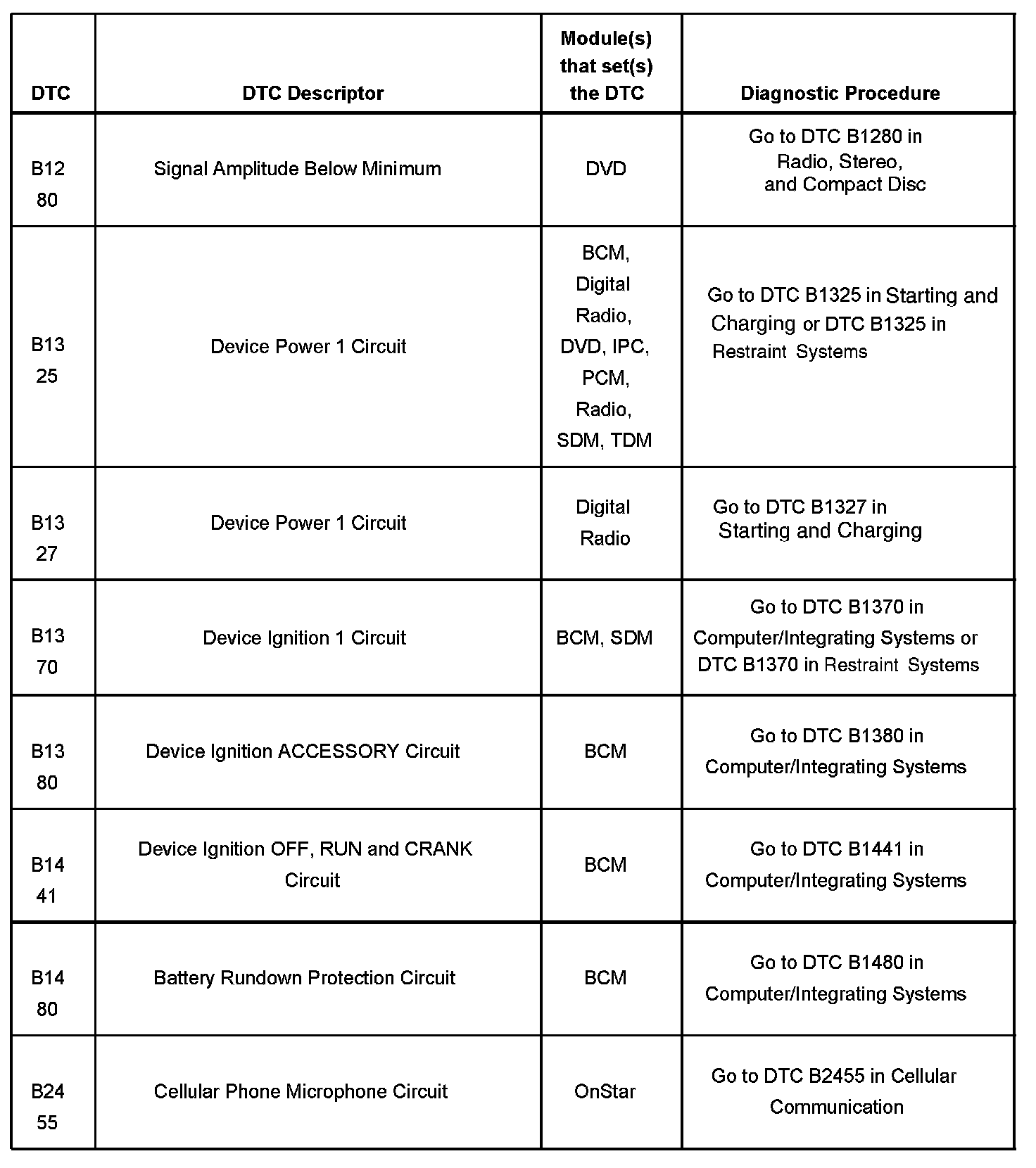

DTCs B1280 - B2455:

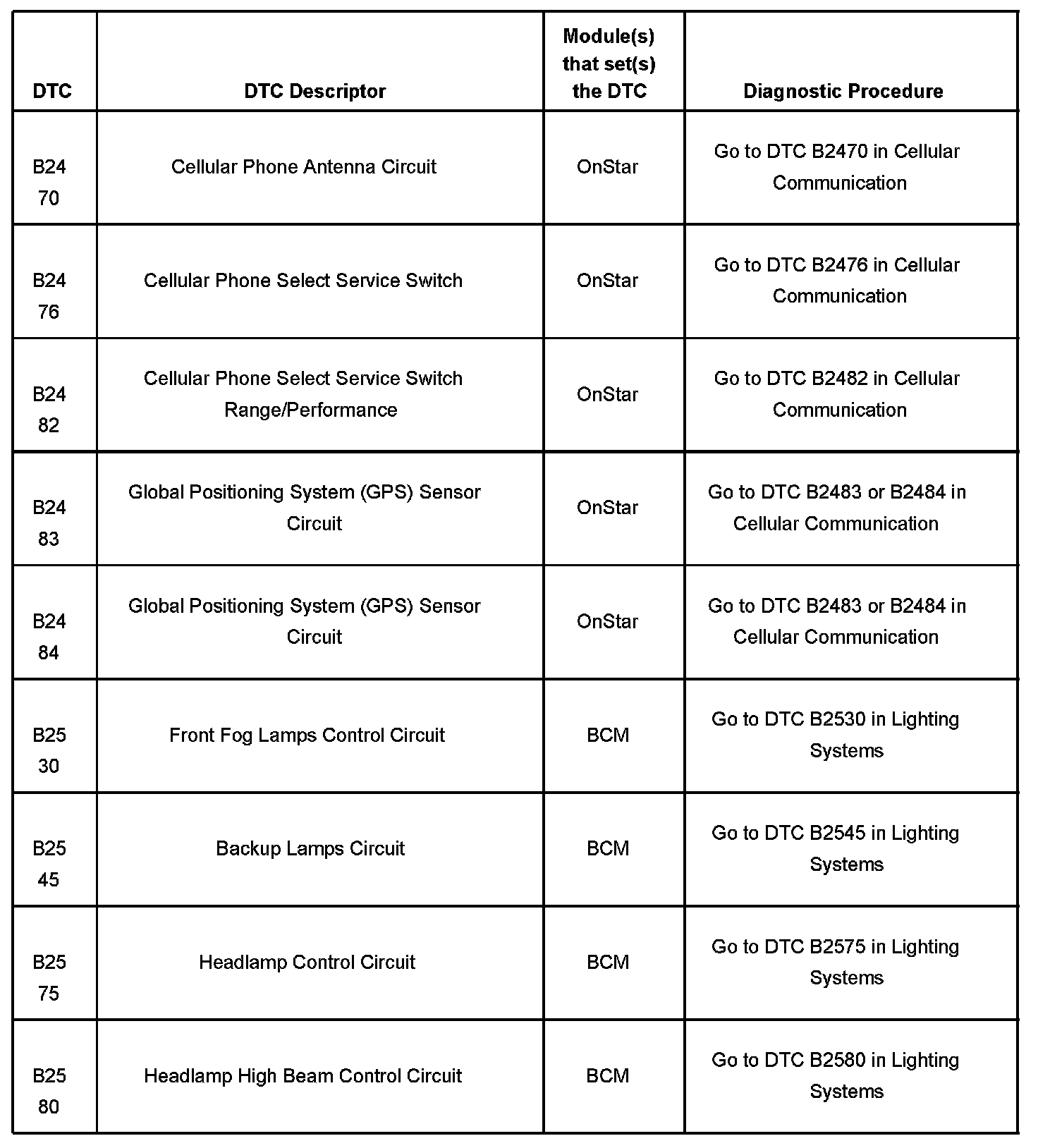

DTCs B2470 - B2575:

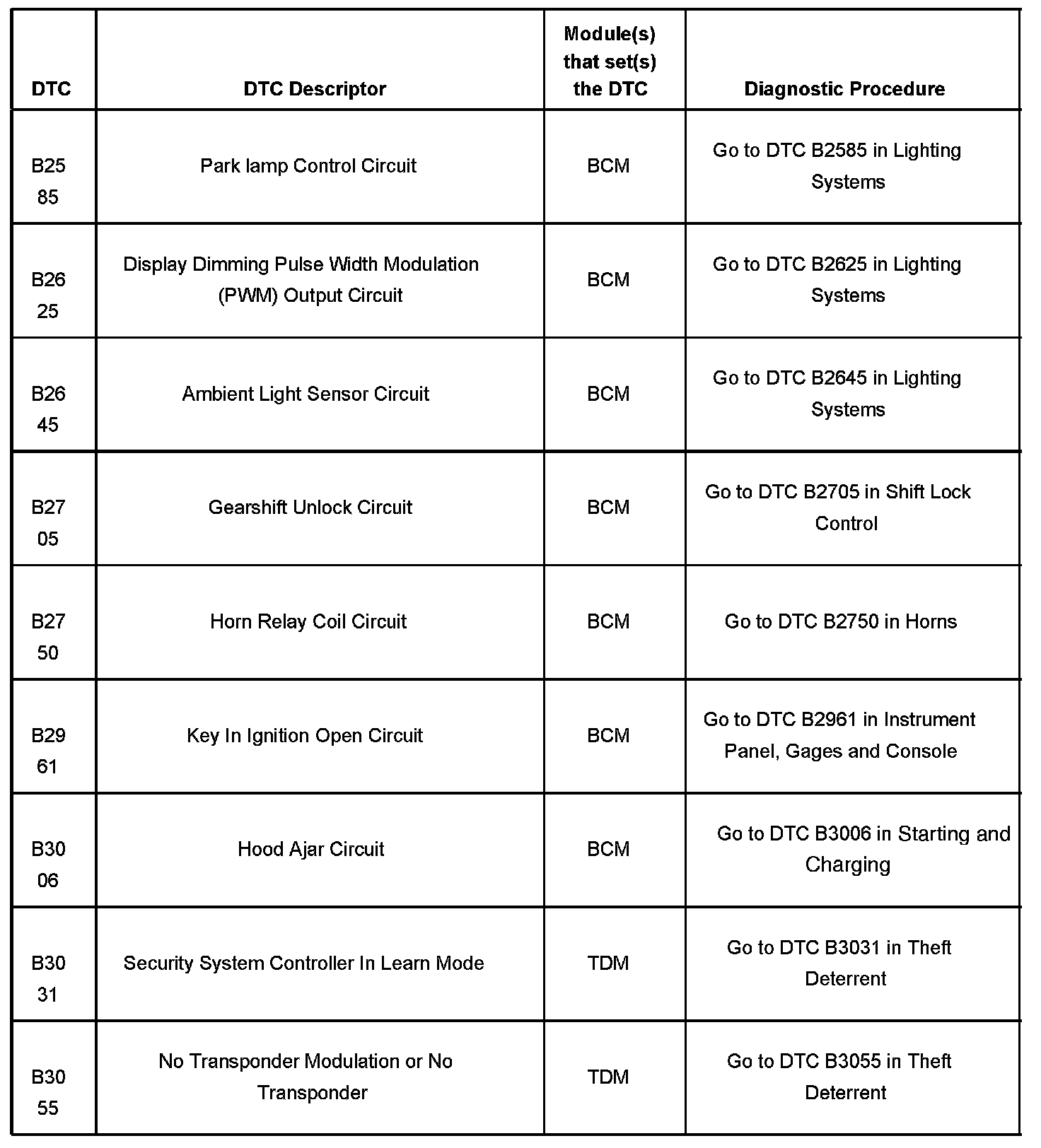

DTCs B2585 - B3031:

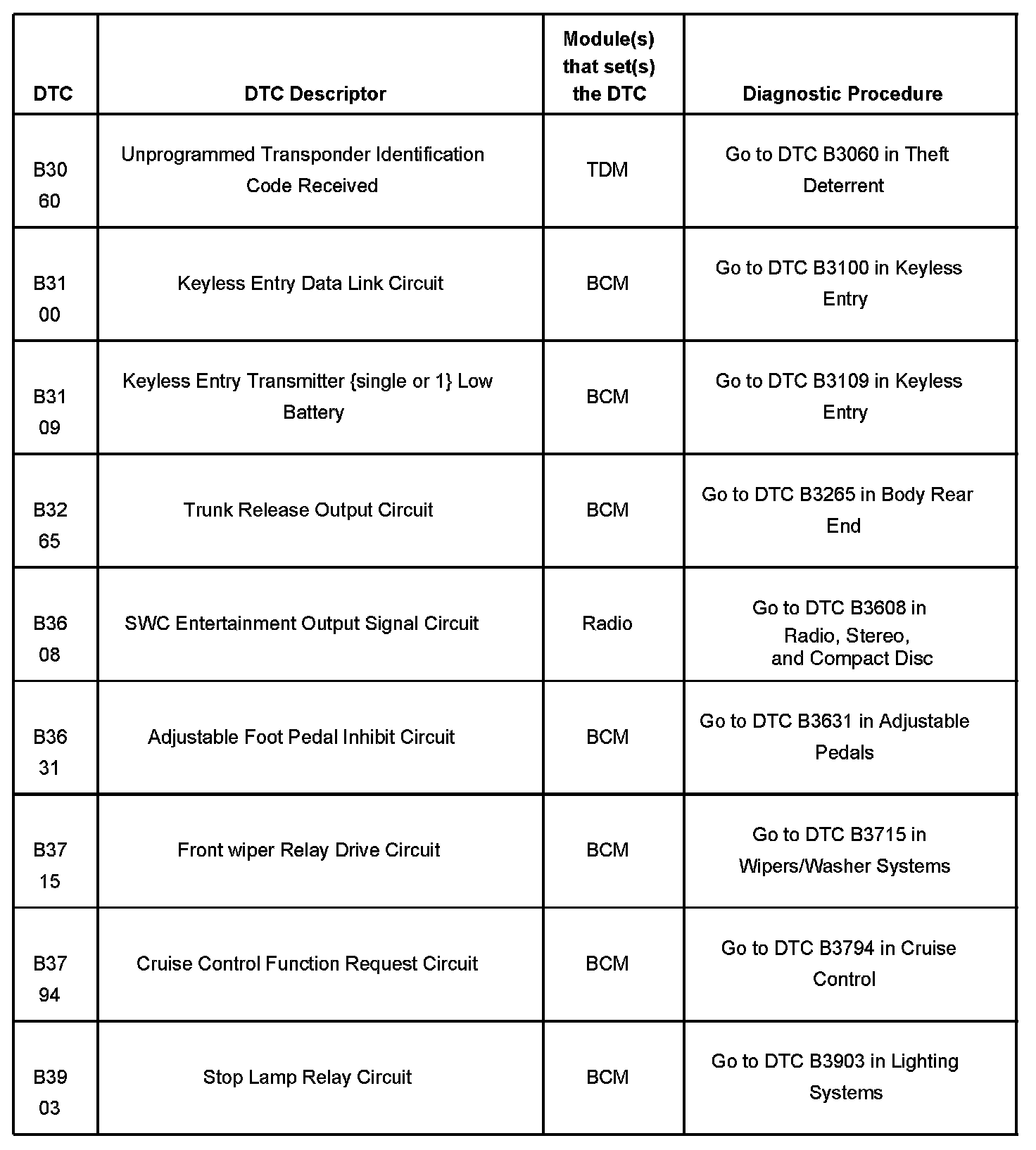

DTCs B3060 - B3903:

DTCs B3935 - C0040:

DTCs C0045 - C0228:

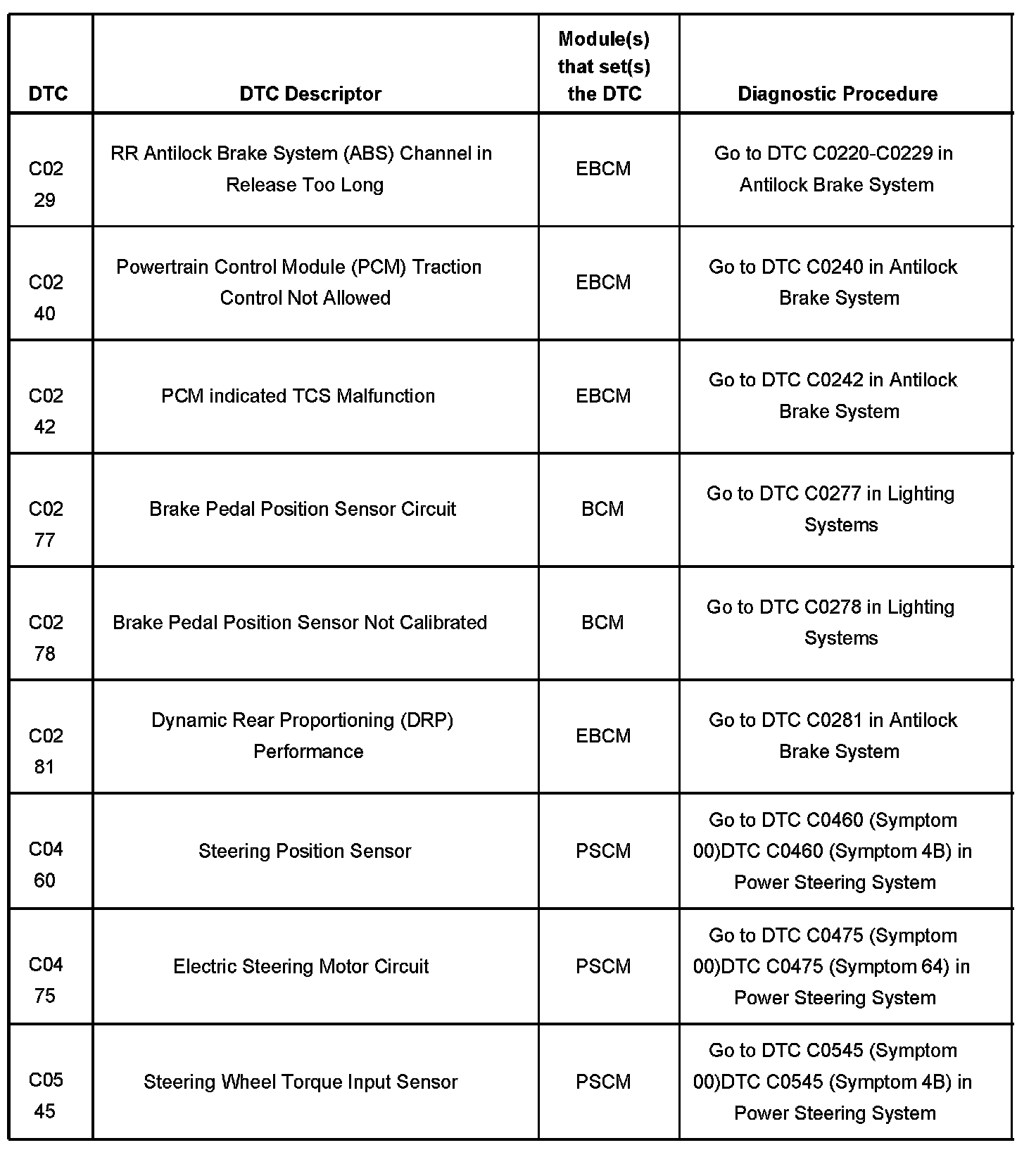

DTCs C0229 - C0545:

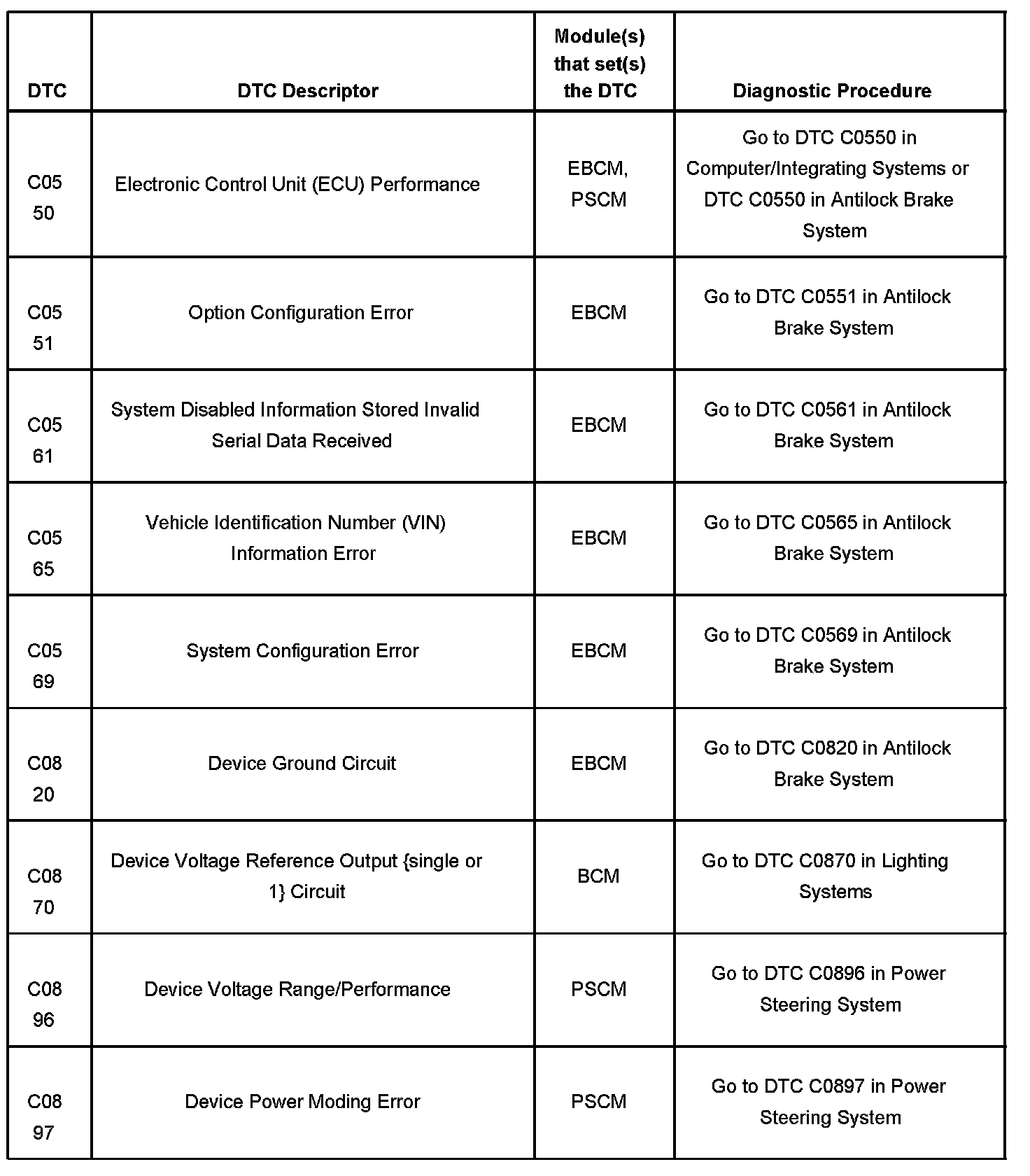

DTCs C0550 - C0897:

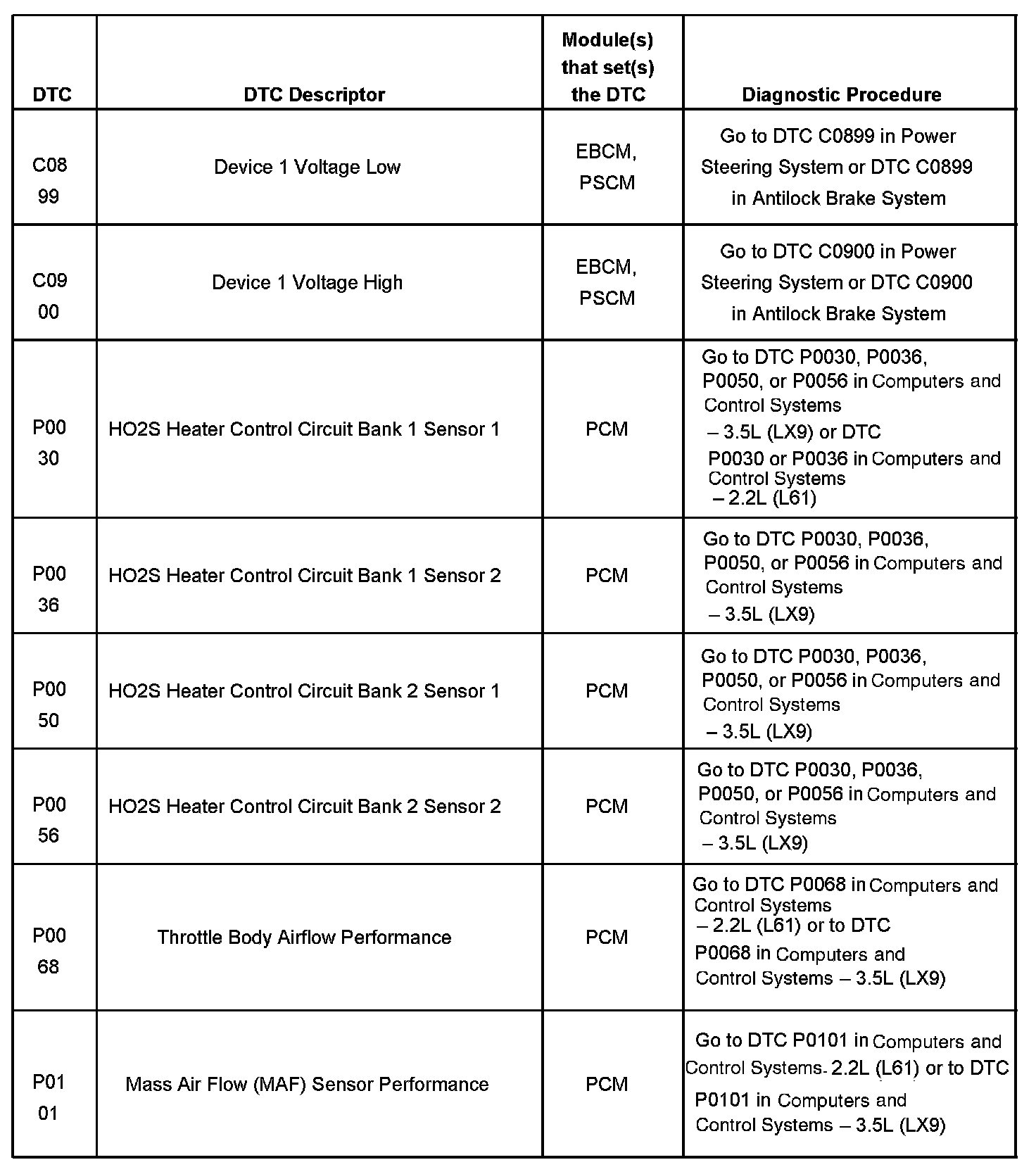

DTCs C0899 - P0101:

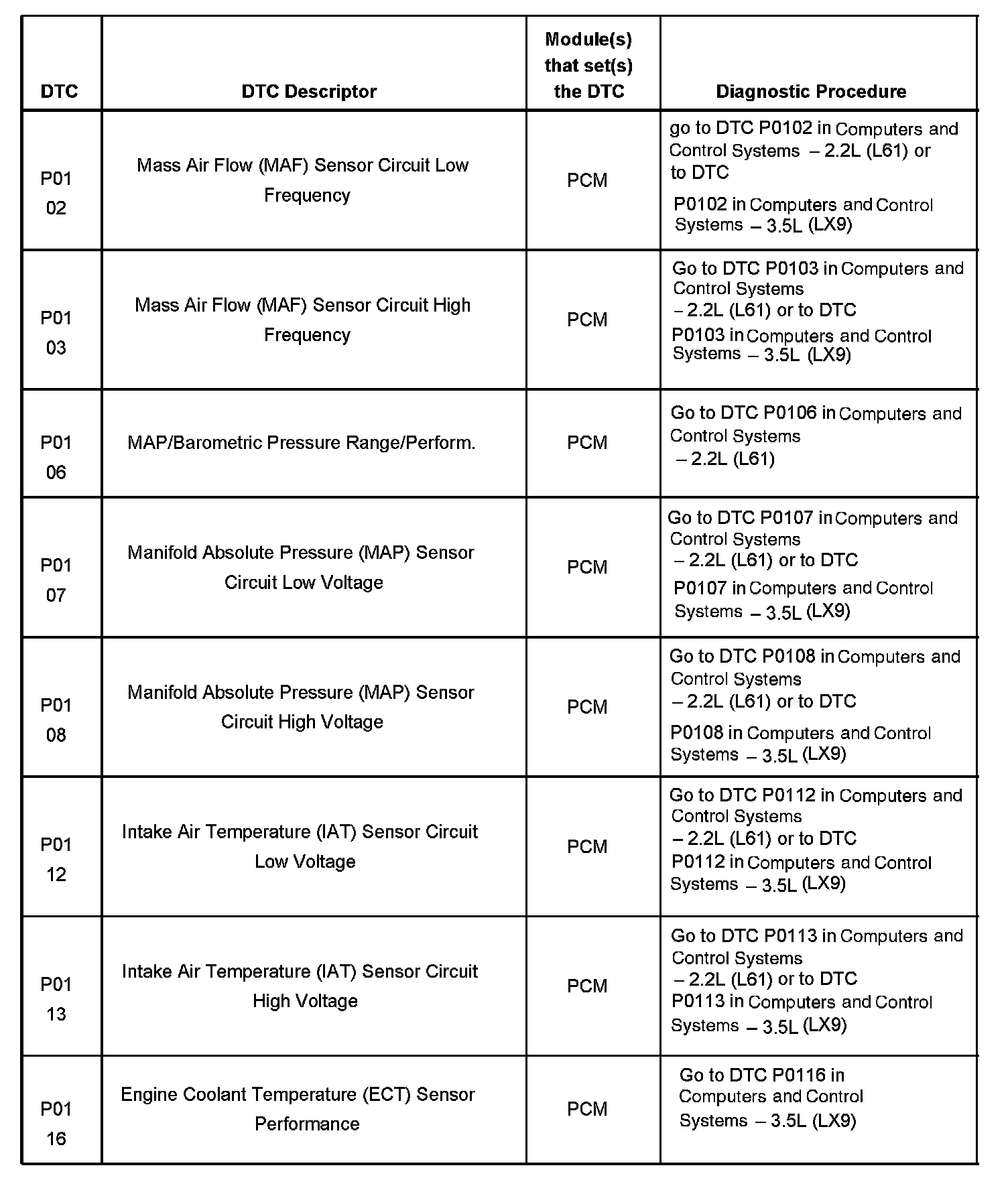

DTCs P0102 - P0116:

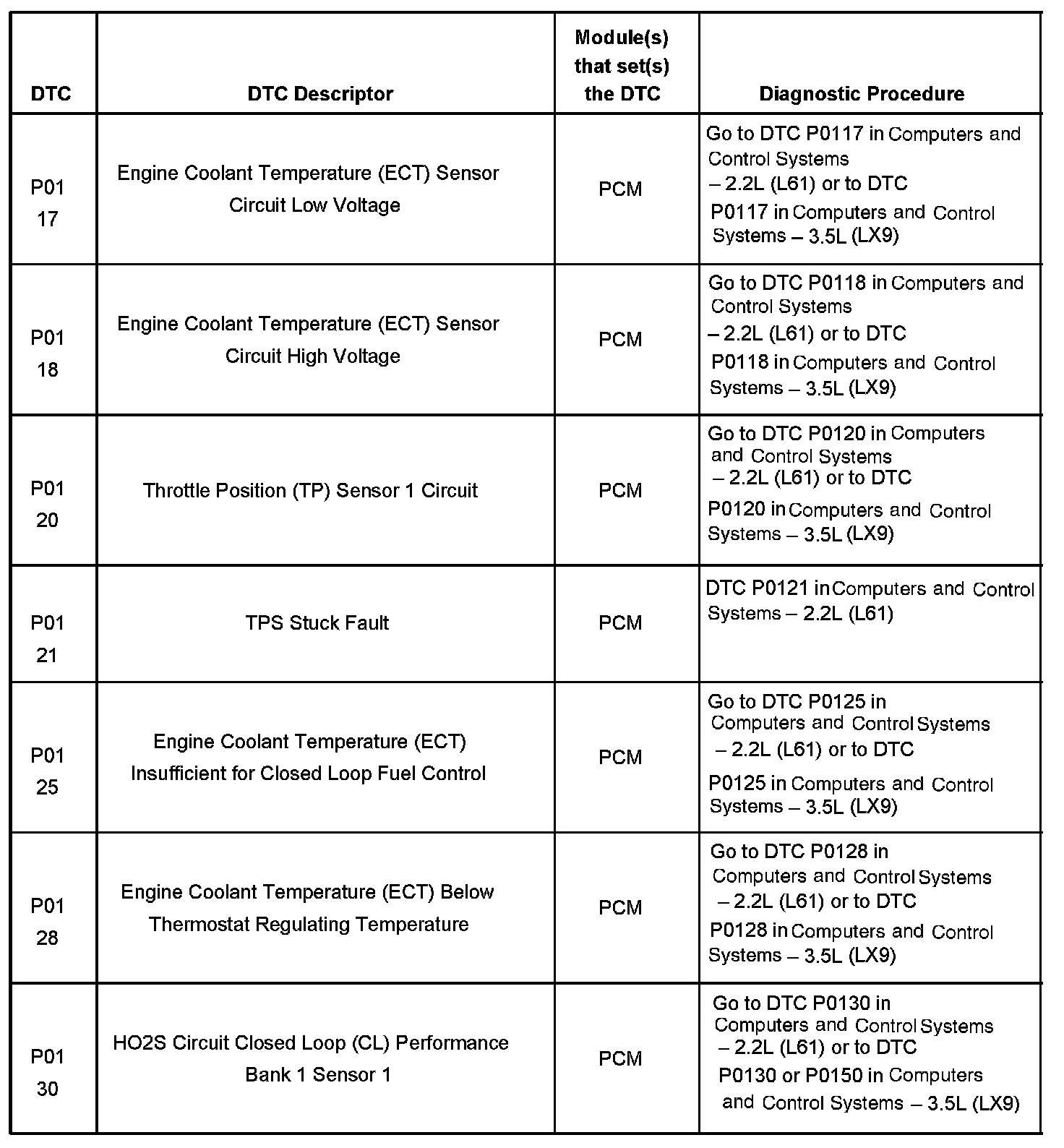

DTCs P0117 - P0130:

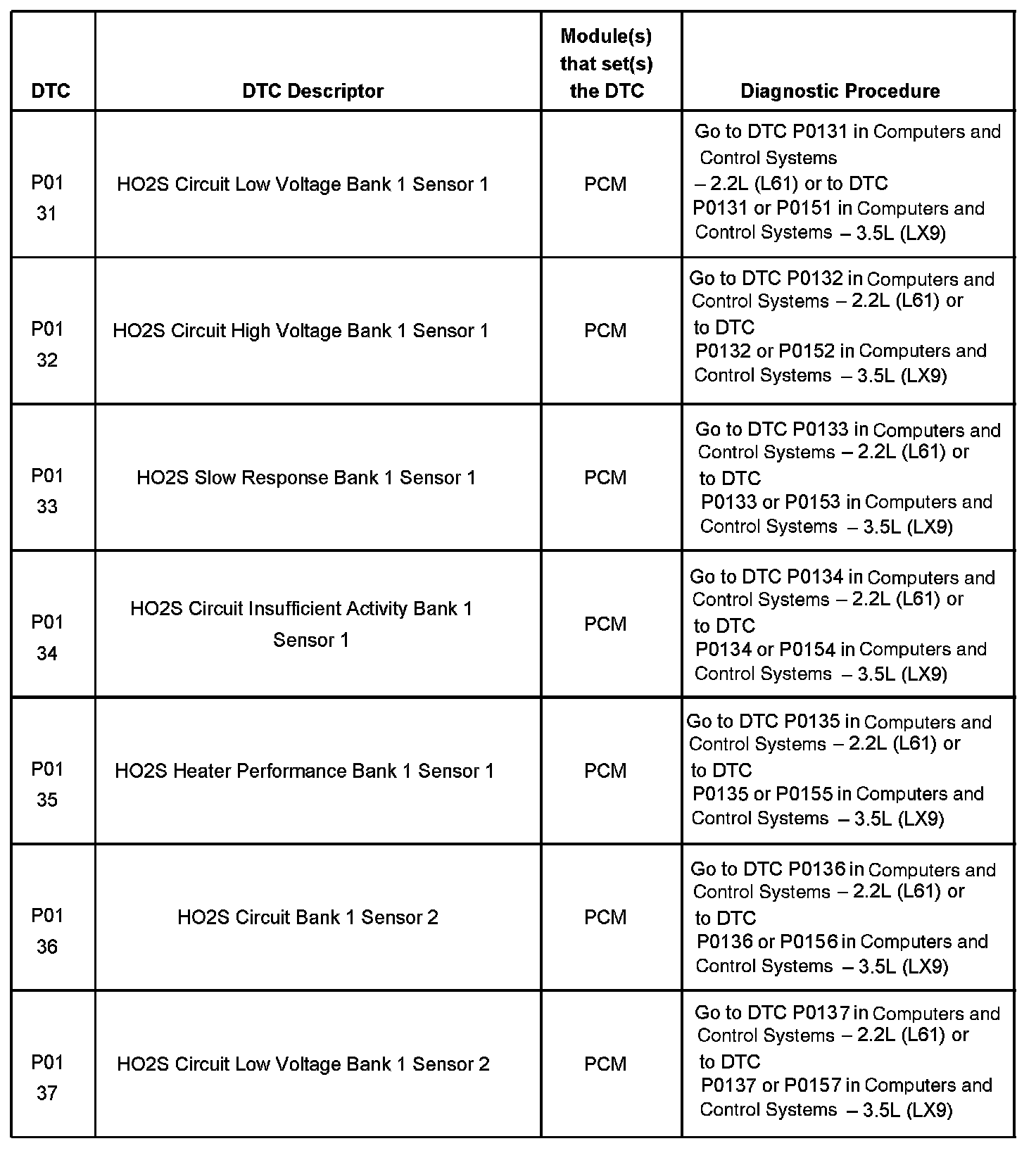

DTCs P0131 - P0137:

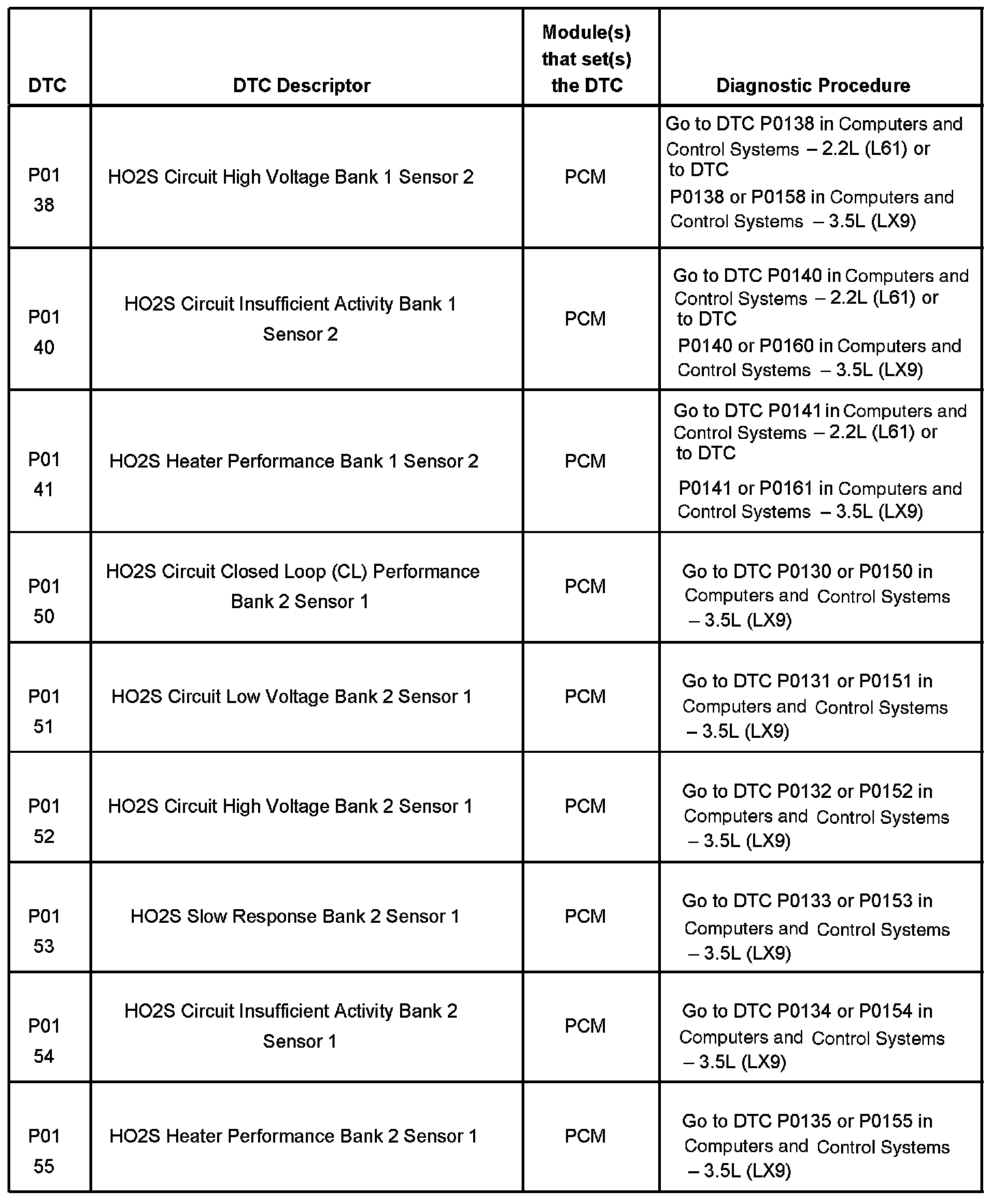

DTCs P0138 - P0155:

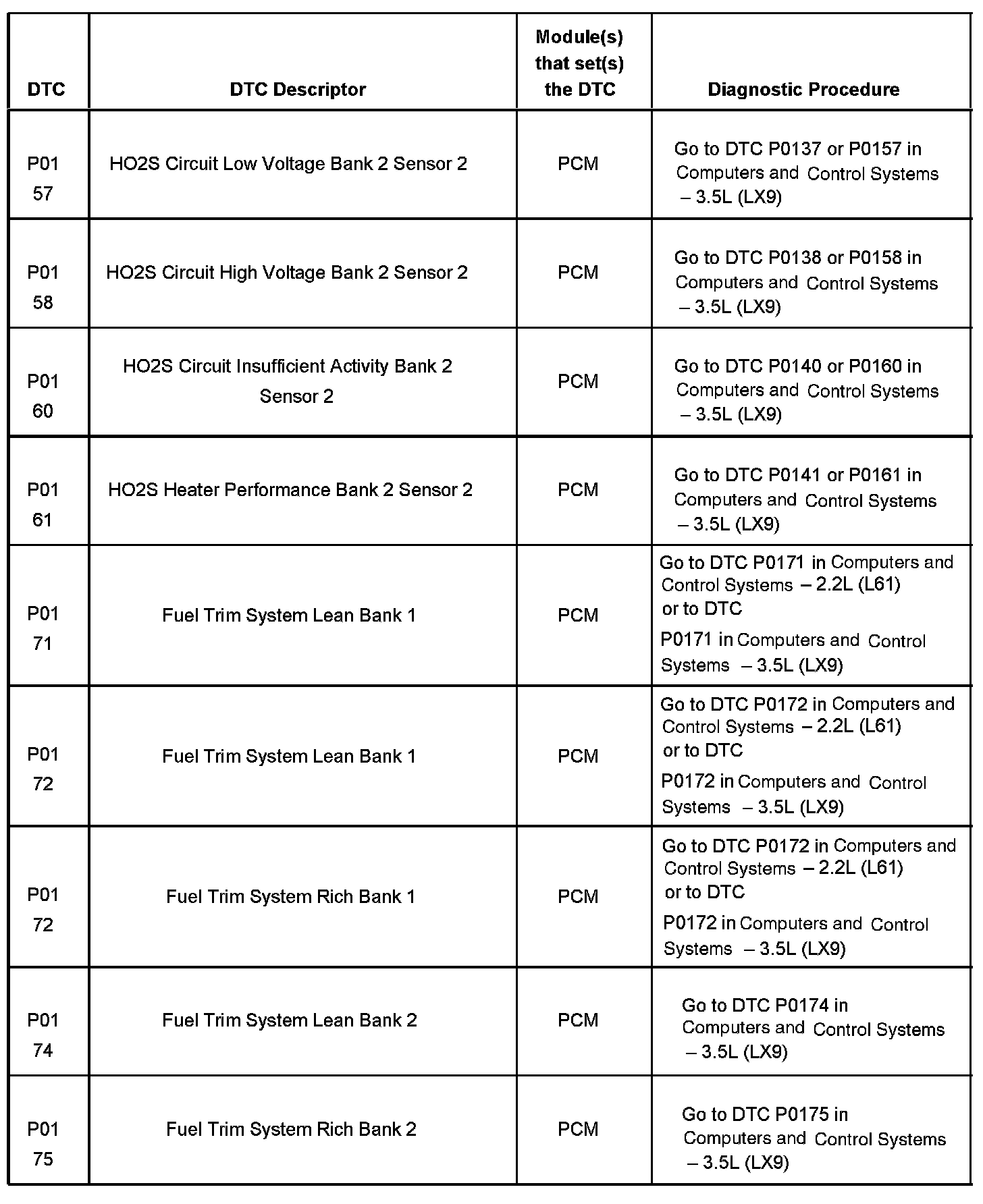

DTCs P0157 - P0175:

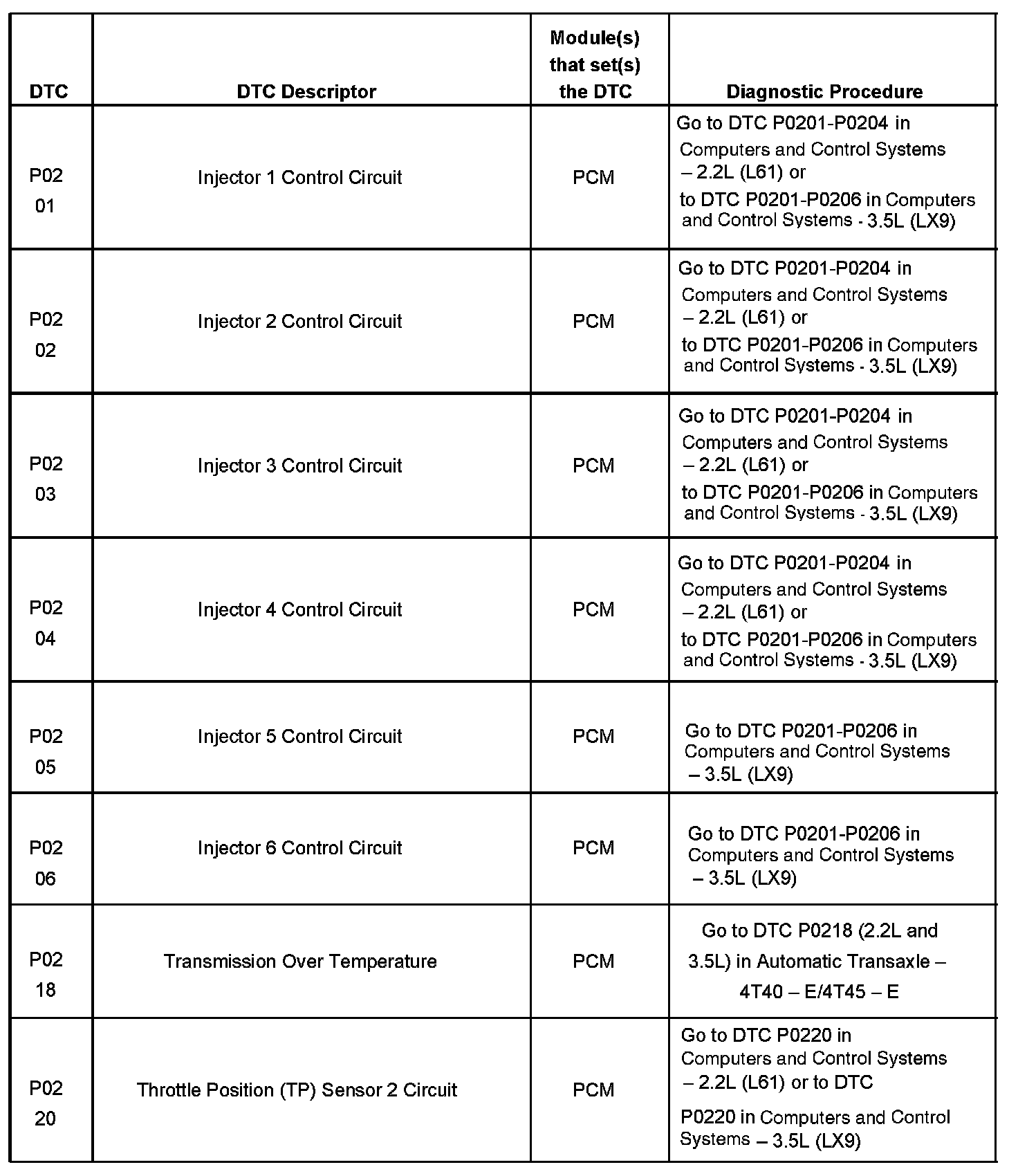

DTCs P0201 - P0220:

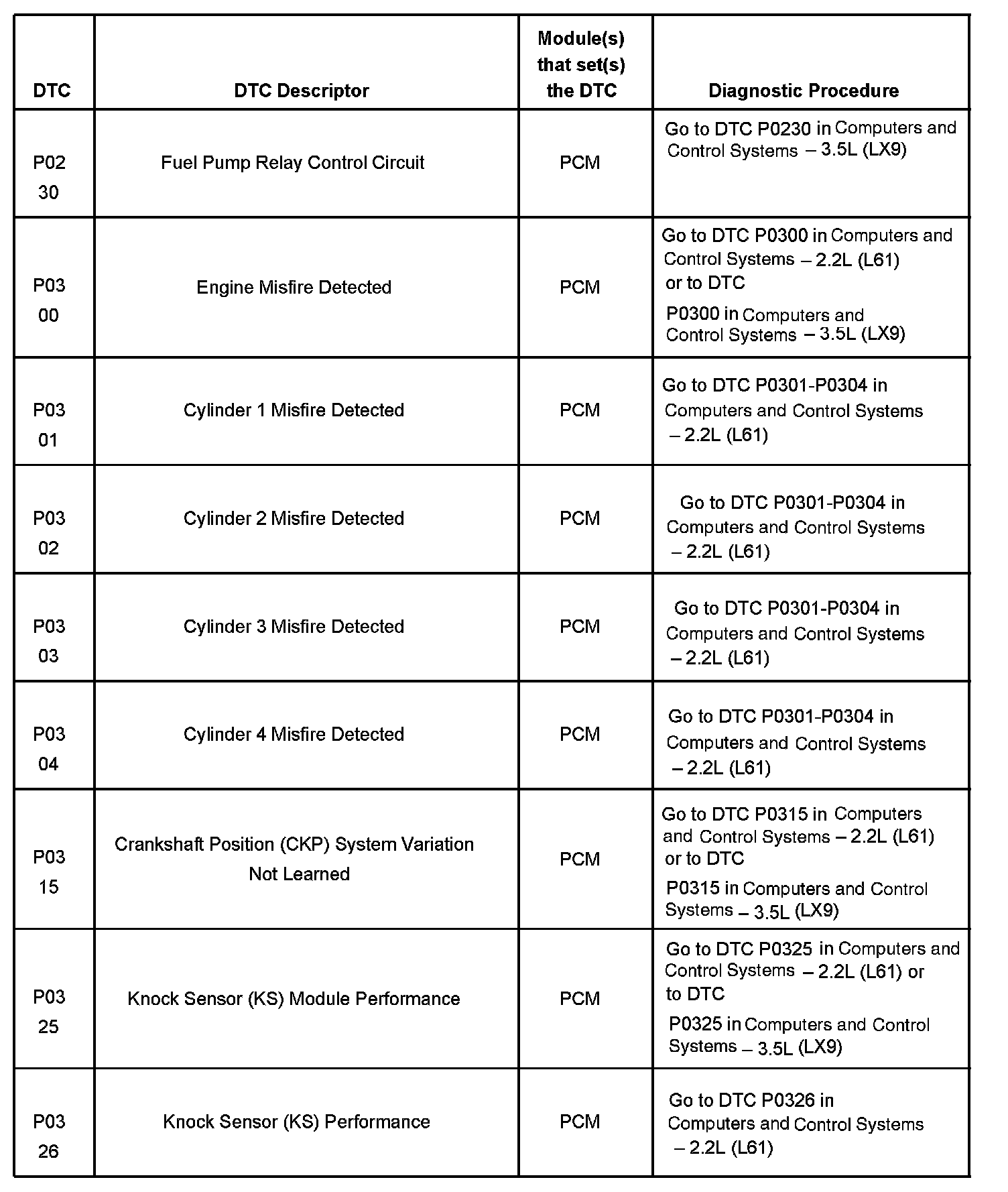

DTCs P0230 - P0326:

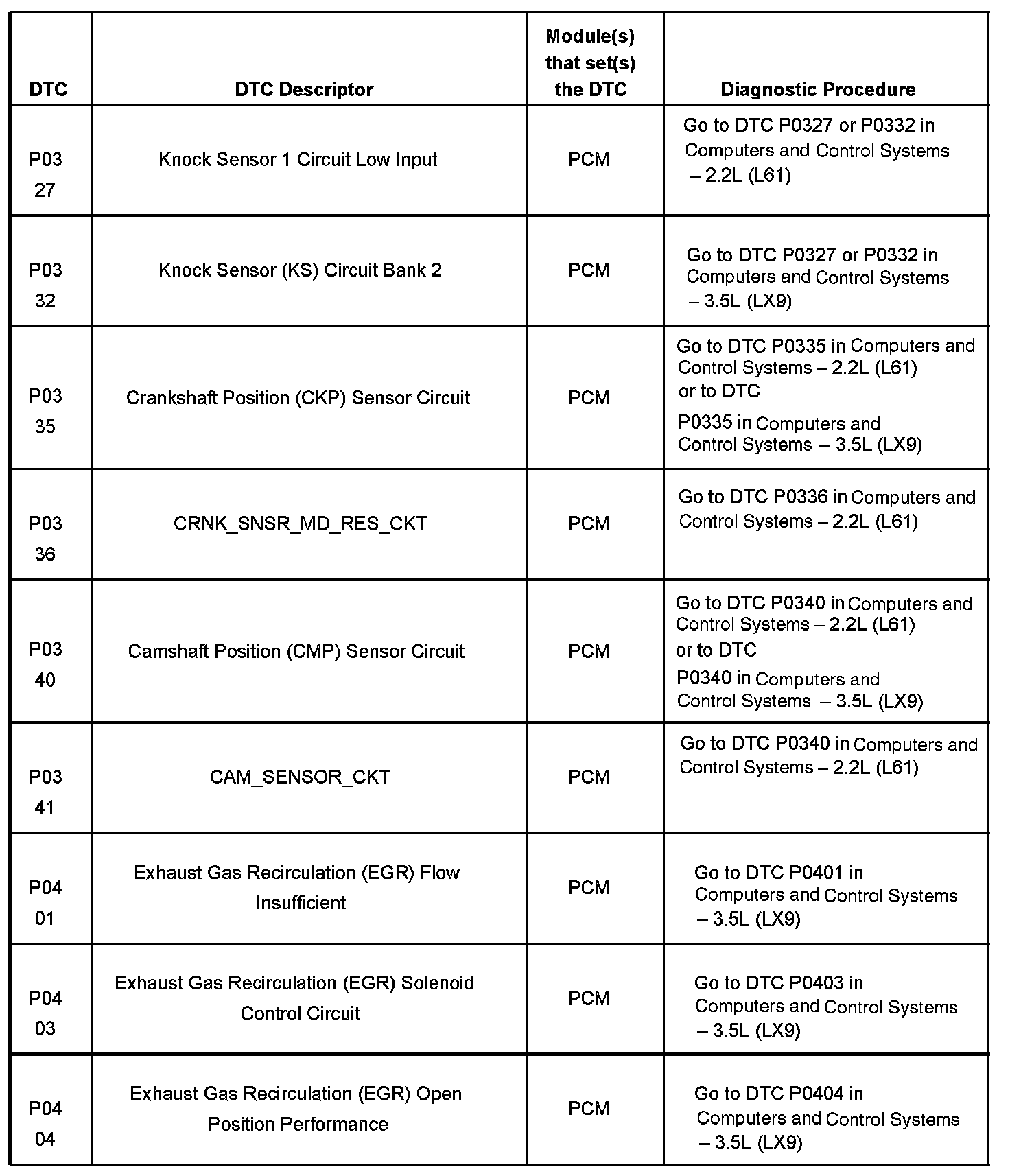

DTCs P0327 - P0404:

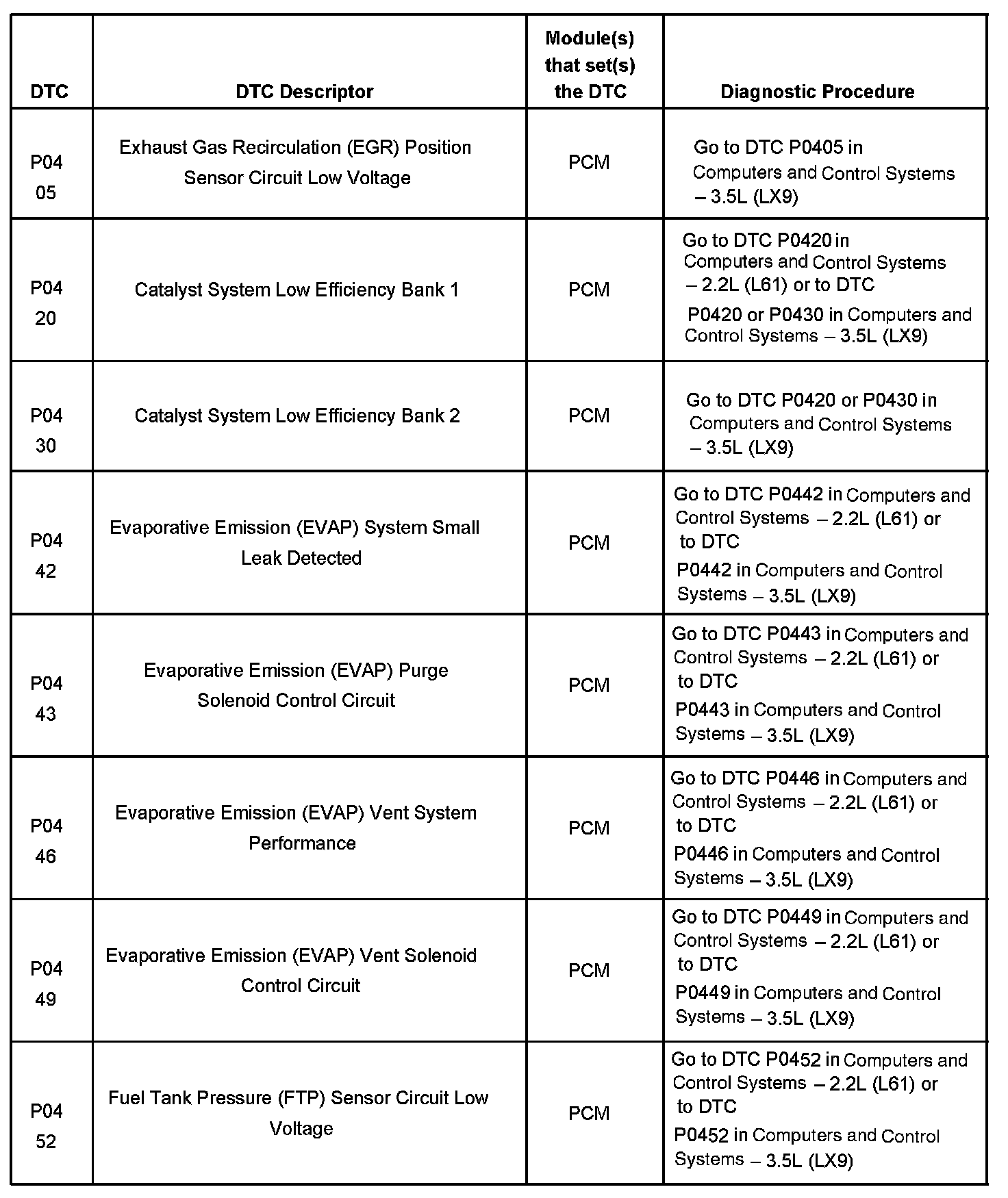

DTCs P0405 - P0452:

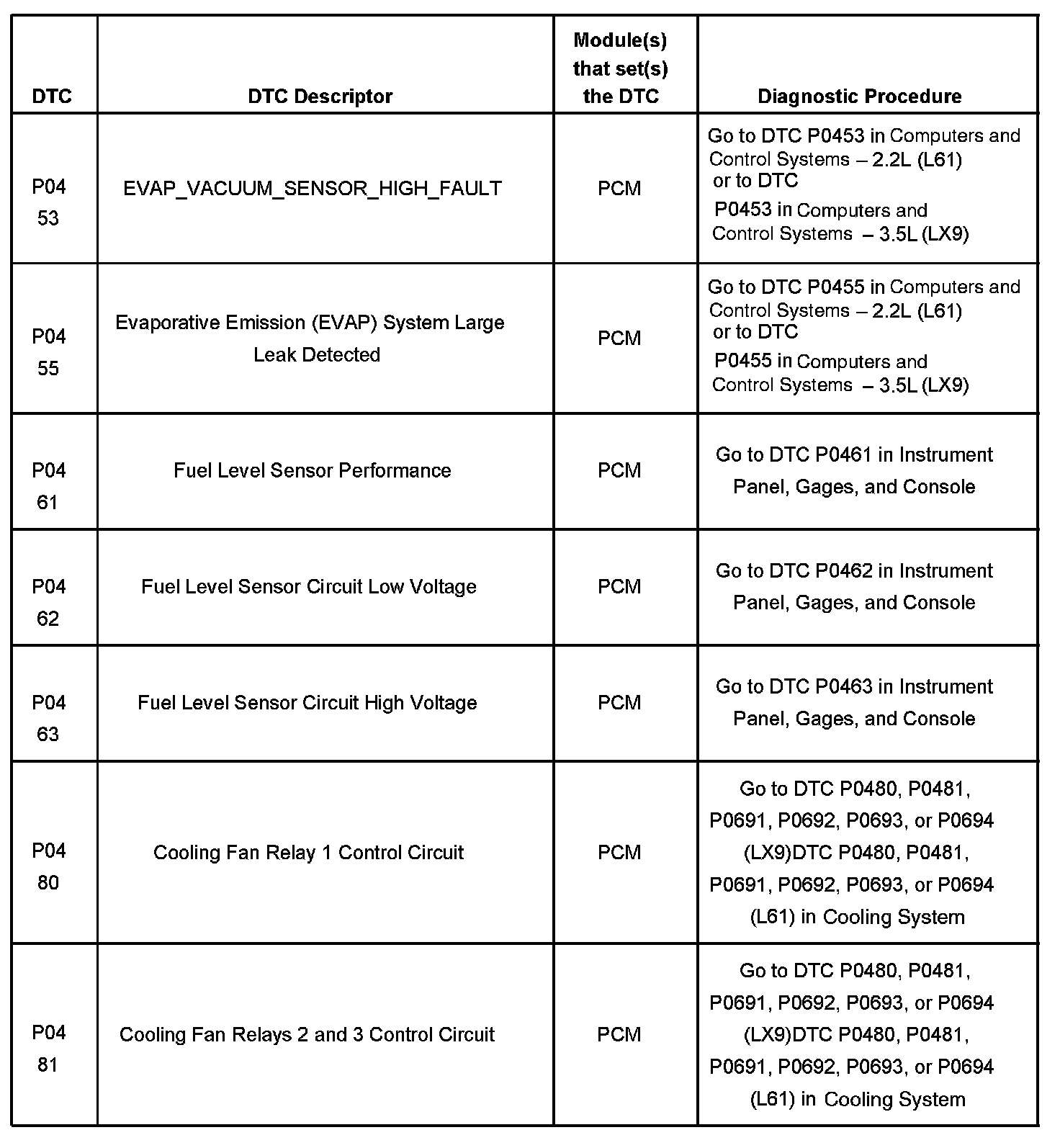

DTCs P0453 - P0481:

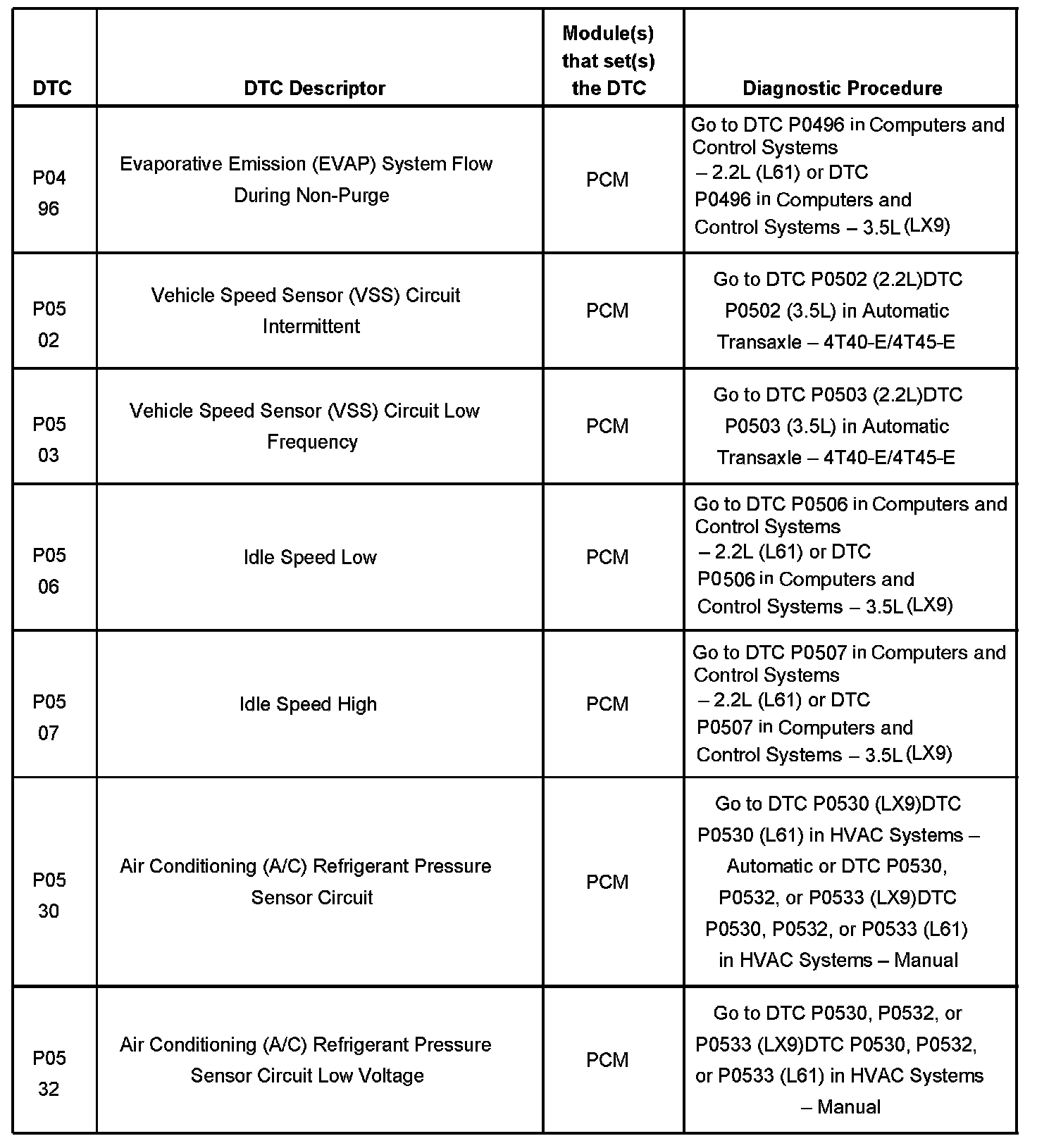

DTCs P0496 - P0532:

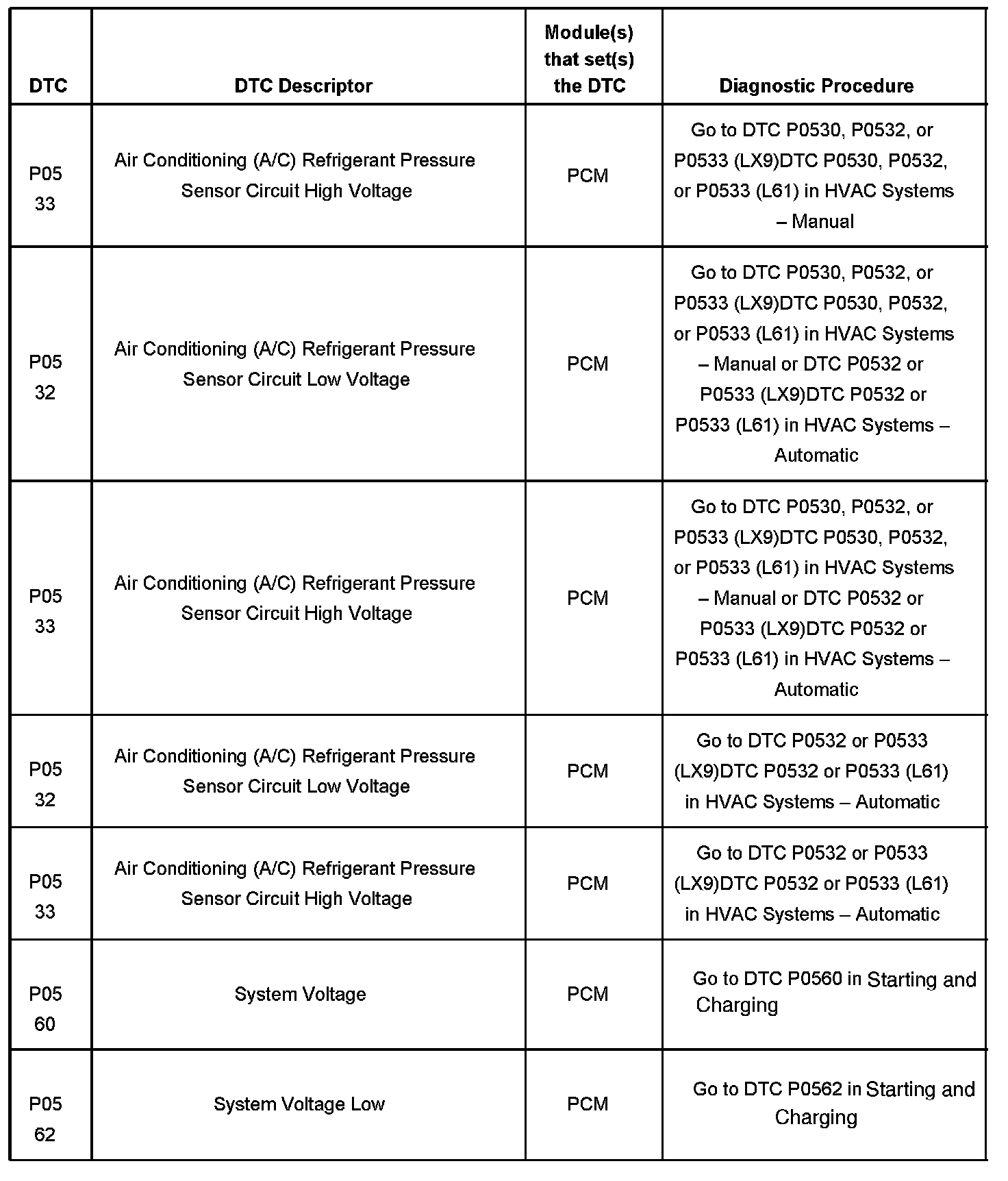

DTCs P0533 - P0562:

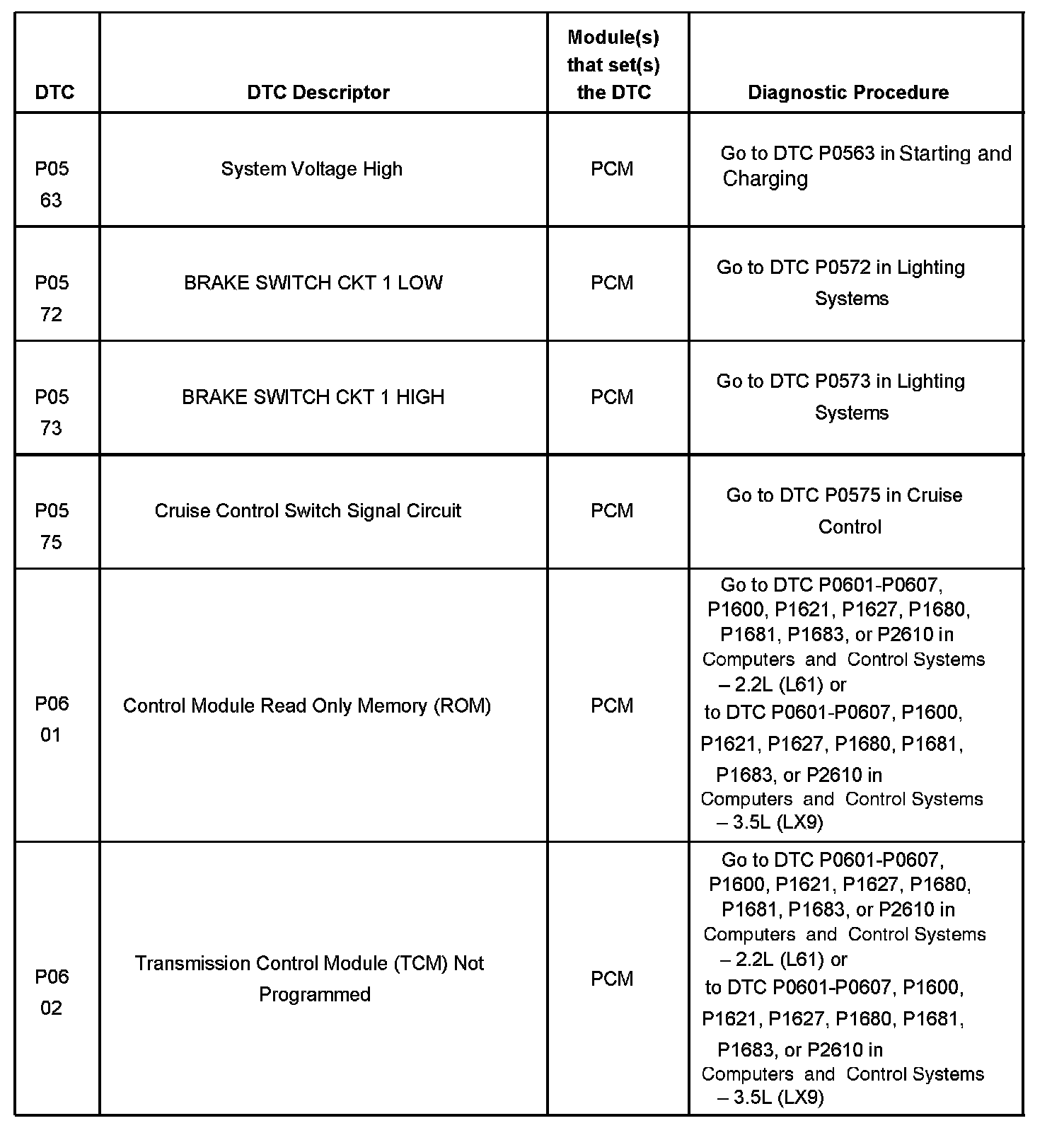

DTCs P0563 - P0602:

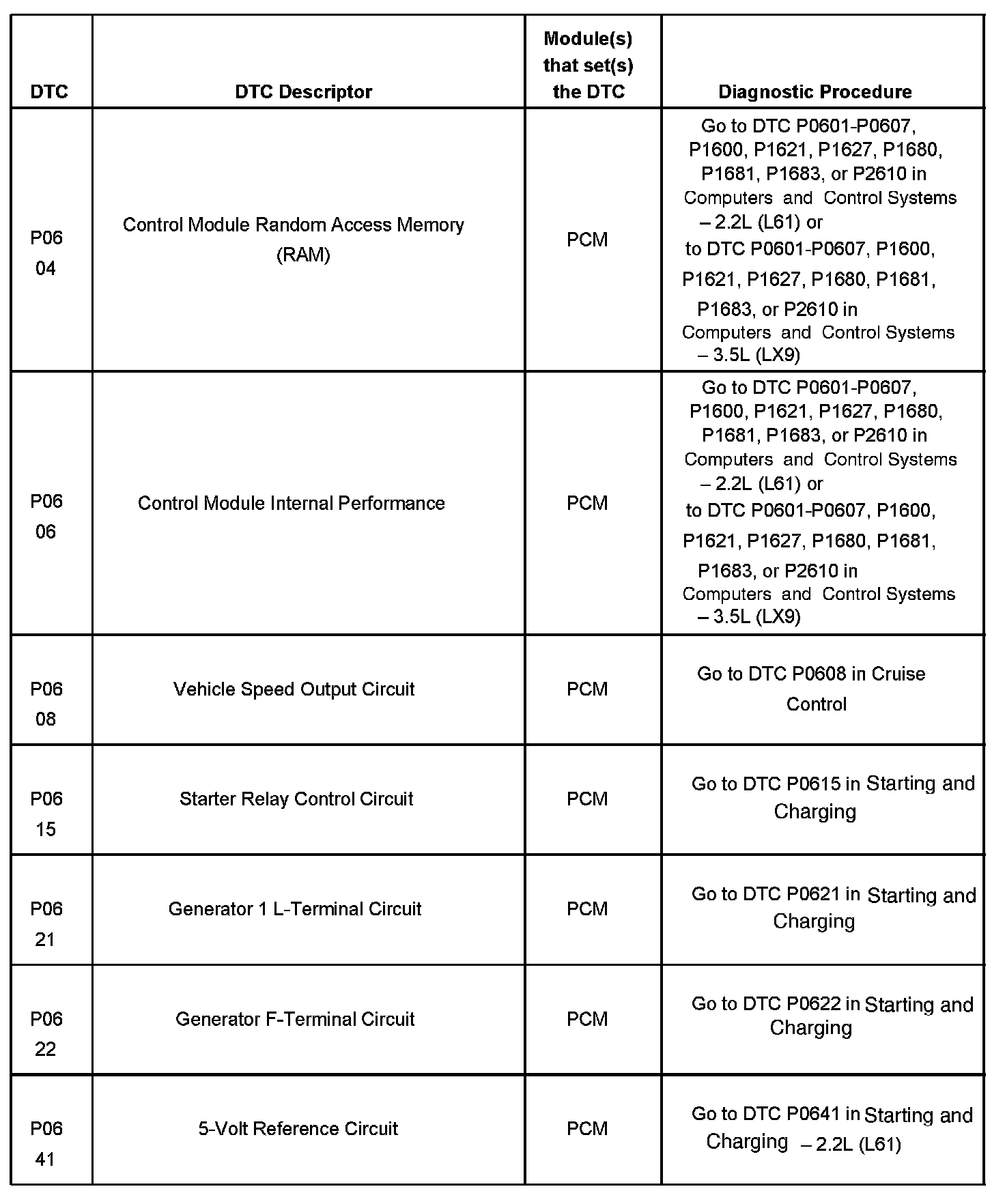

DTCs P0604 - P0641:

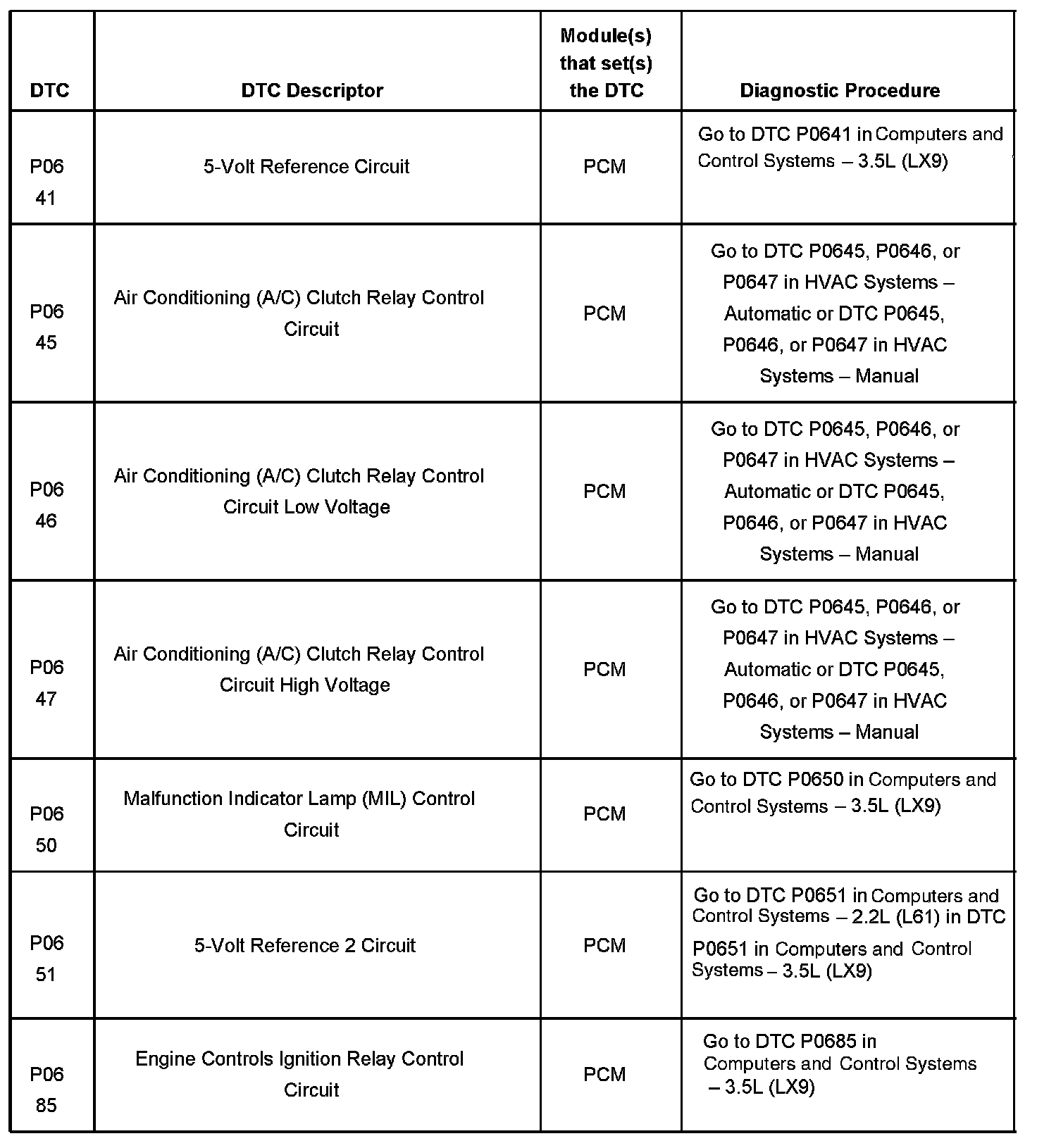

DTCs P0641 - P0685:

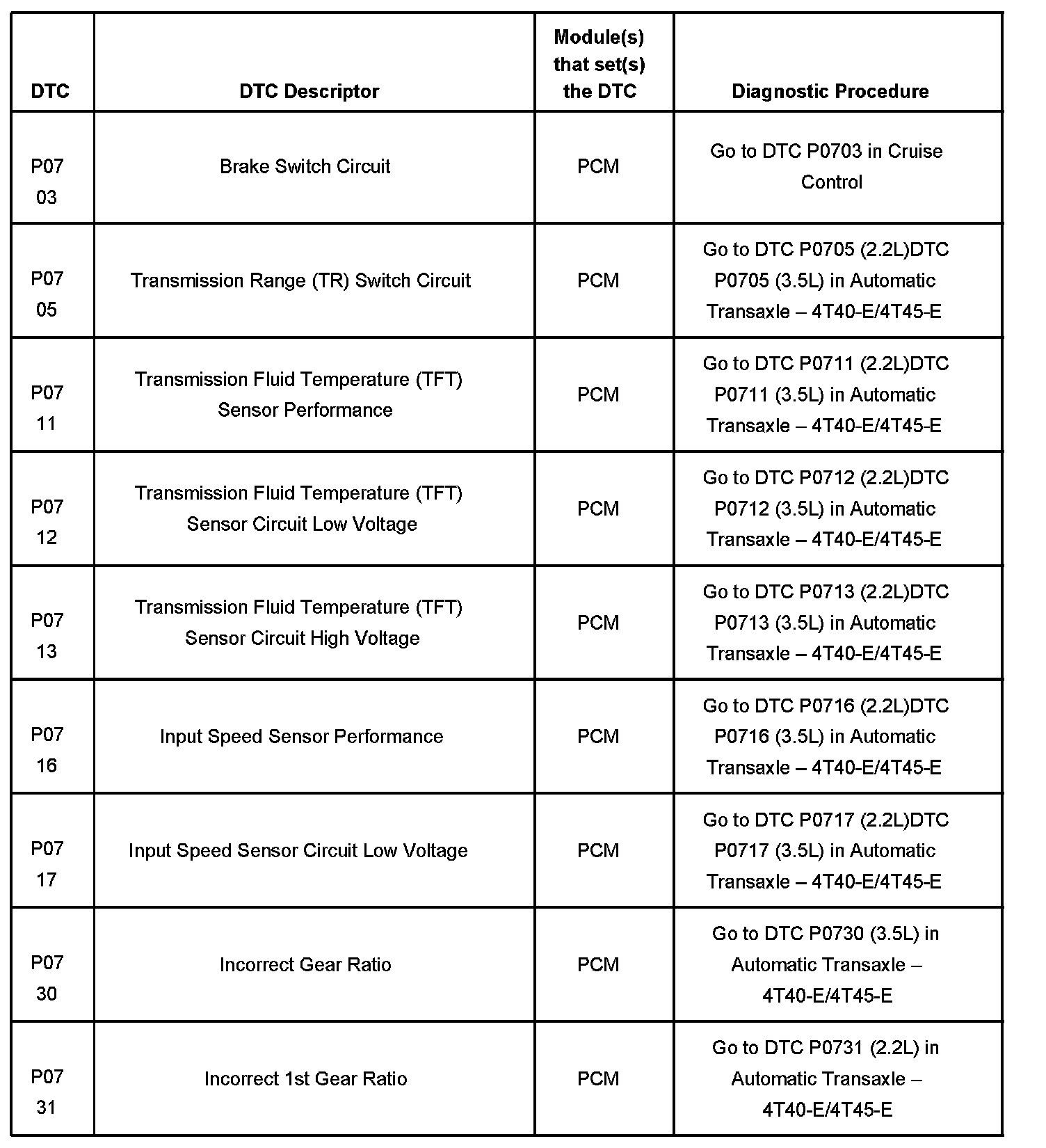

DTCs P0703 - P0731:

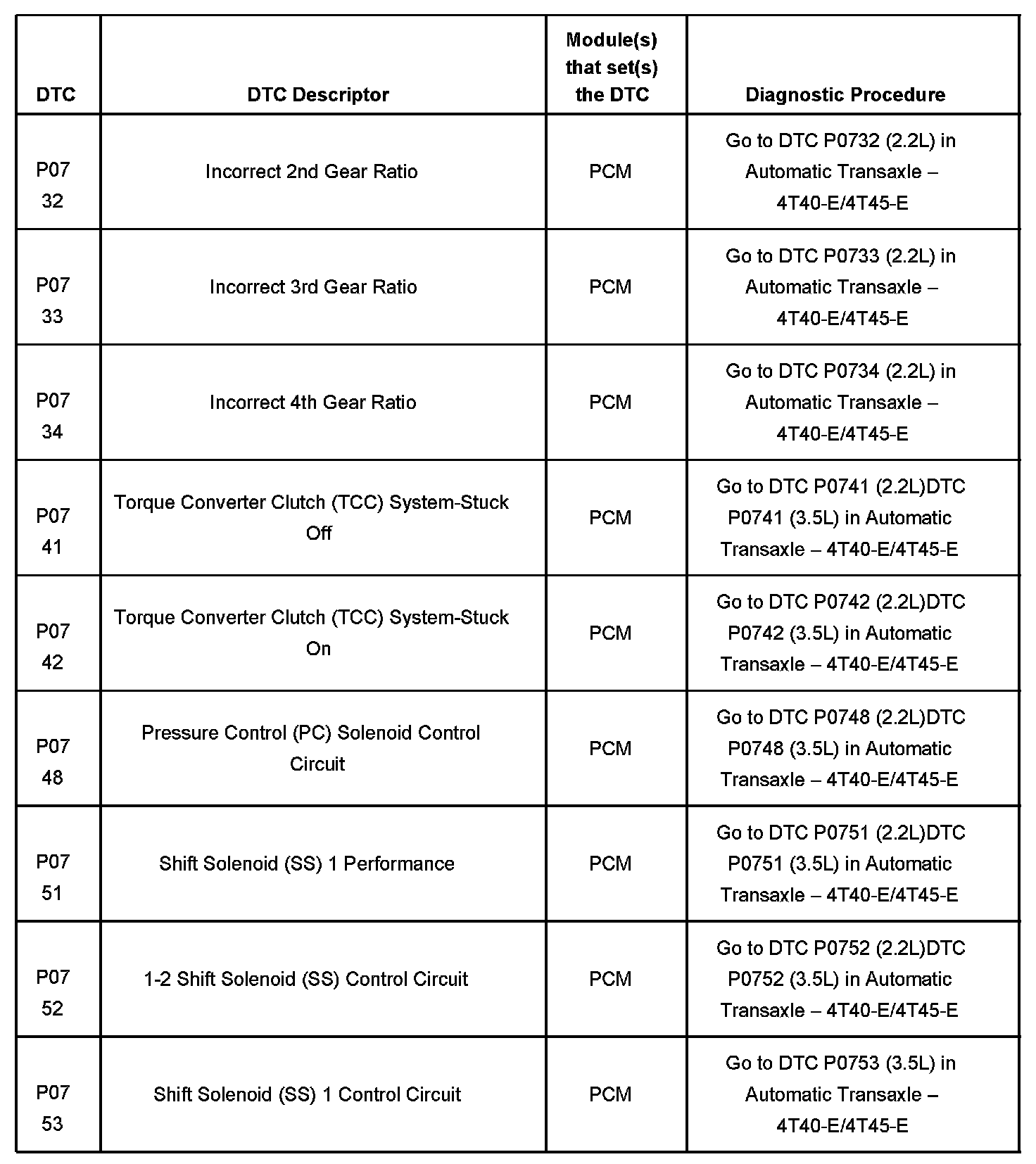

DTCs P0732 - P0753:

DTCs P0756 - P0976:

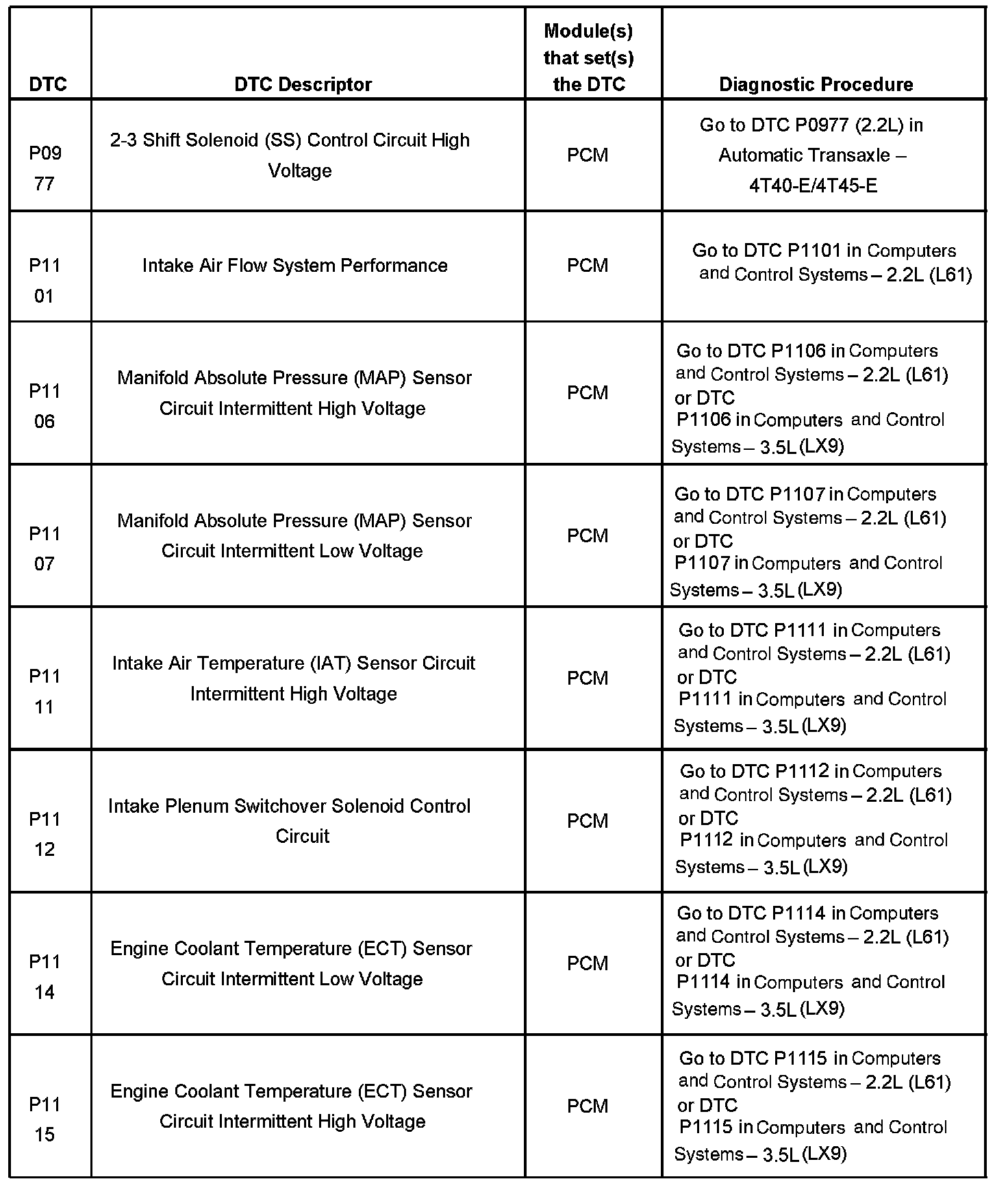

DTCs P0977 - P1115:

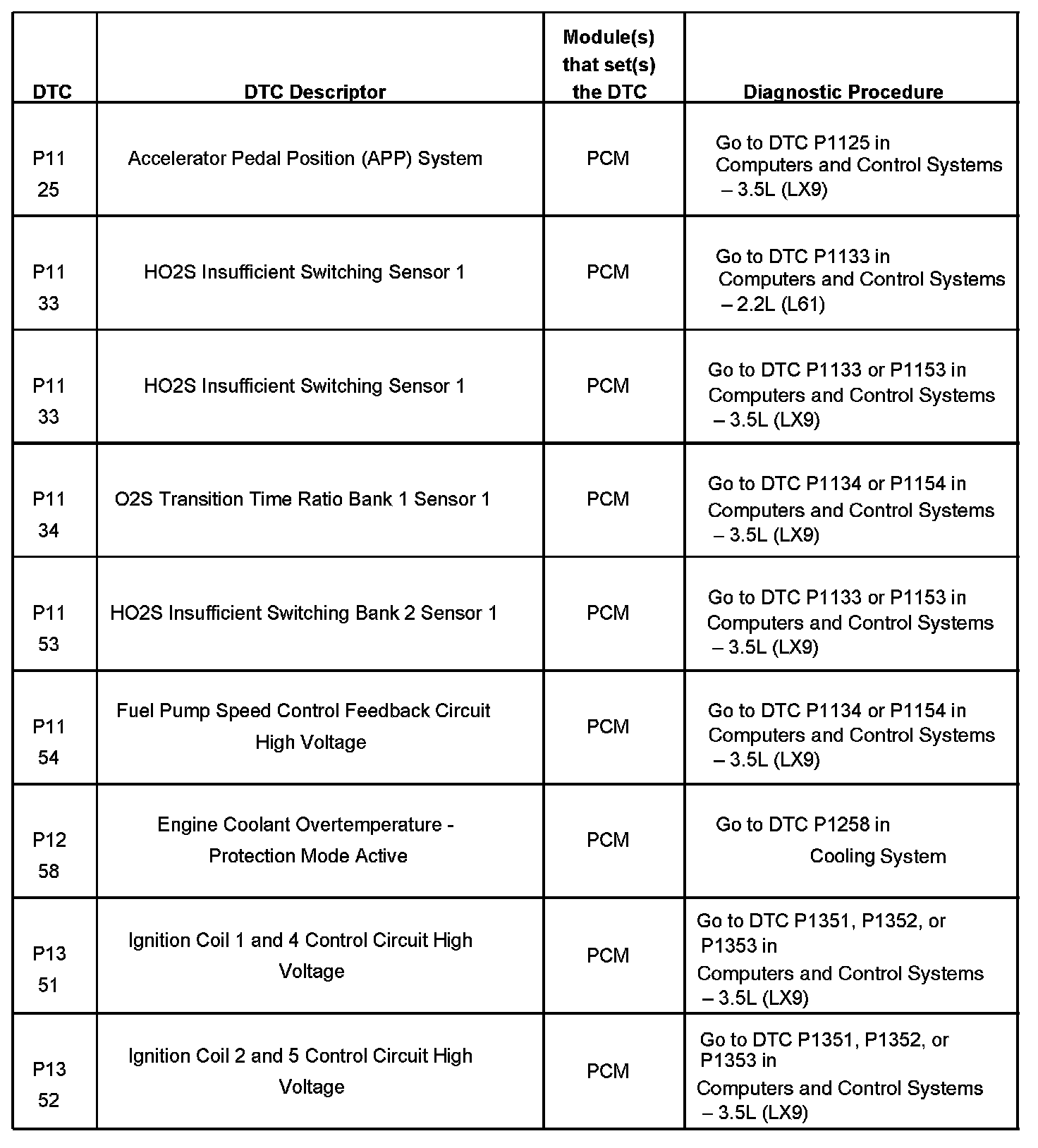

DTCs P1125 - P1352:

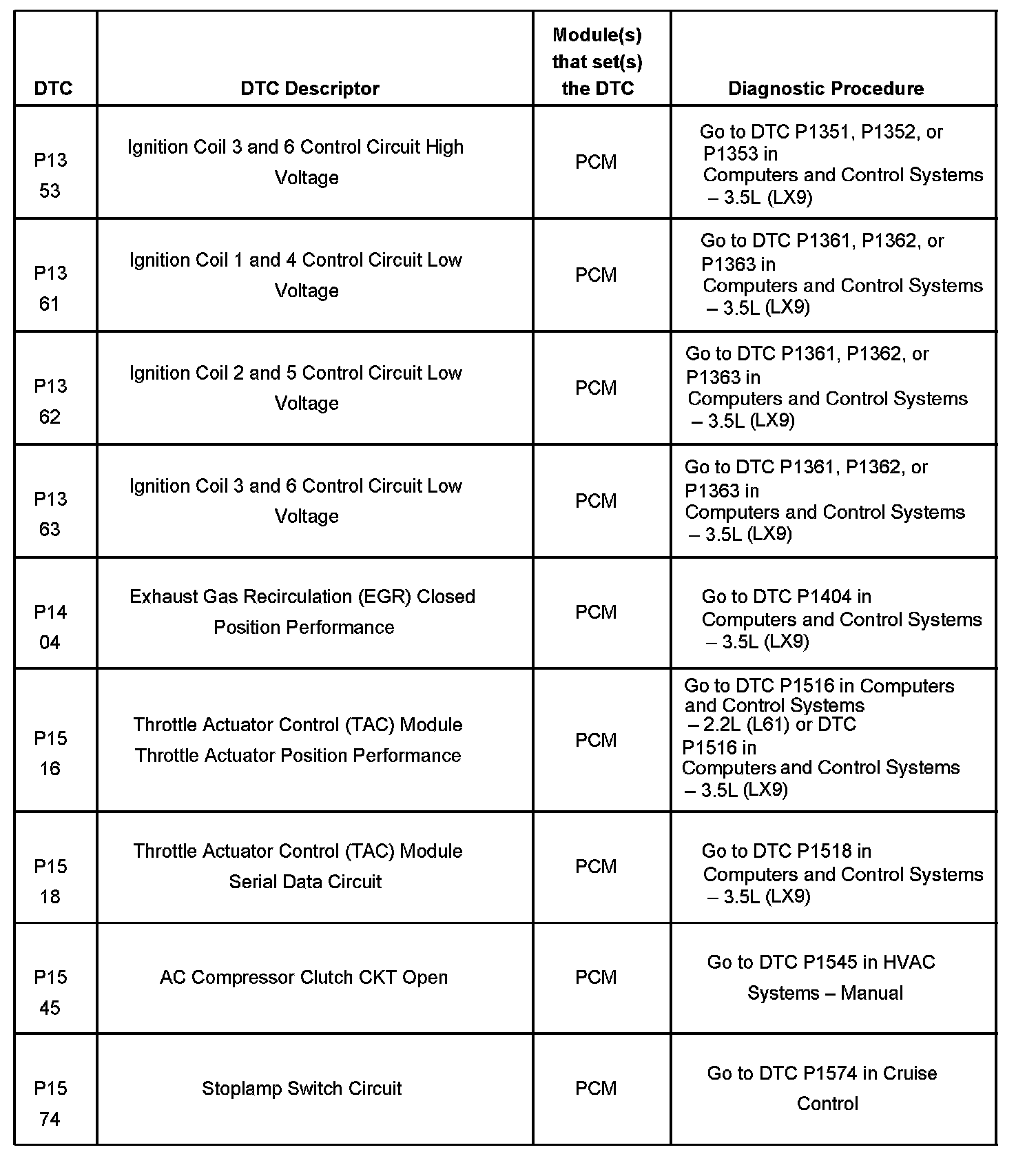

DTCs P1353 - P1574:

DTCs P1626 - P1810:

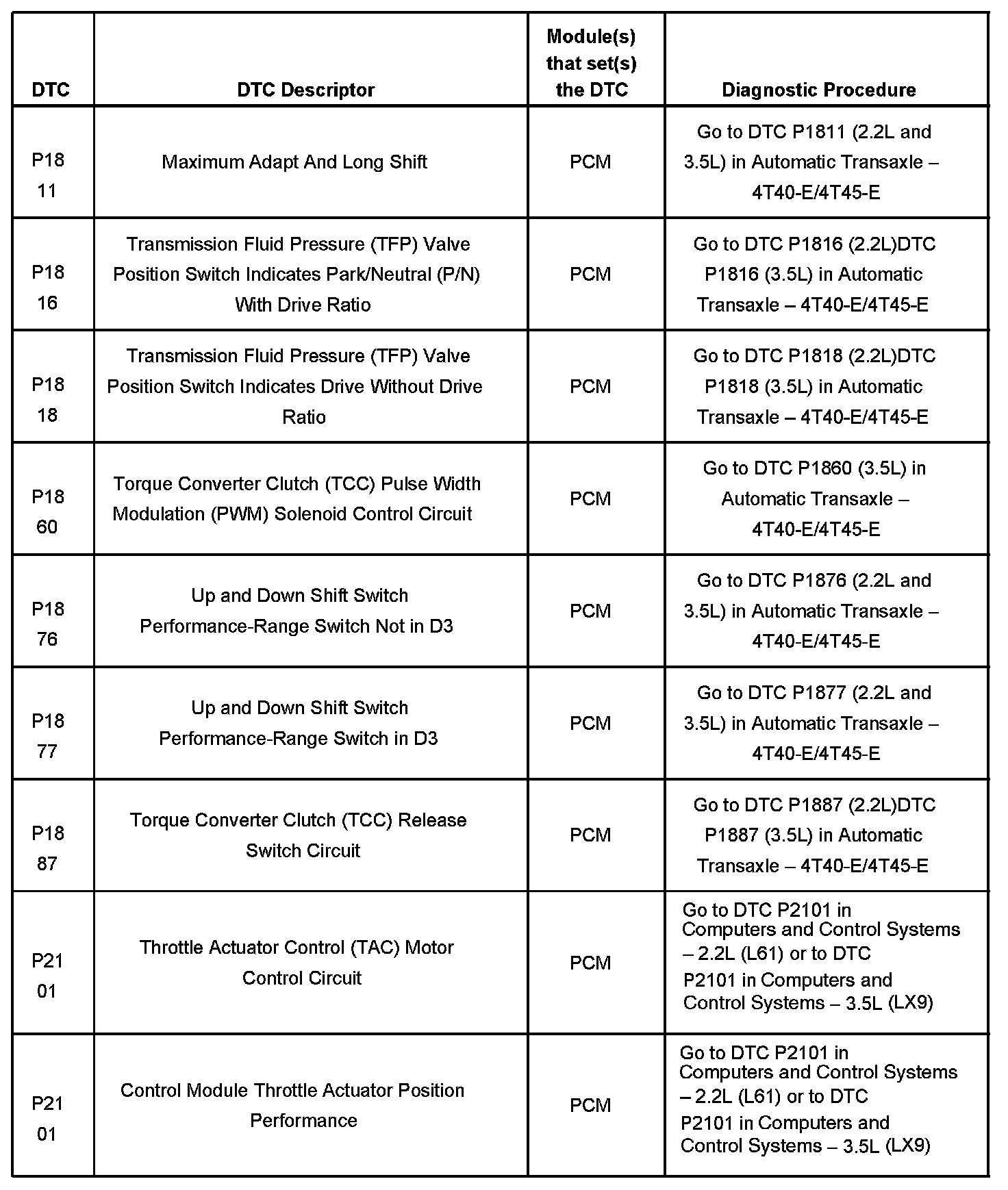

DTCs P1811 - P2101:

DTCs P2107 - P2176:

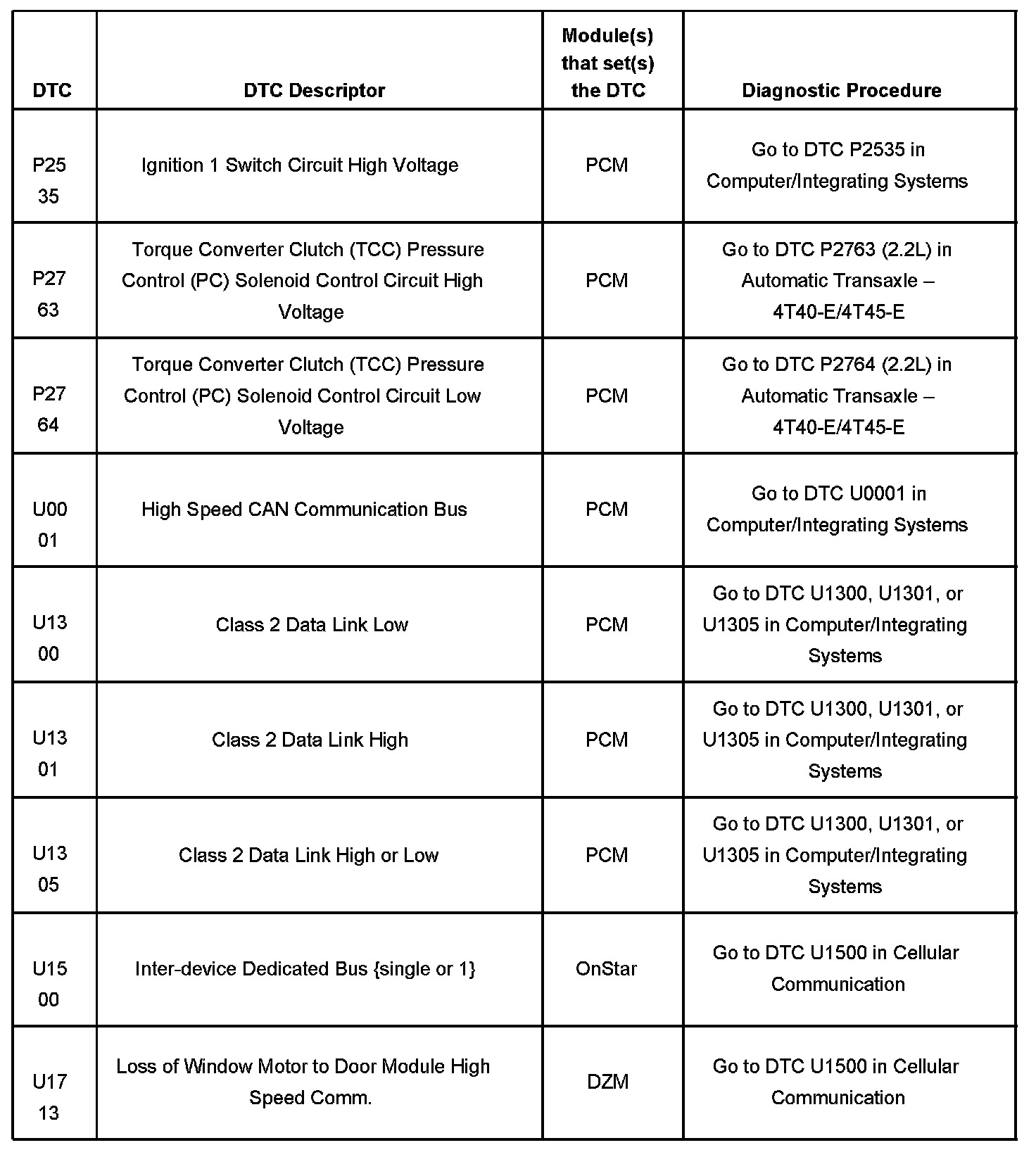

DTCs P2535 - U1713:

DTCs U2100 - U2109:

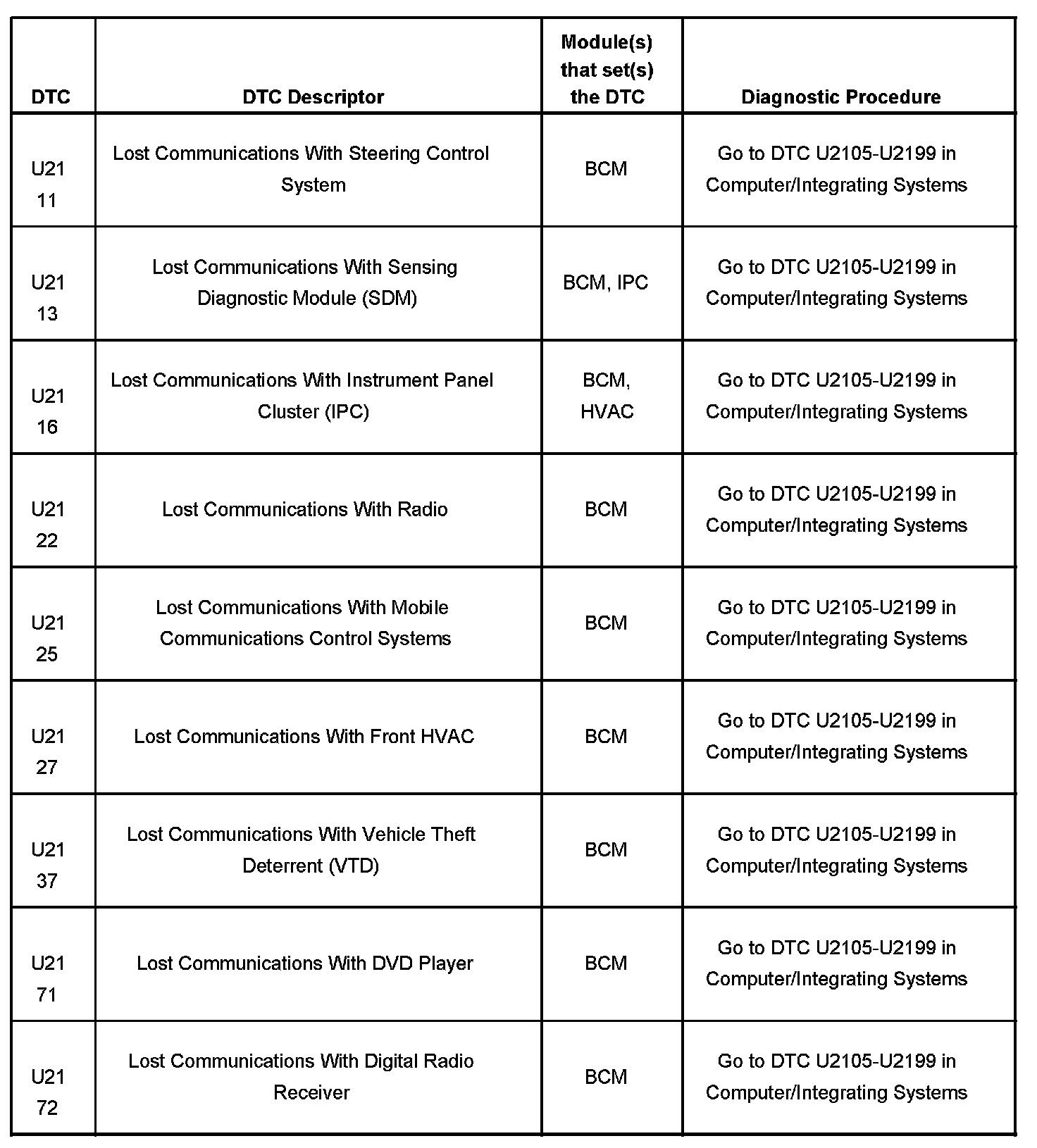

DTCs U2111 - U2172:

This master DTC list includes all DTCs in order by DTC number. The GMLAN modules also support the DTC Symptom information.
