C0569

DTC C0569

Circuit Description
After replacing the power steering control module (PSCM) it must be setup with the correct steering tuning.

DTC Descriptor





This procedure supports the following DTC:
DTC C0569 System Configuration Error

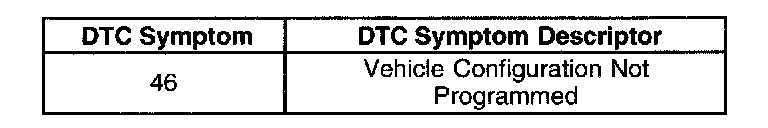

This vehicle has DTCs which include DTC symptoms.

Conditions for Running the DTC
The ignition is ON

Conditions for Setting the DTC
The PSCM has not undergone the steering tuning selection procedure.

Action Taken When the DTC Sets
^ DTC C0569 46 is stored in memory.
^ The DIC displays the POWER STEERING warning message.
^ The PSCM defaults to steering tuning 1.

Conditions for Clearing the DTC
^ A current DTC will clear after the PSCM has been setup with the correct steering tuning.
^ A history DTC will clear after 100 consecutive malfunction free ignition cycles from when the PSCM has been setup.
^ Using a scan tool

Diagnostic Aids
A newly replaced PSCM will set DTC C0569 46 on its initial ignition On cycle.

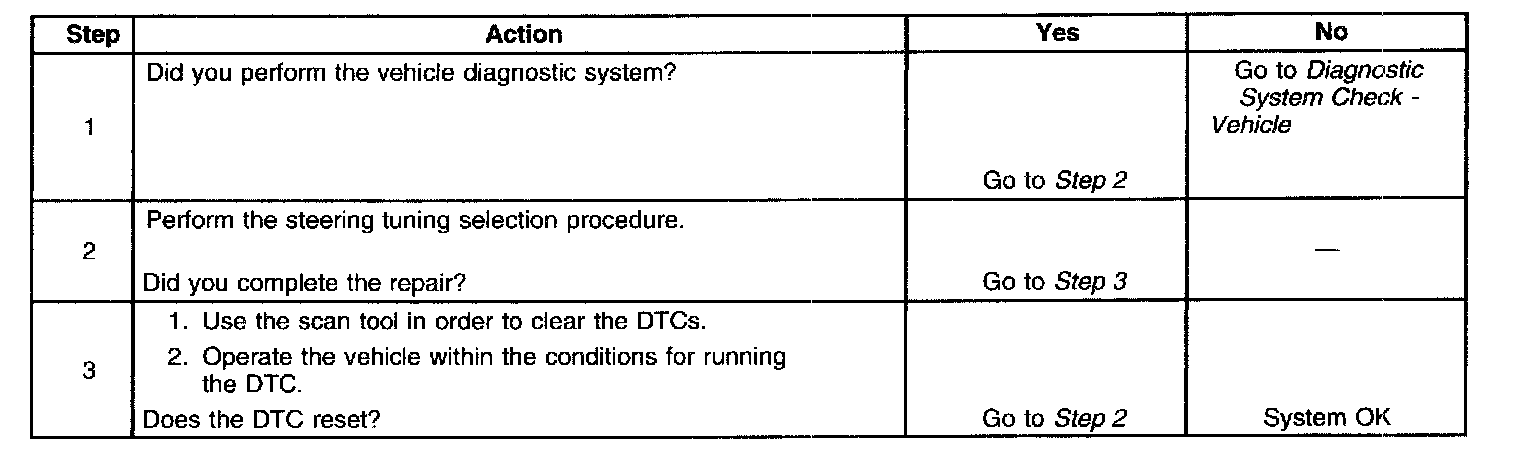

Steps 1-3:

DTC C0569
