Output Shaft Seal Replacement
Output Shaft Seal ReplacementTools Required
^ J46405 Output Shaft Seal Installer
Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle lifting
2. Remove the appropriate rear tire and wheel assembly.
3. Remove the appropriate drive shaft. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.
Important: Take care not to damage any sealing surfaces when removing the differential output shaft seal.

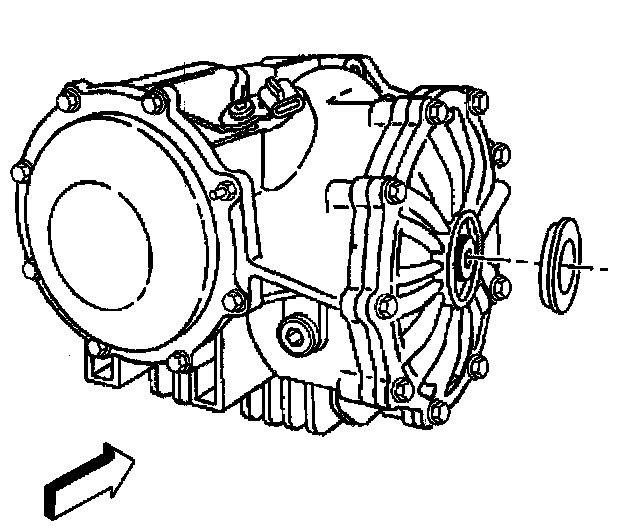

4. Remove the differential output shaft seal.
Installation Procedure

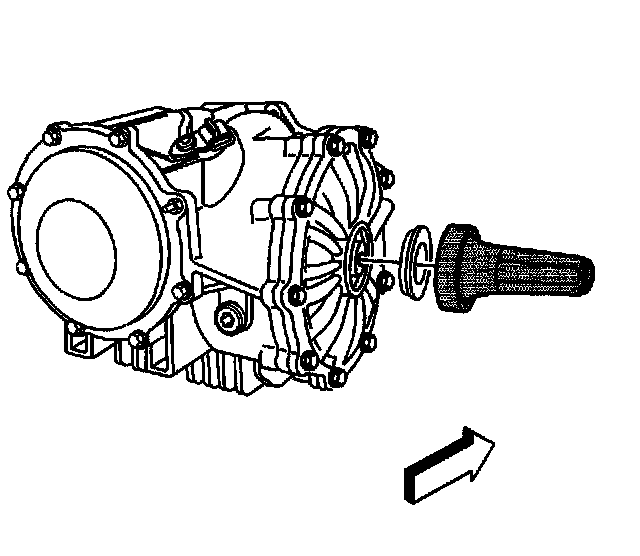

1. Using the J46405, install the differential output shaft seal.
2. Install the drive shaft. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.
3. Install the rear tire and wheel assembly.
4. Lower the vehicle.
