Pilot Bearing: Service and Repair

Pilot Bearing Replacement

^ Tools Required
- J 23907 Clutch Pilot Bearing Remover

Removal Procedure

Notice: DO NOT use grease under pressure to force the pilot bearing from the crankshaft or engine damage may result.

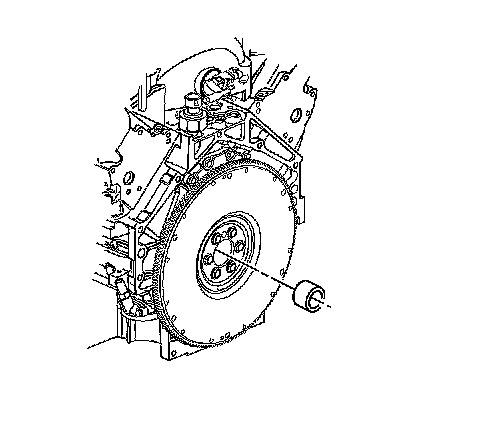

1. Remove the clutch assembly.

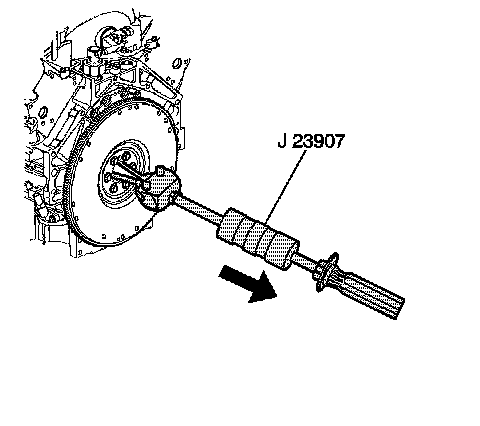

2. Using the J 23907, remove the clutch pilot bearing.

Installation Procedure





1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch assembly.
