Front

Stabilizer Shaft Link Replacement

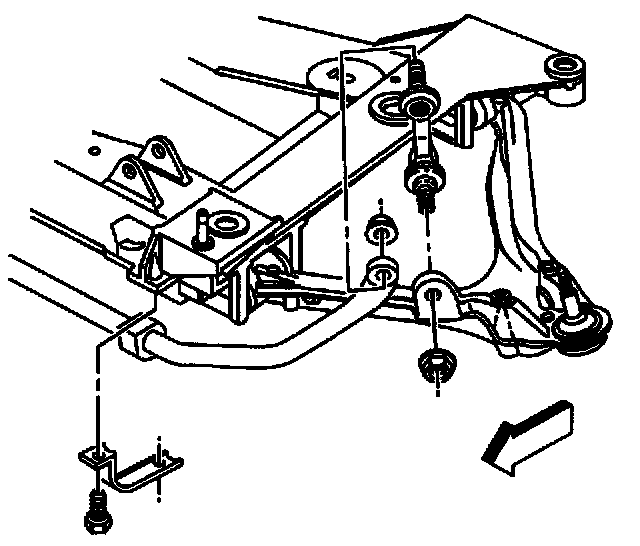

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the stabilizer shaft link nuts.
4. Remove the stabilizer shaft link from the stabilizer shaft and lower control arm.

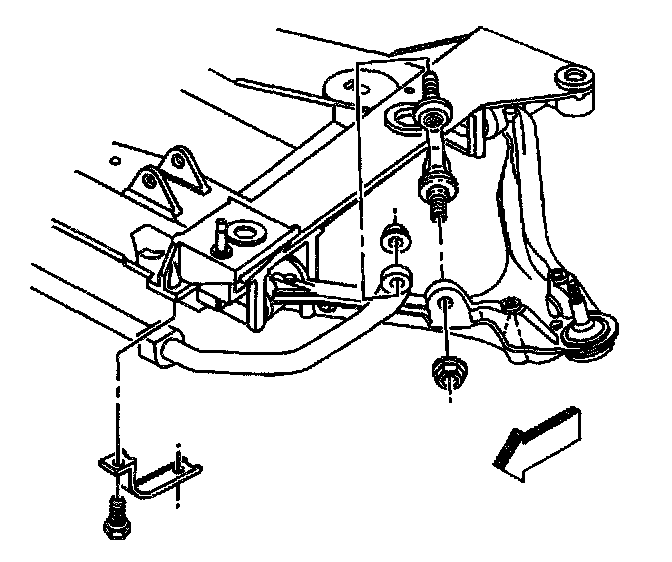

Installation Procedure





1. Install the stabilizer shaft link into the stabilizer shaft and lower control arm.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the stabilizer shaft link nuts.
^ Tighten the stabilizer shaft link nuts to 72 Nm (53 ft. lbs.).
3. Install the tire and wheel assembly.
4. Lower the vehicle.
