Rear

Stabilizer Shaft Insulator Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assemblies.

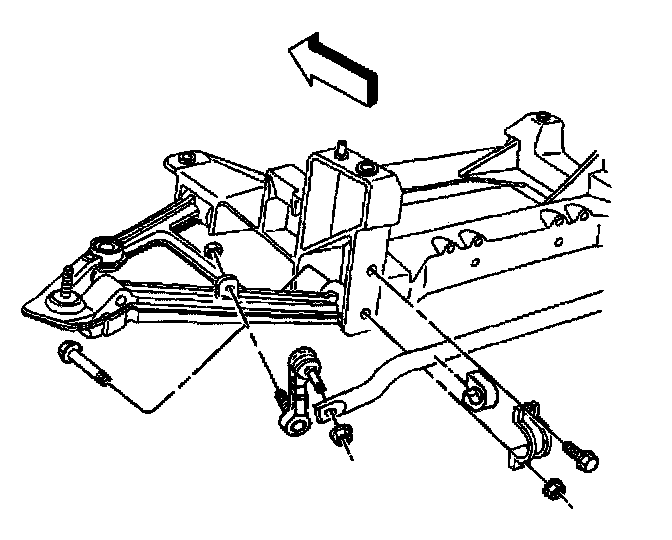

3. Remove the stabilizer shaft clamps, bolts and nuts retaining the shaft to the crossmember.
4. Remove the stabilizer shaft insulators from the stabilizer shaft.

Installation Procedure





1. Install the stabilizer shaft insulators to the stabilizer shaft.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the stabilizer shaft insulator clamps to the stabilizer shaft and the crossmember.
- Tighten the stabilizer shaft insulator clamp bolts to 65 Nm (49 ft. lbs.).
- Tighten the stabilizer shaft insulator clamp nuts to 95 Nm (70 ft. lbs.).
3. Install the tire and wheel assemblies.
4. Lower the vehicle.
