Ball Joint: Service and Repair

Upper Ball Joint Replacement

- Tools Required
- J 9519-E Ball Joint Remover Kit
- J 28685 Upper Ball Joint Installer
- J 21474-5 Upper Ball Joint Remover

Removal Procedure





1. Remove the steering knuckle from the vehicle.

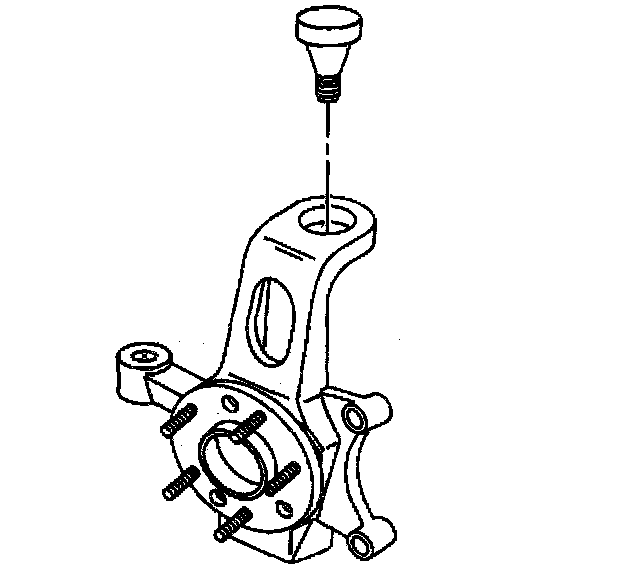

2. Remove the ball joint from the steering knuckle using J 9519-E and J 21474-5.

Installation Procedure

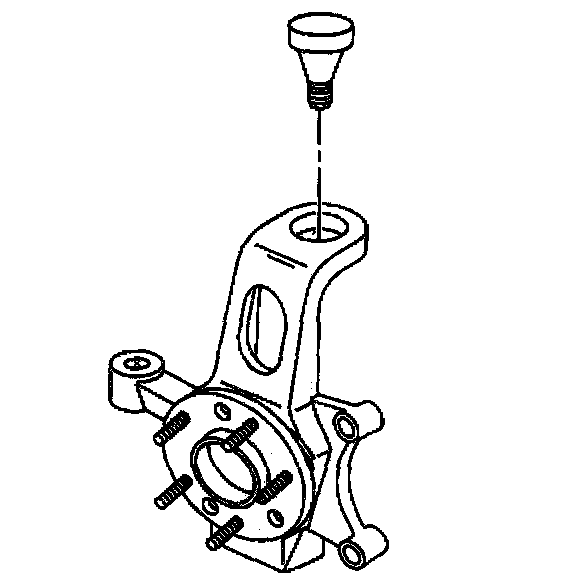

1. Install the ball joint stud into the steering knuckle using J 9519-E and J 28685.

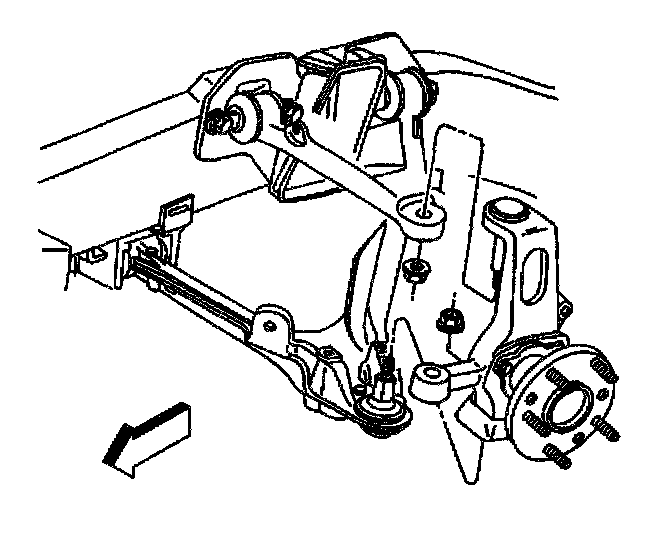

2. Install the steering knuckle to the vehicle.
