Telescope Motor
Telescope Motor Assembly ReplacementTools Required
^ J41352 Steering Column Holding Fixture
^ J42640 Steering Column Anti Rotation Pin
Removal Procedure
Caution: Refer to SIR Caution in Service Precautions.
1. Disable the SIR system.
2. Remove the steering column.
3. Secure the steering column to J41352.
4. Insert J42640 into the bottom of the lower trim cover.

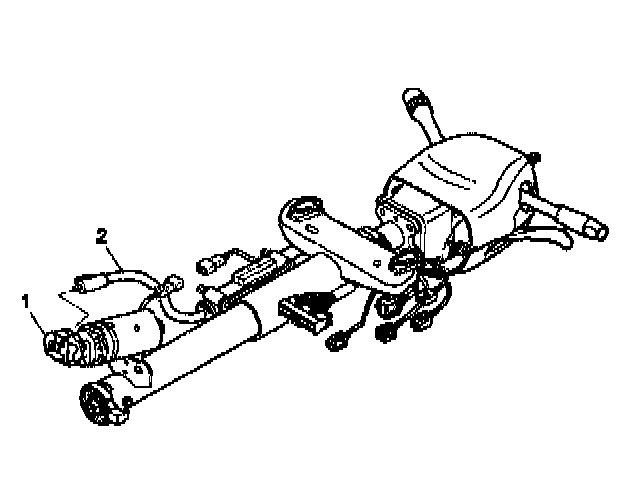

5. Disconnect the cable assembly (2) from the telescope drive motor assembly (1).

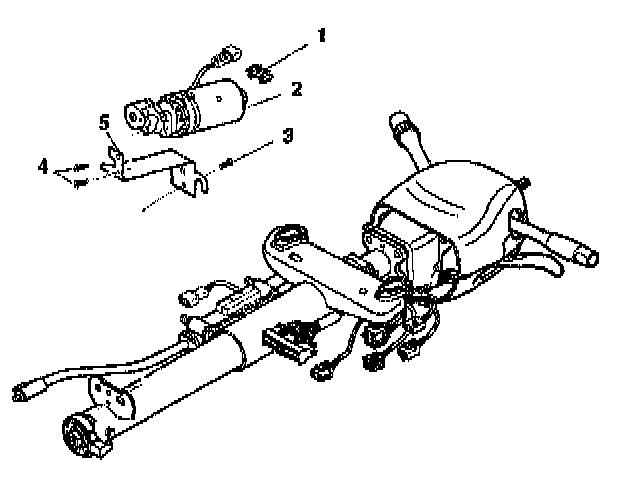

6. Remove the connector clip (1) from the telescope drive motor assembly connector (2).
7. Remove the 2 pan head tapping screws (4) from the telescope drive bracket (5).
8. Remove the telescope drive motor assembly (2) from the telescope drive bracket (5).
9. Remove the pan head tapping screw (3) from the telescope drive bracket (5).
10. Remove the telescope drive bracket (5) from the jacket assembly.
Installation Procedure

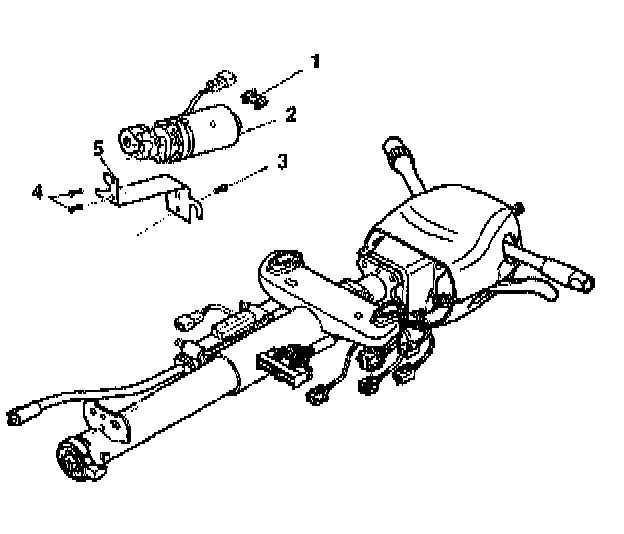

1. Install the telescope drive bracket (5) to the jacket assembly.
2. Install the pan head tapping screw (3) to the telescope drive bracket (5).
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the guide retainer bolts.
Tighten the screw to 7 Nm (62 inch lbs.).
4. Install the telescope drive motor assembly (2) to the telescope drive bracket (5).
5. Install the 2 pan head tapping screws (4) to the telescope drive bracket (5).
Tighten the screws to 7 Nm (62 inch lbs.).
6. Install the connector clip (1) to the telescope drive motor assembly connector (2).
Caution: Refer to SIR Inflator Module Coil Caution in Service Precautions.

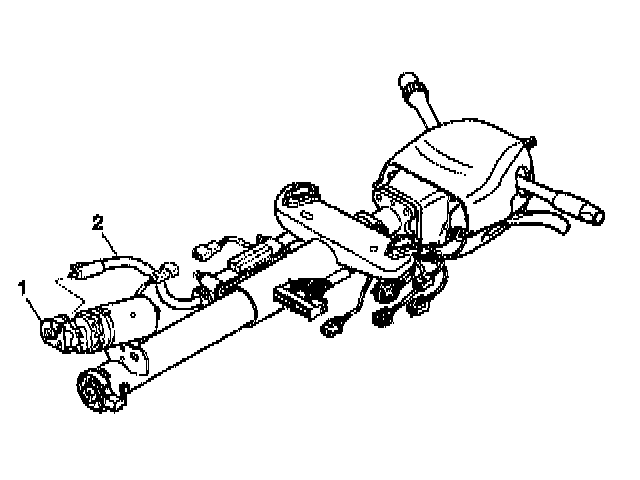

7. Connect the cable assembly (2) to the telescope drive motor assembly connector (1).
8. Remove the steering column from J41352.
9. Install the steering column.
10. Enable the SIR system.
