Remote PS Fluid Reservoir Bracket Replacement
Remote PS Fluid Reservoir Bracket ReplacementRemoval Procedure
1. Remove the power steering fluid reservoir.

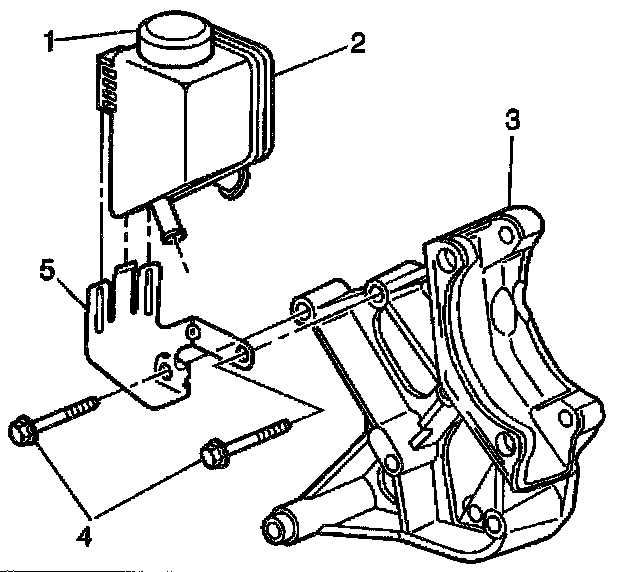

2. Remove the bolts (4) from the power steering fluid reservoir bracket (5).
3. Remove the power steering fluid reservoir bracket (5) from the vehicle.
Installation Procedure
1. Install the power steering fluid reservoir bracket (5) into the vehicle.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the bolts (4) to the power steering fluid reservoir bracket (5).
- Tighten the bolts to 50 Nm (37 ft. lbs.).
3. Install the power steering fluid reservoir.
4. Bleed the power steering system.
