Seat Belt Buckle Replacement - Left Front

REMOVAL PROCEDURE

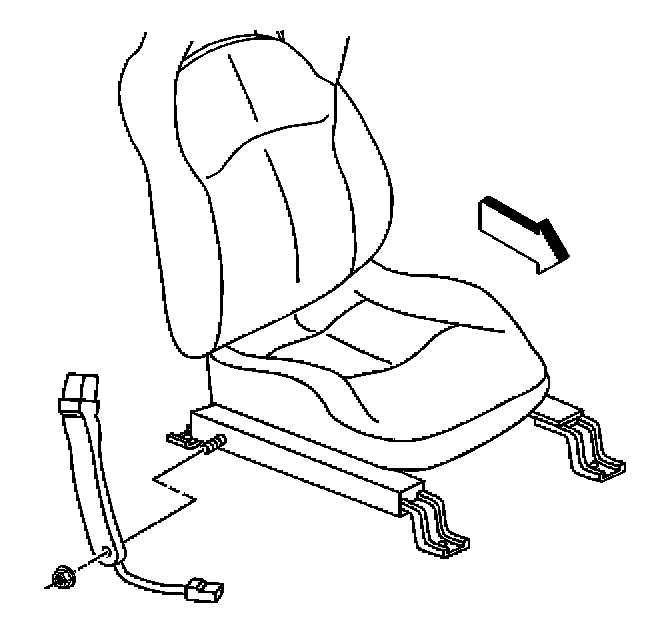

1. Remove the driver seat.
2. Disconnect the seat belt electrical connector.
3. Remove the buckle side seat belt from the seat track.

INSTALLATION PROCEDURE

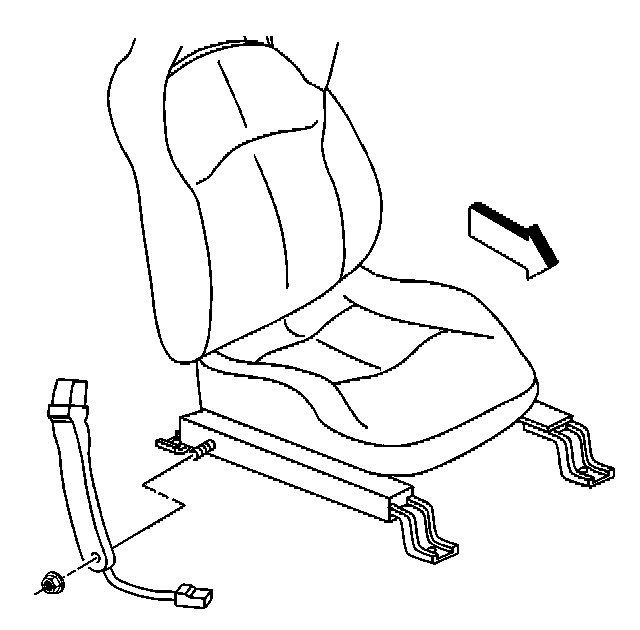

1. Install the buckle side seat belt to the drivers seat track.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the buckle side nut to 50 N.m (37 lb ft).

2. Connect the electrical connector.
3. Install the seat.
