Air Bag Deactivation Indicator: Service and Repair

INFLATABLE RESTRAINT INSTRUMENT PANEL (I/P) MODULE DISABLE SWITCH LED REPLACEMENT

TOOLS REQUIRED
J 35616-A Connector Test Adapter Kit

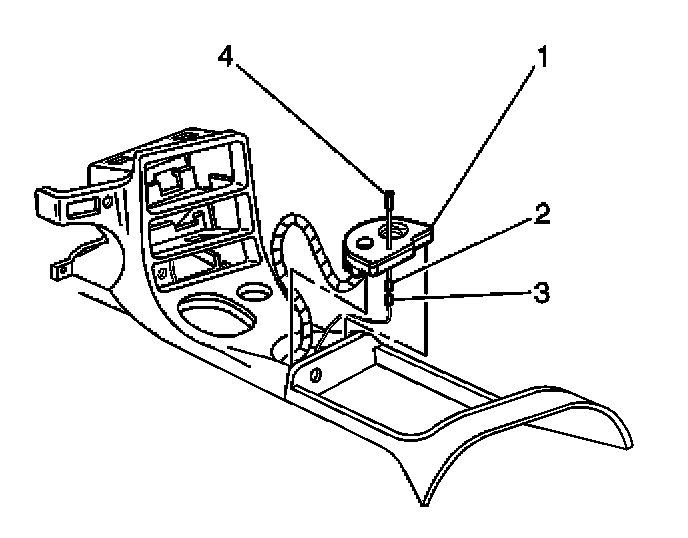

REMOVAL PROCEDURE




1. Open the console compartment door.
2. Lift up on the IP accessory trim plate (1) to gain access to the LED wiring connector (2).
3. Disconnect the electrical LED connector (2) from the wiring harness connector (3).
4. Use the J 35616-A to extract terminals from the LED connector (2).
5. Push up on LED (4) from underneath IP accessory trim plate (1) and remove.

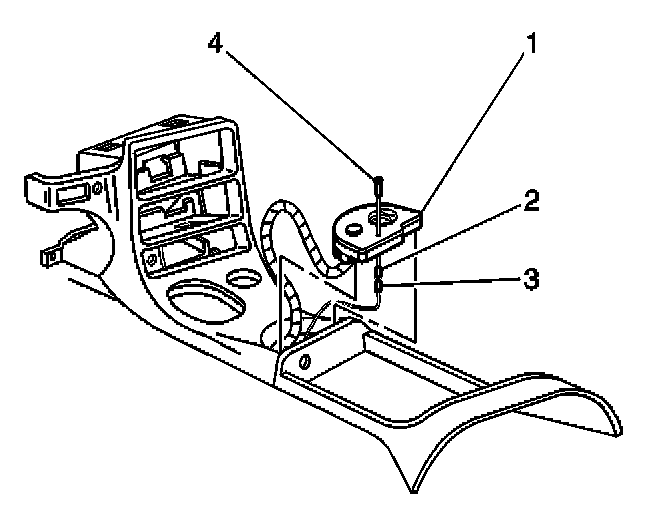

INSTALLATION PROCEDURE




1. Use the J 35616-A to extract terminals from the replacement LED connector (2).
2. Insert LED wiring through opening in the IP accessory trim plate (1) and press the LED (4) into place.
3. Install terminals in LED connector (2).
4. Connect the electrical LED connector (2) to the wiring harness connector (3).
5. Position the IP accessory trim plate (1) and press into place.
6. Close the console compartment door.
