Fuel Filler Hose Replacement

FUEL FILLER HOSE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left fuel tank.

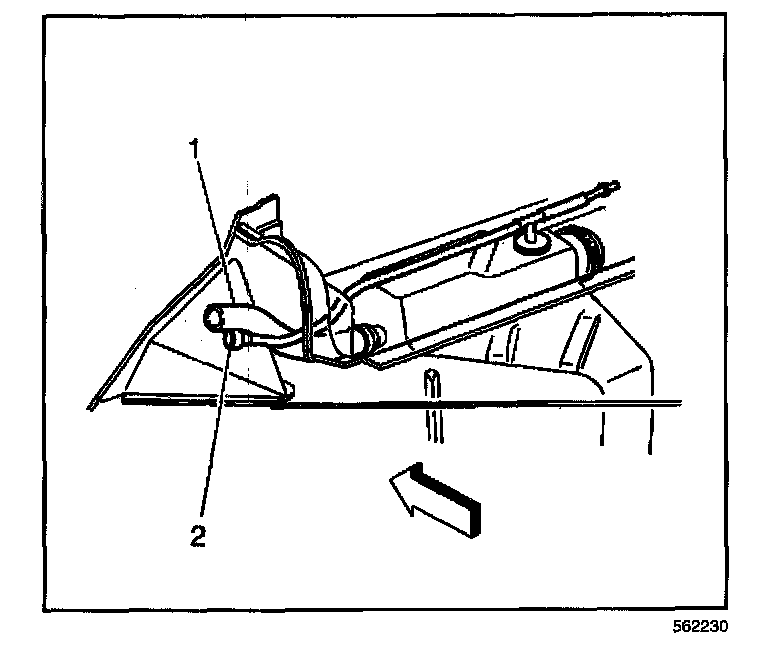

2. Remove the fuel fill hose (1) from the fuel tank.
3. Cap the open end of the fuel tank.

INSTALLATION PROCEDURE




1. Uncap the opening on the fuel tank.

NOTE: Refer to the Fastener Notice in Service Precautions.

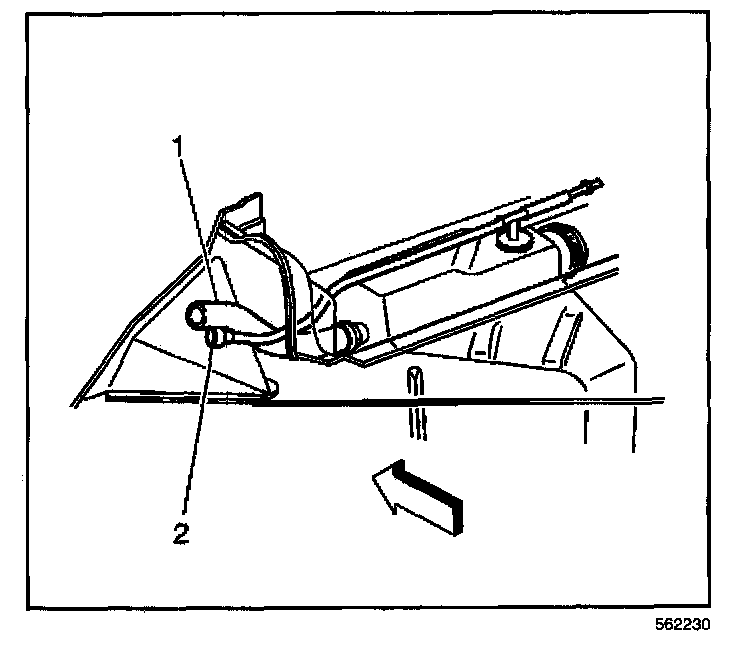

2. Install the fuel fill hose (1) to the fuel tank.

Tighten
Tighten the fuel fill hose clamp to 4 N.m (35 lb in).

3. Install the left fuel tank.
