Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>

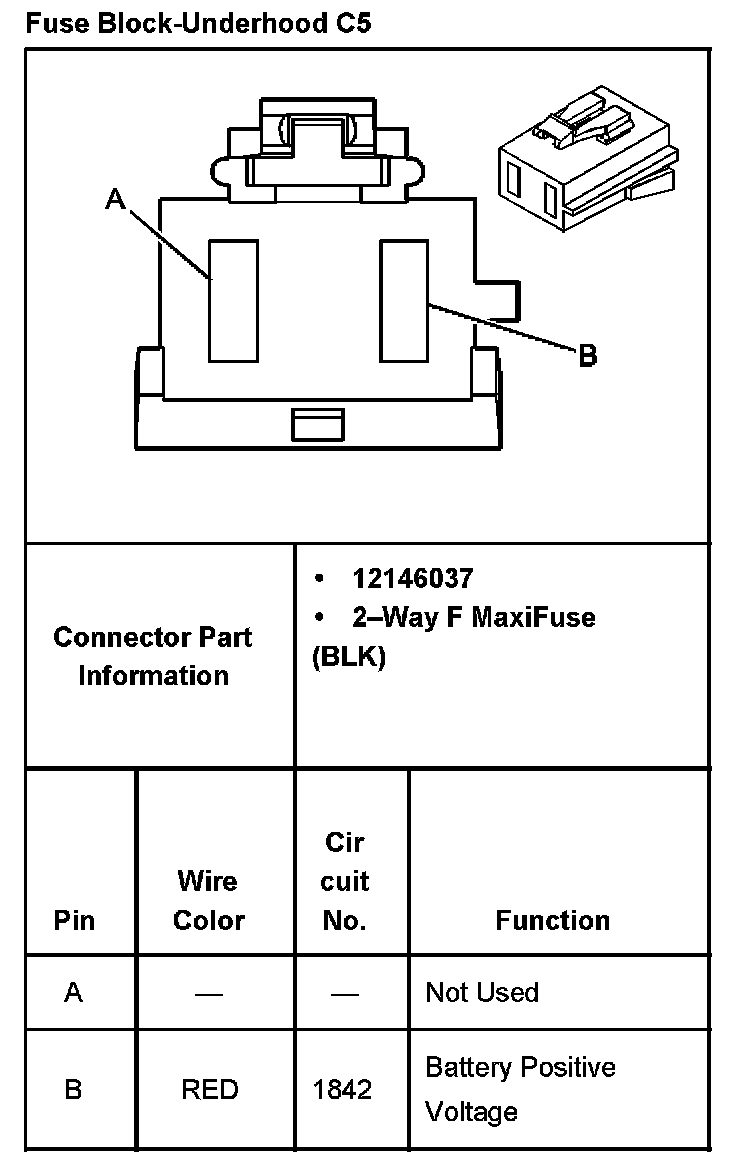

Fuse Block-Underhood C5
Fuse Block-Underhood C5
Fuse Block-Underhood C5:
