Zone 3

1. Remove the key from the ignition switch.

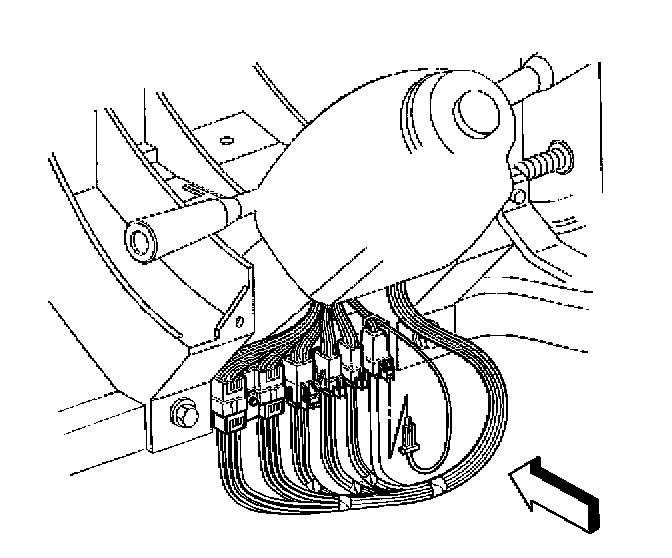

2. Connect the inflatable restraint steering wheel module coil connector located at the base of the steering.

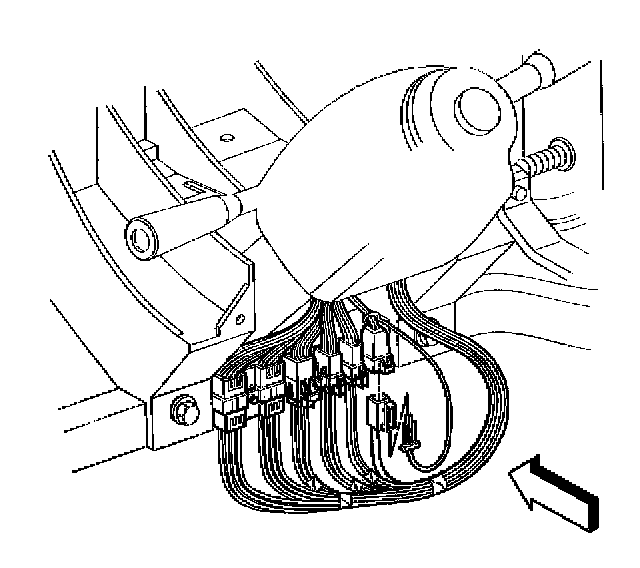

3. Install the CPA to the steering wheel module coil connector located at the base of the steering column.




4. Install the left sound insulator.

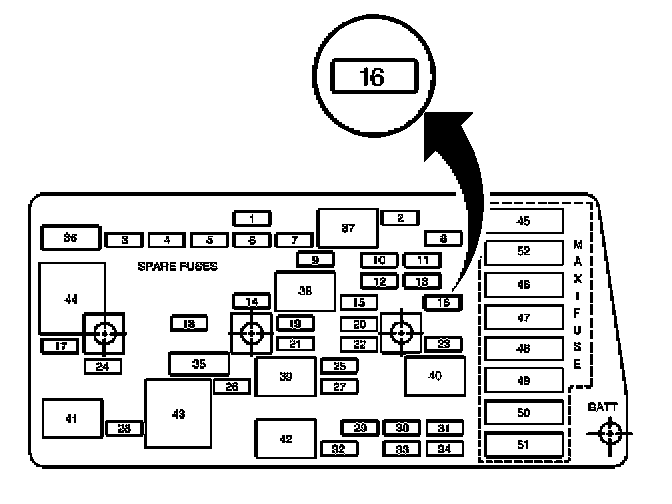

5. Install the SDM Fuse to the I/P fuse block.
6. Install the front floor kick-up panel.
7. Staying well away from both air bags, turn the ignition switch to the ON position.
7.1. The AIR BAG indicator will flash seven times.
7.2. The AIR BAG indicator will then turn OFF.
8. Perform the Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
