Zone 5

1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
2. Turn the ignition switch to the OFF position.
3. Remove the key from the ignition.
4. Remove the front floor kick-up panel.

IMPORTANT: With the SDM Fuse removed and the ignition switch in the ON position, the AIR BAG indicator illuminates. This is normal operation and does not indicate an SIR system malfunction.

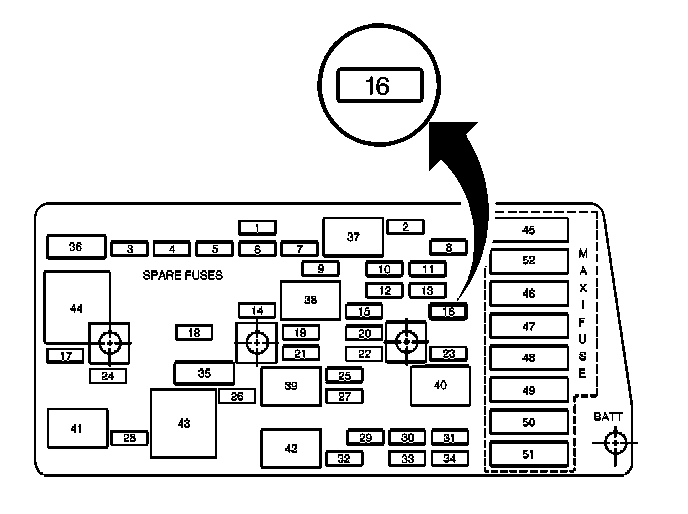

5. Remove the SDM Fuse from the I/P fuse block.




6. Remove the left sound insulator.

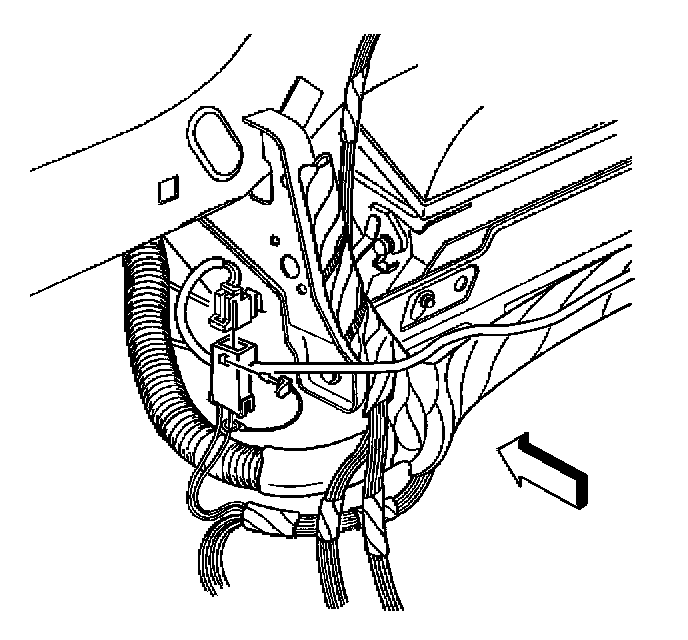

7. Remove the connector position assurance (CPA) from the inflatable restraint I/P module connector located at the base of the steering column.
8. Disconnect the I/P module connector located at the base of the steering column.
