Backup Light Bulb: Service and Repair

BACKUP LAMP BULB REPLACEMENT

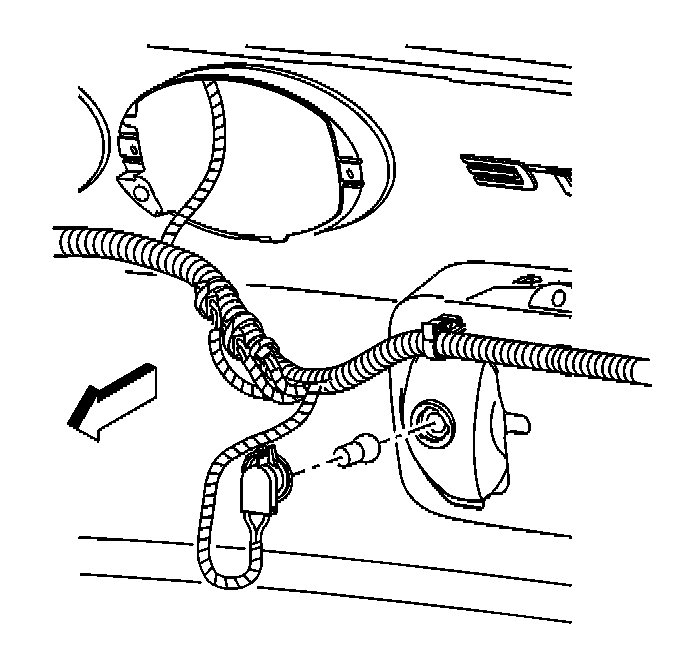

REMOVAL PROCEDURE




1. Remove the nearest inner tail lamp. Access the backup lamp through the tail lamp opening.
2. Remove the backup lamp socket from the backup lamp assembly.Rotate the socket counterclockwise to disengage the locking tabs.
3. Remove the bulb from the socket.

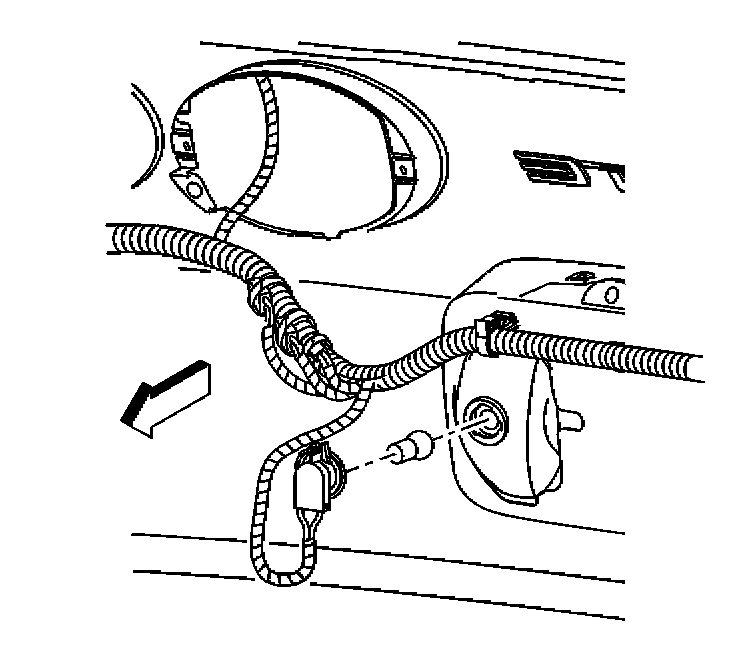

INSTALLATION PROCEDURE




1. Install the bulb to the backup lamp socket. Rotate the socket clockwise to engage the locking tabs.
2. Install the backup lamp socket to the backup lamp assembly.
3. Install the inner tail lamp.
