Installation

COMPRESSOR PRESSURE RELIEF VALVE INSTALL (V7 - DIRECT MOUNT)

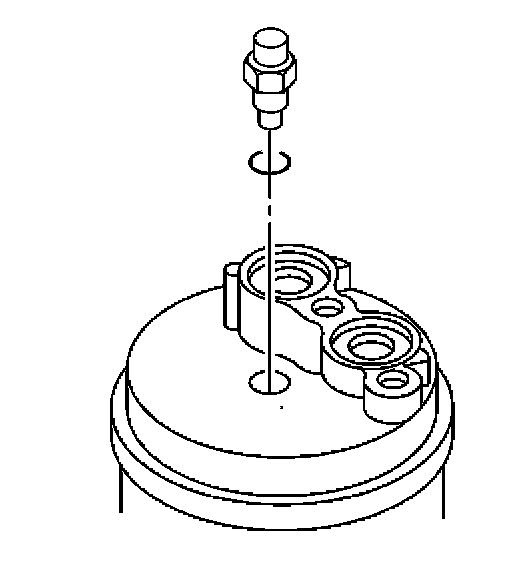

TOOLS REQUIRED
J 41790 A/C Compressor Holding Fixture







1. Clean the pressure relief valve seat area of the rear head.
2. Lubricate the O-ring of the new pressure relief valve with clean 525 viscosity refrigerant oil.
3. Install the new pressure relief valve into the A/C compressor.

NOTE: Refer to Fastener Notice in Service Precautions. .

Tighten
Tighten the valve to ...................................9 N.m (80 lb in).

4. Remove the A/C compressor from the J 41790.
5. Install the A/C compressor into the vehicle.
