Rear Floor , RH

AIR OUTLET DUCT REPLACEMENT - REAR FLOOR, RH


REMOVAL PROCEDURE
1. Remove the IP upper trim pad.
2. Pull the front floor carpet away from the RH side of the driveline tunnel to access the floor air outlet - inner.







3. Release the floor air outlet - inner from the floor air outlet lower duct - RH rear.
Use a twisting motion to release the floor outlet from the floor duct.

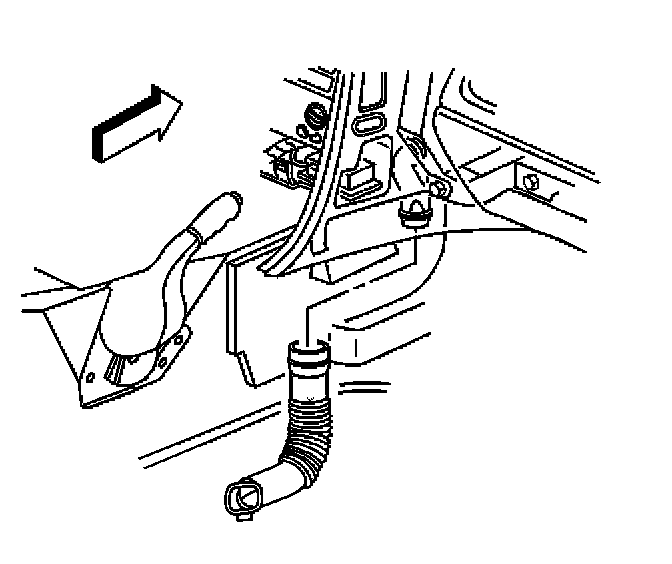

4. Release the floor air outlet lower duct - RH rear from the floor air outlet duct - RH rear, then remove the duct.
Use a twisting motion to release the lower duct from the duct.

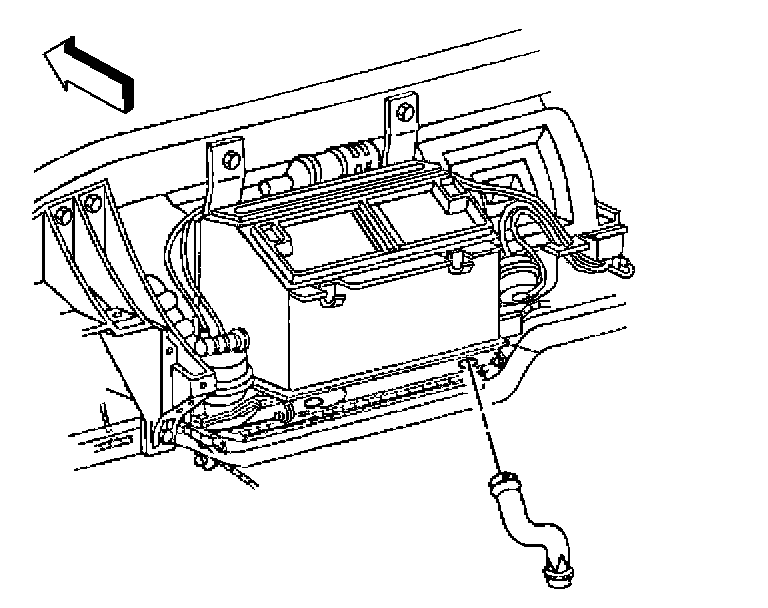

5. Using a flat bladed screwdriver, CAREFULLY release the floor air outlet duct - RH rear from the HVAC module.
6. Lower the duct down between the IP center support bracket and the side of the driveline tunnel, then remove the duct.







INSTALLATION PROCEDURE

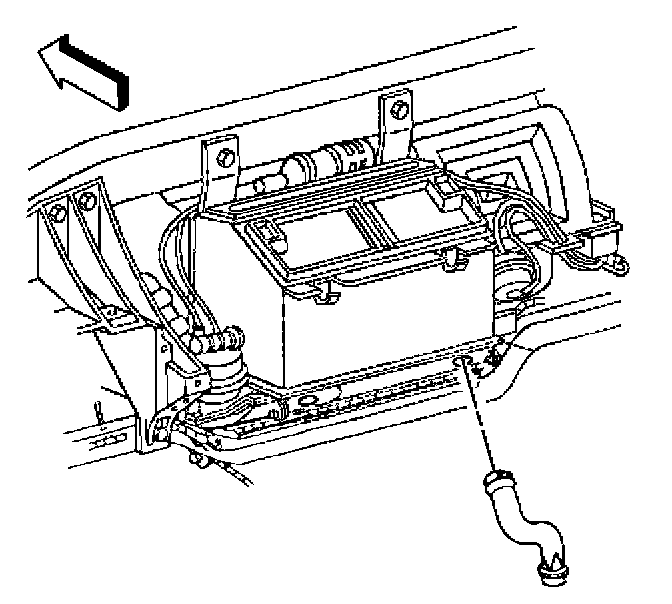

1. Insert the floor air outlet duct - RH rear up between the IP center support bracket and the side of the driveline tunnel, then position the duct to the HVAC module.
2. Align the floor duct to the HVAC module, then push firmly and evenly to secure the duct.

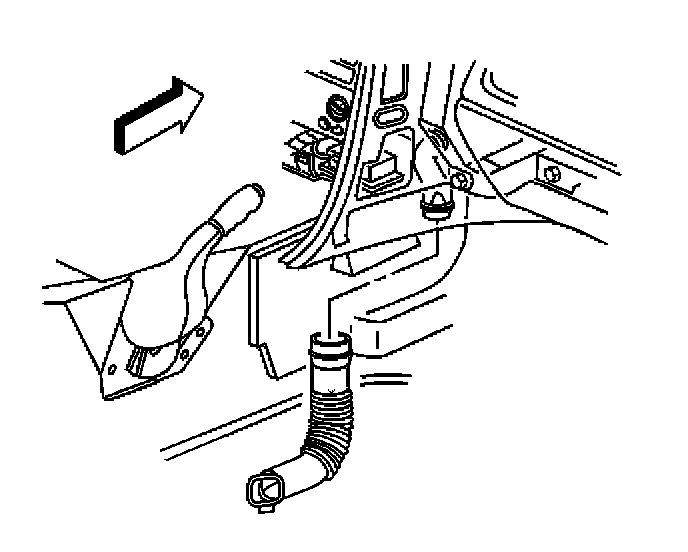

3. Position and secure the floor air outlet lower duct - RH rear to the floor air outlet duct - RH rear.
Use a twisting motion to secure the lower duct to the duct.
4. Secure the floor air outlet - inner to the floor air outlet lower duct - RH rear.
Use a twisting motion to secure the floor outlet to the floor duct.
5. Position the front floor carpet to the RH side of the driveline tunnel.
6. Install the IP upper trim pad.
