Rear Floor , LH

AIR OUTLET DUCT REPLACEMENT - REAR FLOOR, LH







REMOVAL PROCEDURE
1. Remove the console.
2. Remove the IP accessory trim plate.
3. Remove the driver knee bolster trim panel.

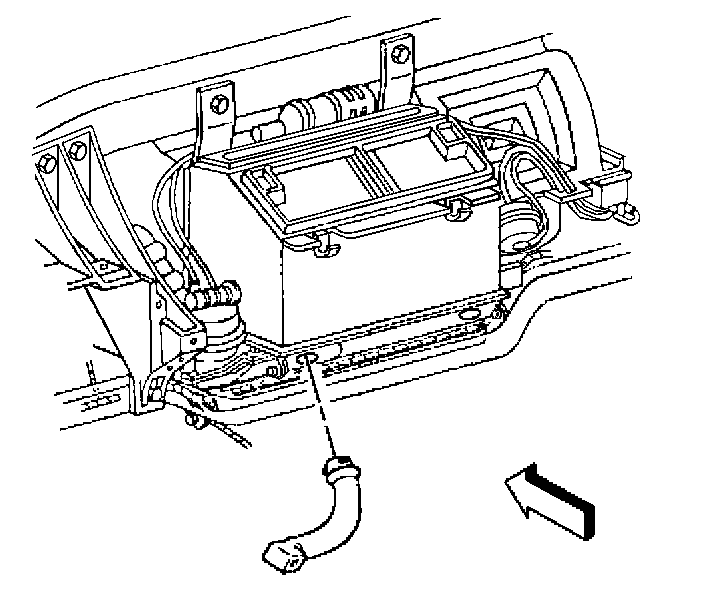

4. Grasp the floor air outlet rear duct - LH and rotate 1/4 turn clockwise to release.
Carefully use a flat bladed tool to release the duct, if necessary.
5. Remove the duct.







INSTALLATION PROCEDURE

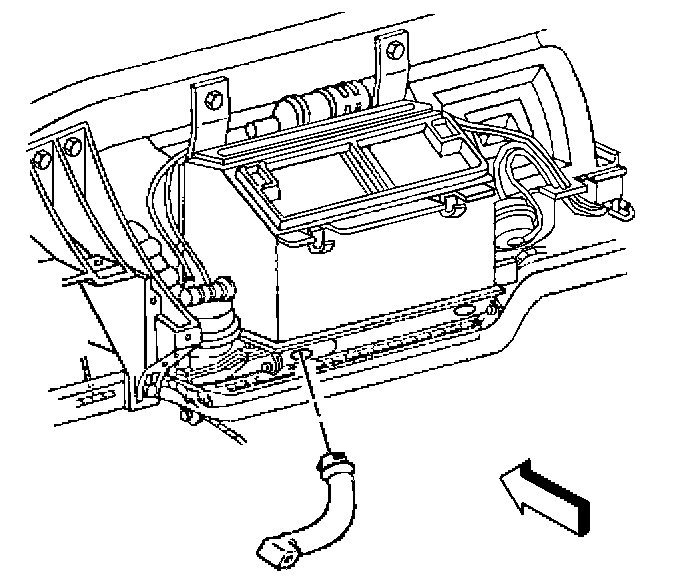

1. Position the floor air outlet rear duct - LH in the same position in which it was released (1/4 turn above the installed position).
2. Insert and seat the duct into the HVAC module.
3. Rotate the duct 1/4 turn counterclockwise to secure.
4. Install the driver knee bolster trim panel.
5. Install the IP accessory trim plate.
6. Install the console.
