Floor , LH

AIR OUTLET DUCT REPLACEMENT - FLOOR, LH

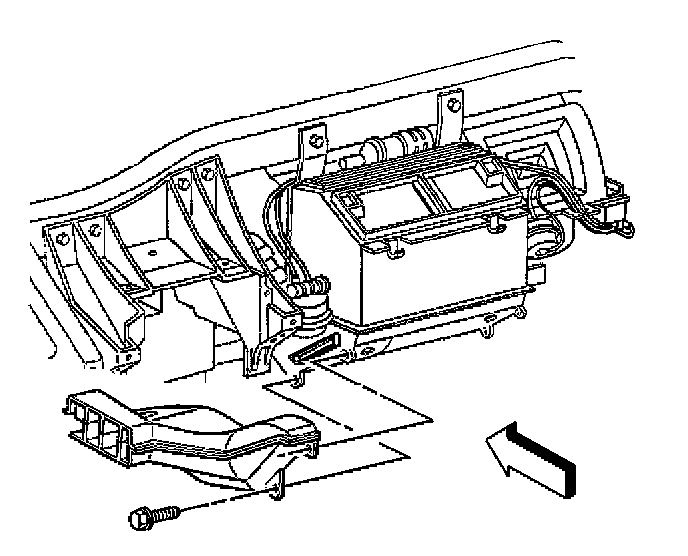

REMOVAL PROCEDURE
1. Remove the left lower closeout/insulator panel.
2. Remove the screws retaining the floor air outlet duct.
3. Remove the floor duct.

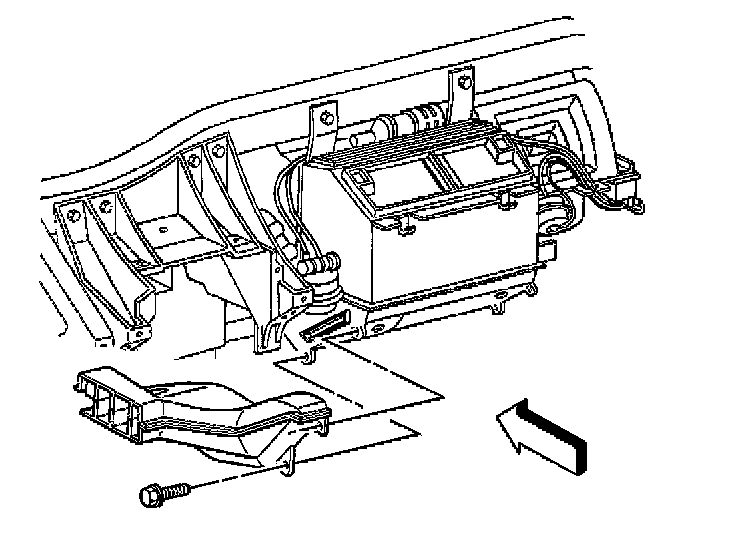

INSTALLATION PROCEDURE
1. Install the floor air outlet duct into position.
2. Install the floor air outlet duct retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to............1.6 N.m (14 lb in).

3. Install the left lower closeout/insulator panel.
