Right
AIR TEMPERATURE DOOR REPLACEMENT - RIGHTREMOVAL PROCEDURE
1. Remove the HVAC module.
2. Remove the temperature actuator screws.
3. Remove the temperature actuator.
4. Remove the air inlet housing retaining screws.
5. Remove the air inlet housing.
6. Remove the HVAC module upper mounting screws.

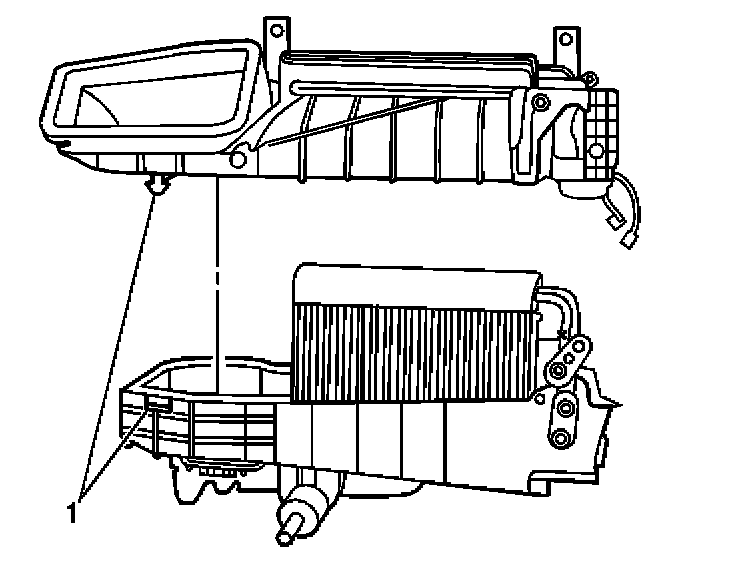

7. Release the retaining tab (1) securing the HVAC module halves.
8. Separate the upper and lower module halves.

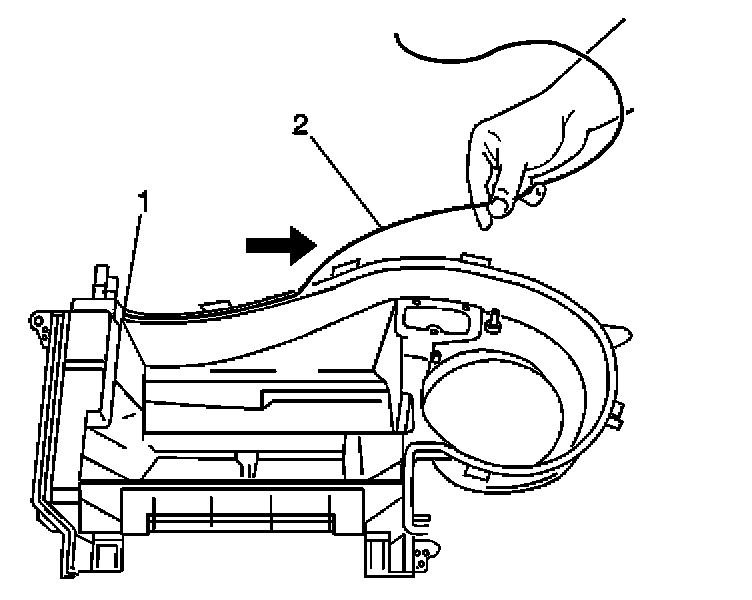

9. Remove the HVAC module seal (2).
10. Remove the right temperature door.
INSTALLATION PROCEDURE
1. Install the right temperature door.

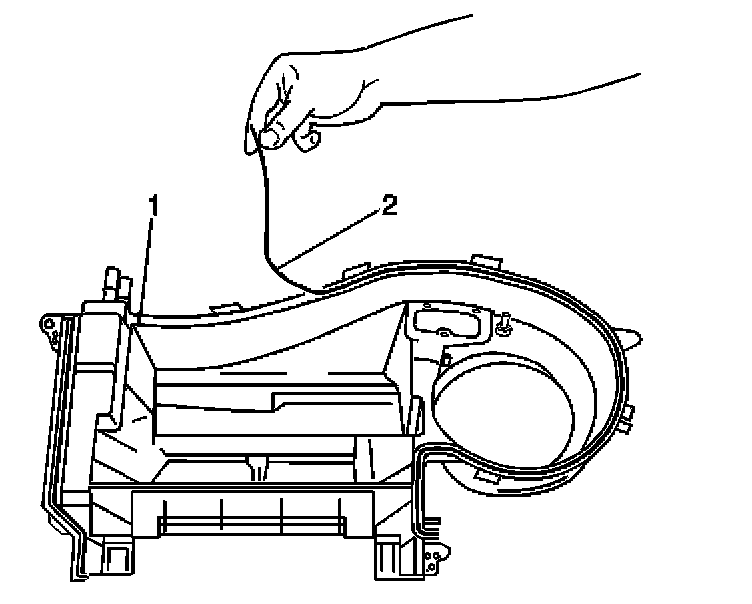

2. Install the new case seal (2) to the HVAC module case.
Start to install the lower case seal (2) to the lower case from the position shown (1).
3. Wet the upper evaporator core seal with water.
4. Align and secure the retaining tab (1). Align and install the upper module case to the lower module case.
IMPORTANT: Inspect the condition of the retaining tab on the upper module case prior to installing the lower module case. If the retaining tab is broken or damaged,install an external retaining clip (P/N 52458793, or equivalent).
5. Install the HVAC module upper mounting screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to............1.6 N.m (14 lb in).
6. Install the air inlet housing.
7. Install the air inlet housing retaining screws.
Tighten
Tighten the screws to............1.6 N.m (14 lb in).
8. Install the temperature actuator.
9. Install the temperature actuator screws.
Tighten
Tighten the screws to............1.5 N.m (13 lb in).
10. Install the HVAC module.
