Fan Blade: Service and Repair

Cooling Fan Replacement - Electric

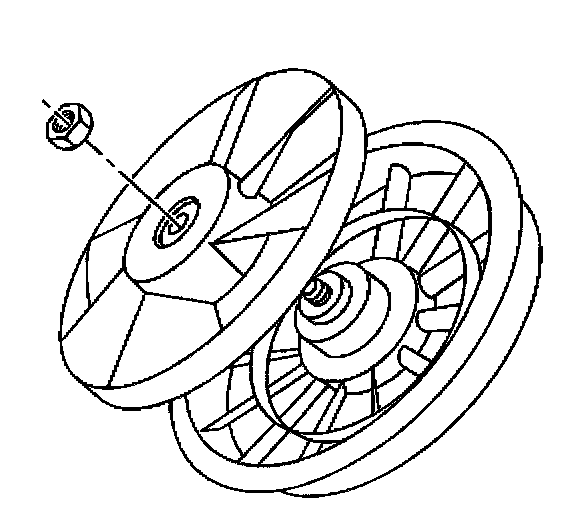

Removal Procedure
1. Remove the fan shroud.





2. Remove the cooling fan blade nut.
3. Remove the cooling fan blade.

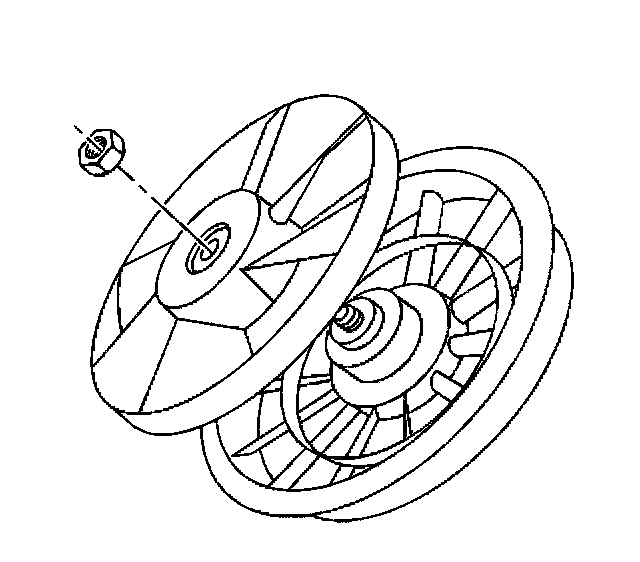

Installation Procedure
1. Install the cooling fan blade.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the cooling fan blade nut.
Tighten the fan blade nut to 6 Nm (53 inch lbs.).
3. Install the fan shroud.
