Fan Shroud: Service and Repair

Fan Shroud Replacement

Tools Required
^ J38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.





2. Remove the radiator support.

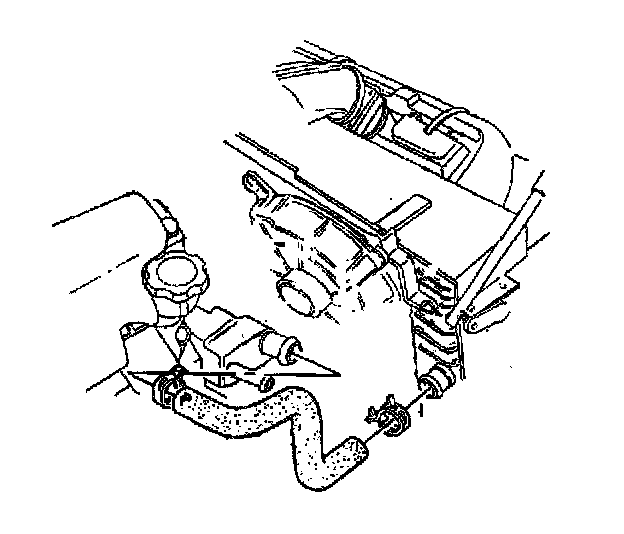

3. Reposition the radiator inlet hose clamp from the radiator using J38185.
4. Remove the radiator inlet hose from the radiator.
5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

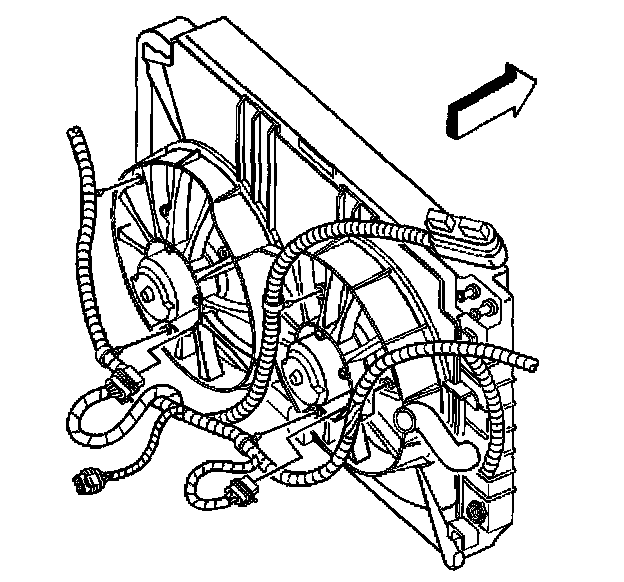

6. Disconnect the cooling fan electrical connectors.
7. Remove the forward lamp harness from the retaining clips on the shroud.

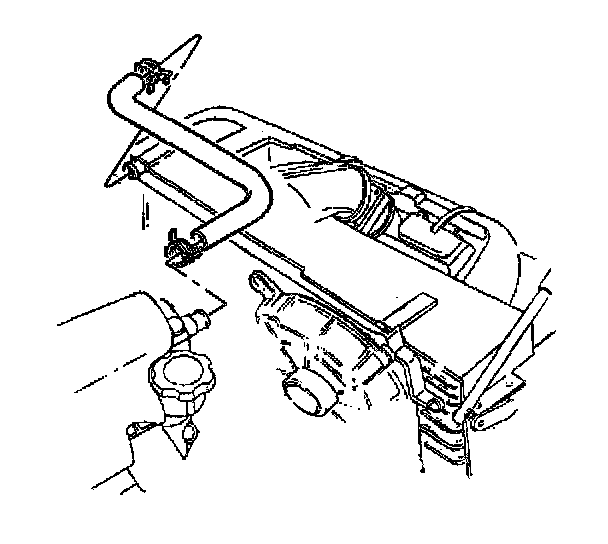

8. Reposition the radiator outlet hose clamp from the radiator using J38185.
9. Remove the radiator outlet hose from the radiator.
10. Lower the vehicle.

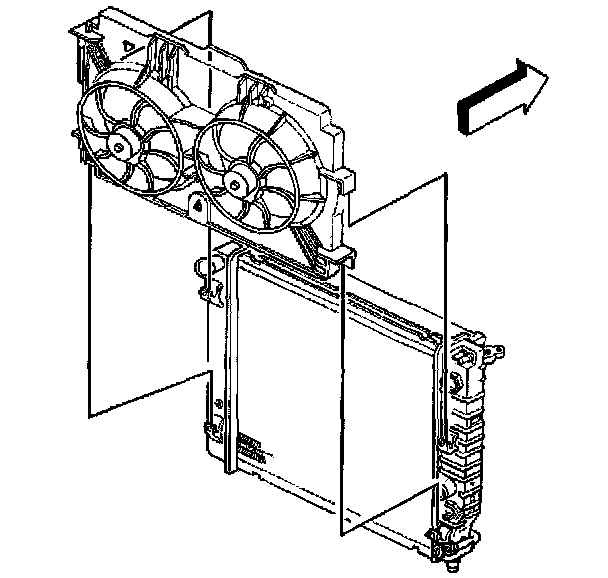

11. Remove fan shroud.

Installation Procedure





1. Install the fan shroud.
2. Raise the vehicle.





3. Install the radiator outlet hose to the radiator.
4. Reposition the radiator outlet hose clamp to the radiator using J38185.





5. Install the forward lamp harness to the retaining clips on the fan shroud.
6. Connect the cooling fan electrical connectors.
7. Lower the vehicle.





8. Install the radiator inlet hose to the radiator.
9. Reposition the radiator inlet hose clamp to the radiator using J38185.
10. Install the radiator support.
11. Fill the cooling system.
