Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>

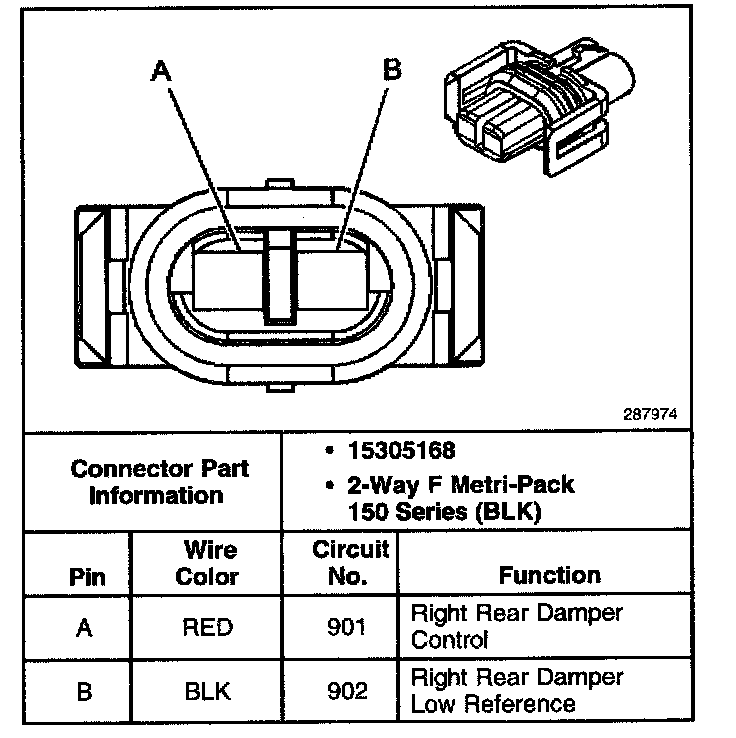

Suspension Damper-RR
Suspension Damper-RR
Suspension Damper-RR:
