Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Bose(R) Signal Processor - Coupe
Bose(R) Signal Processor - Coupe

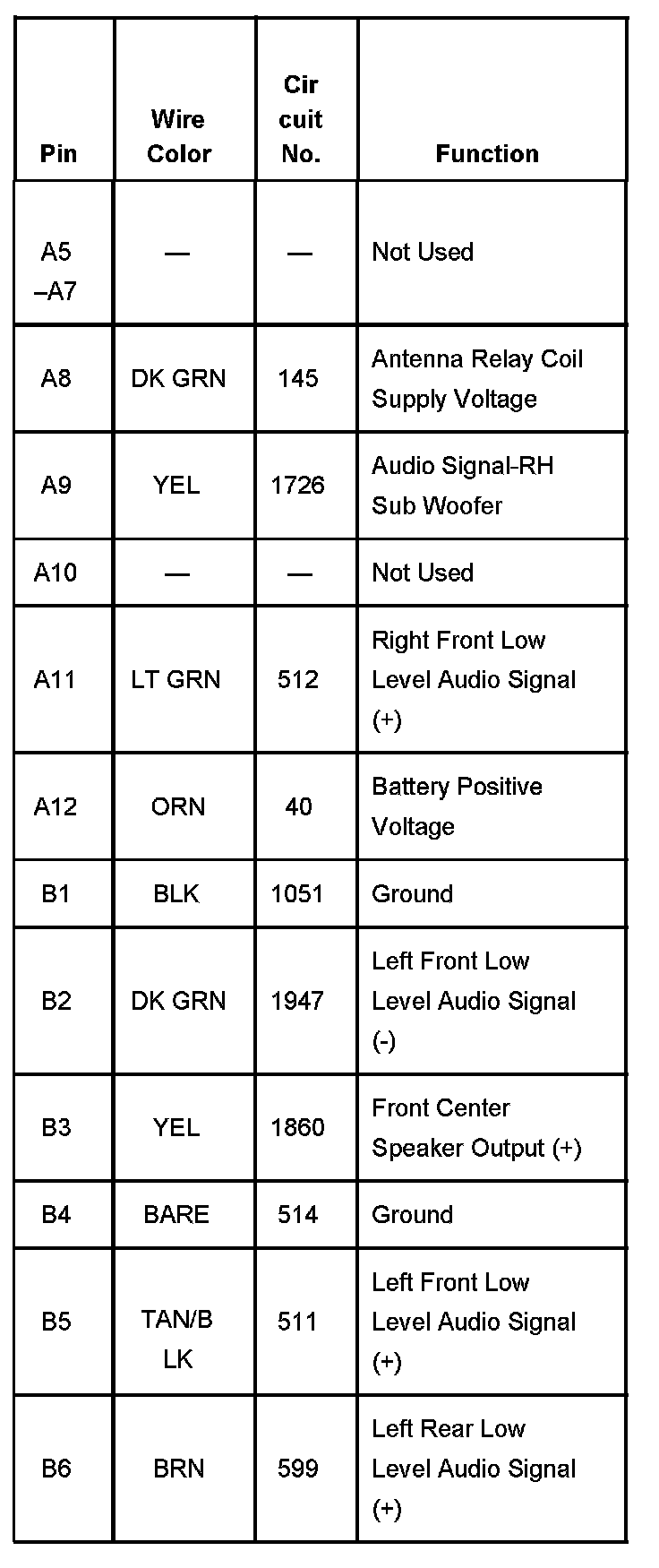

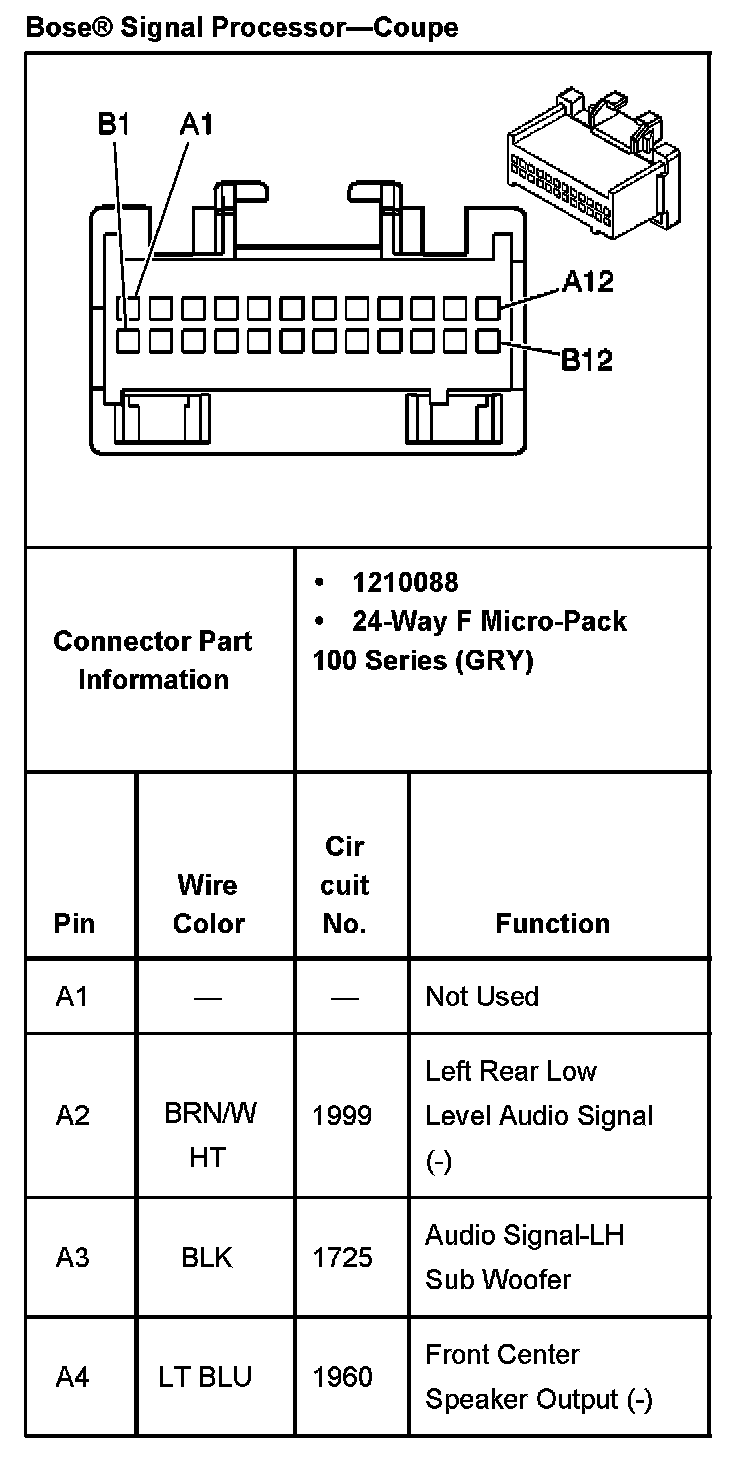

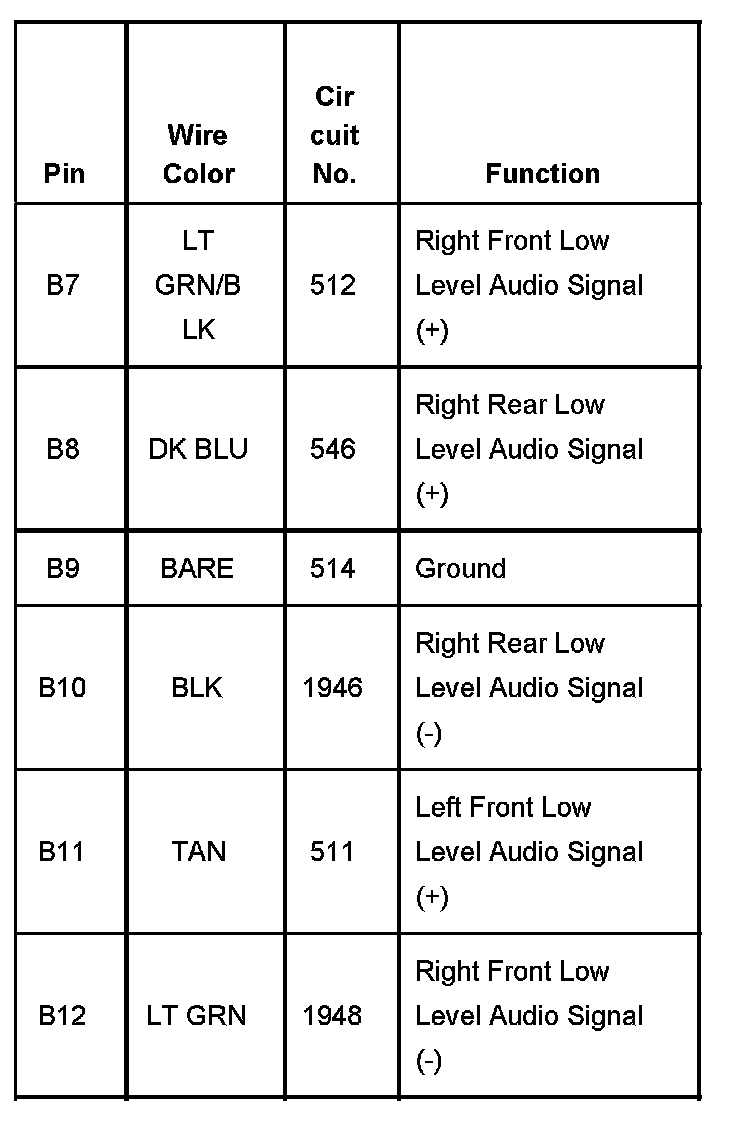

Bose(R) Signal Processor Coupe Part 1:
Bose(R) Signal Processor Coupe Part 2:
Bose(R) Signal Processor Coupe Part 3:
