Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC
Air Temperature Actuator (w/Manual - HVAC System):

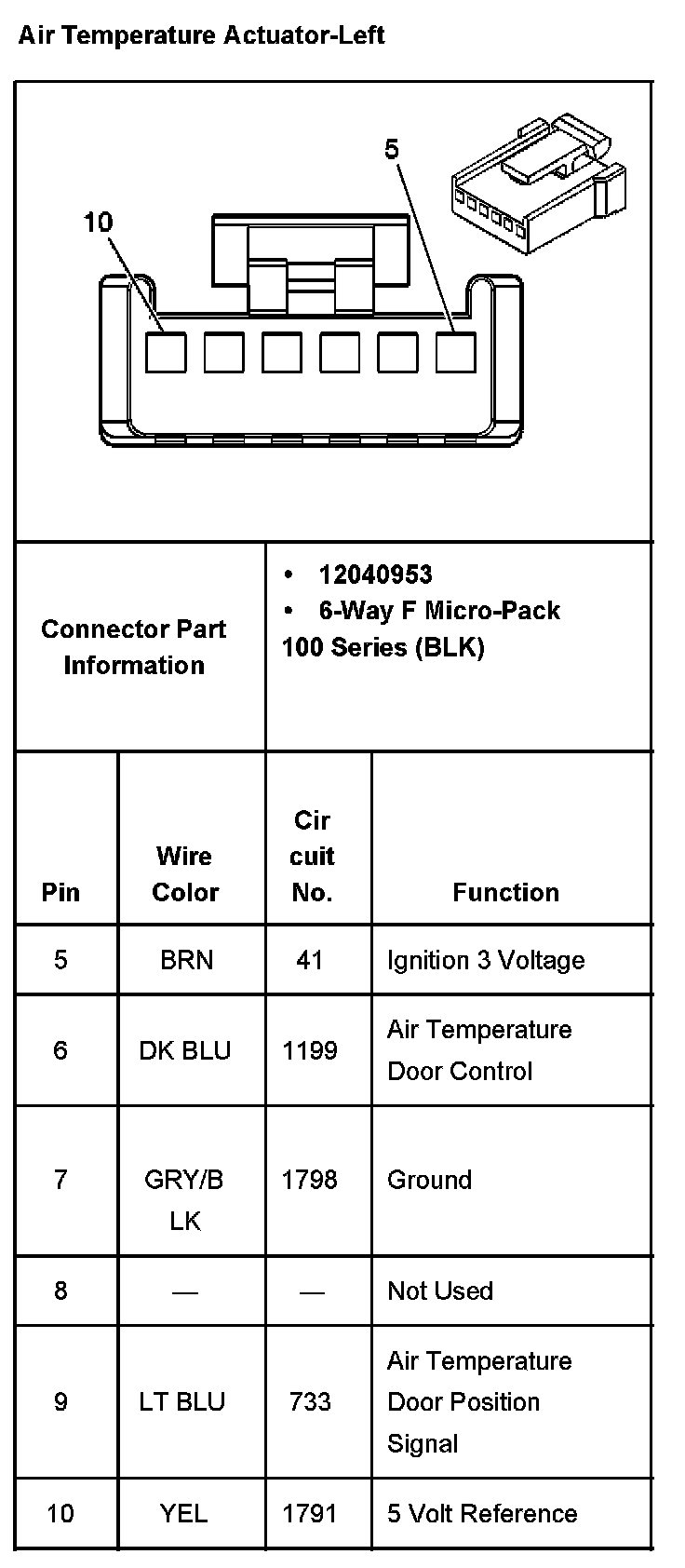

Air Temperature Actuator-Left (w/Automatic - HVAC System):

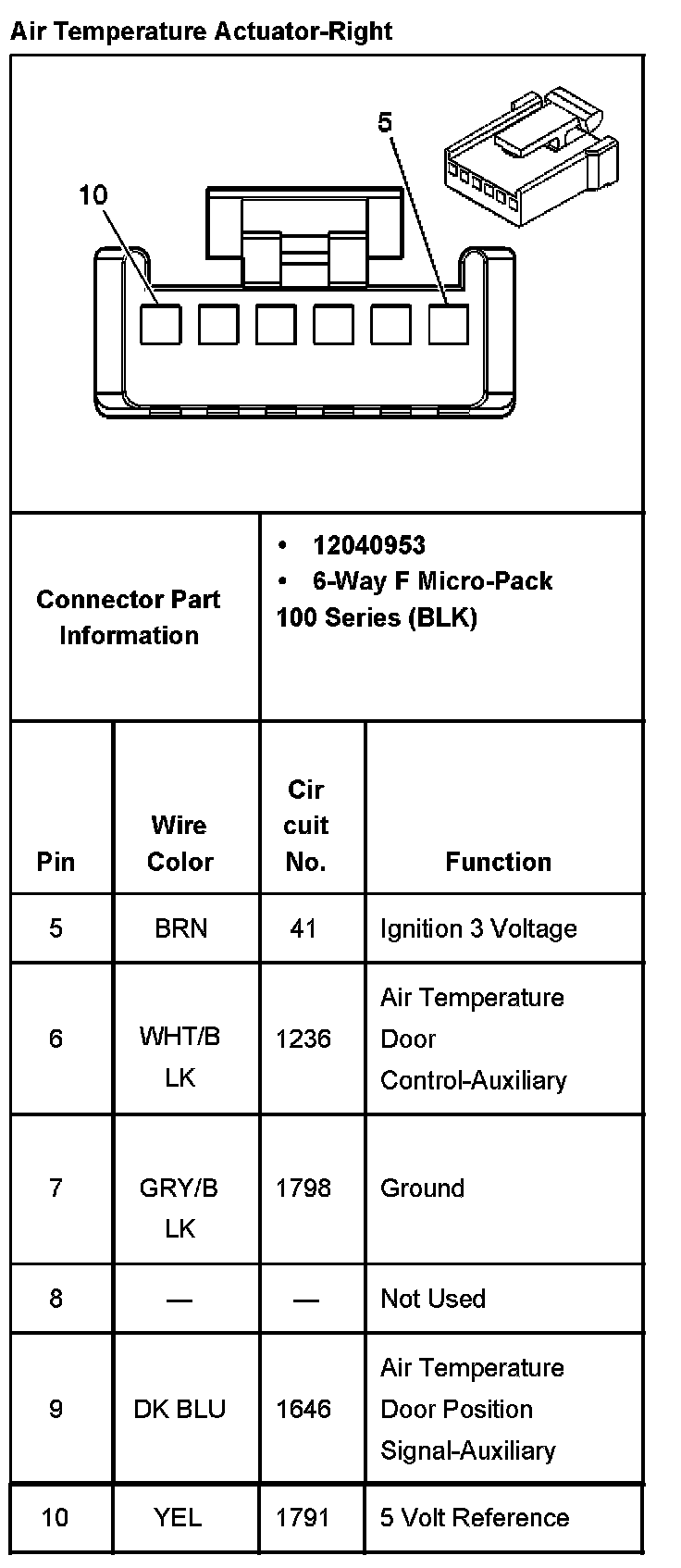

Air Temperature Actuator-Right (w/Automatic - HVAC System):
