Park Brake Shoe Replacement

Park Brake Shoe Replacement

Removal Procedure
1. Remove the brake rotor.
2. Remove the wheel bearing/hub.





3. Rotate the parking brake adjusting nut until all park brake shoe adjustment has been removed.
4. Remove the parking brake shoe retaining spring.

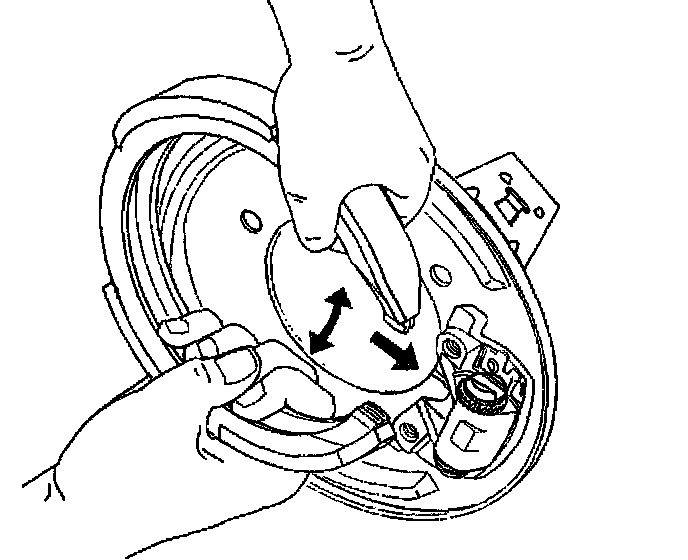

5. Remove the park brake shoe assembly by grasping the shoe and spreading slightly while pulling the shoe from the actuator assembly.

Installation Procedure





1. Install the park brake shoe assembly by grasping the shoe and spreading slightly while pulling the shoe over the actuator assembly.





2. Install the parking brake shoe retaining spring.
3. Adjust the parking brake shoe-to-drum clearance.
4. Install the wheel bearing/hub.
5. Install the brake rotor.
