Parking Brake Lever: Service and Repair

Park Brake Lever Assembly Replacement

Removal Procedure
1. Remove the accessory trim plate.
2. Remove the passenger seat.





3. Remove the park brake lever boot nuts.





4. Disconnect the parking brake electrical connector.
5. Disable the parking brake automatic adjuster.





6. Remove the parking brake lever assembly mounting bolts.
7. Reposition the park brake lever.

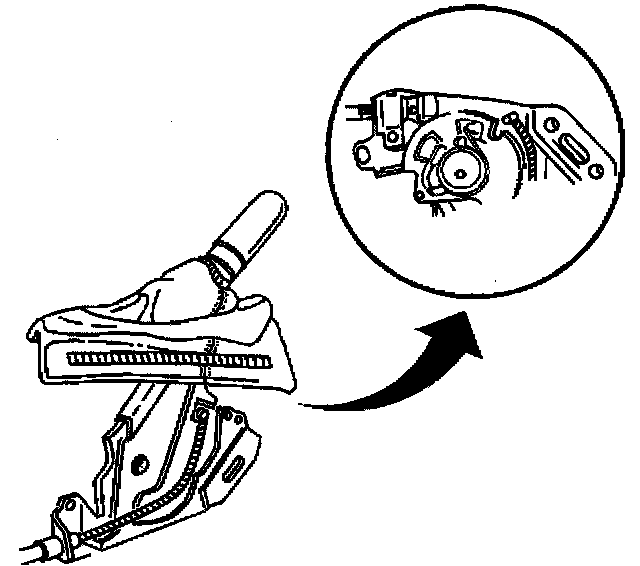

8. Disconnect the front parking brake cable from the drive sector and park brake lever assembly.

Installation Procedure





1. Connect the front parking brake cable to, the drive sector and park brake lever assembly.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the parking brake lever assembly mounting bolts.
Tighten the parking brake lever assembly mounting bolts to 28 Nm (21 ft. lbs.).





3. Connect the parking brake electrical connector.
4. Enable the parking brake automatic adjuster.





5. Install the parking brake lever boot nuts.
Tighten the parking brake lever boot nuts to 10 Nm (89 inch lbs.).
6. Install the passenger seat.
7. Install the accessory trim plate.
