Brake Pressure Modulator Valve (BPMV) Bracket Replacement

Brake Pressure Modulator Valve (BPMV) Bracket Replacement

Removal Procedure
1. Turn the ignition switch to the OFF position.





2. Loosen the two insulator nuts (1).

Important: Do not kink or bend the brake lines when moving the EBCM/BPMV assembly.

3. Lift the EBCM/BPMV assembly out of the bracket and support.

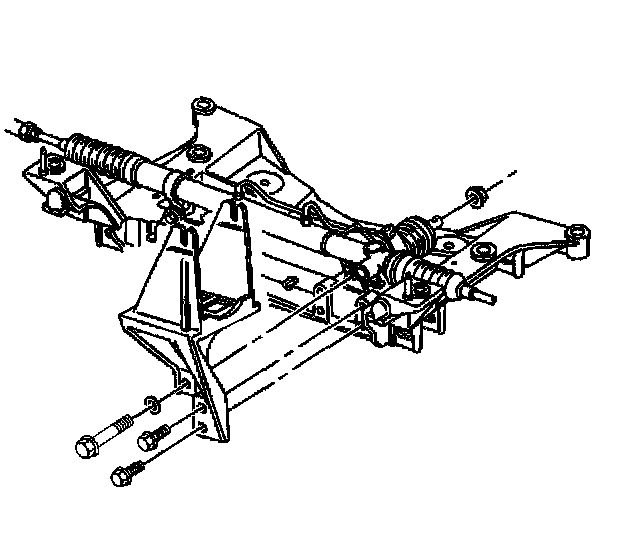

4. Remove the two BPMV bracket bolts.
5. Remove the steering gear nut and bolt.
6. Remove the BPMV bracket.

Installation Procedure
1. Install the EBCM/BPMV bracket to the crossmember.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the two bracket bolts to the EBCM/BPMV bracket.
Tighten the bolts to 27 Nm (20 ft. lbs.).
3. Install the steering gear bolt and nut.
Tighten the steering gear nut to 100 Nm (74 ft. lbs.).
4. Install the EBCM/BPMV assembly into the bracket.





5. Install the insulator nuts (1) to the EBCM/BPMV assembly.
Tighten the nuts to 10 Nm (89 inch lbs.).
