Emblem/Nameplate Replacement - Front Fender

Emblem/Nameplate Replacement - Front Fender

Tools Required

J 25070Heat Gun

Removal Procedure

1. When replacing an emblem/nameplate, do the following:

1. Use tape to protect the mounting surface during removal.
2. Use tape for alignment marks for installation of the emblem/nameplate.

2. To remove an emblem/nameplate, heat the emblem/nameplate using a J 25070.
3. Apply the heat using a circular motion for about 30 seconds holding the J 25070 approximately 152 mm (6 in) from the surface.






Notice: Refer to Exterior Trim Emblem Removal Notice in Service Precautions.

4. Use a plastic, flat-bladed tool to remove the emblem/nameplate from the panel surface.

Installation Procedure

Important: Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.

1. Clean the area where the emblem/nameplate will be installed.
Use a lint free cloth and Varnish Makers and Painters (VMP) naphtha or a, 50/50 mixture, by volume of isopropyl alcohol and water to clean the area.
2. Dry the area thoroughly.
3. If the location of the emblem/nameplate has not been marked, apply tape and use the following dimensions:

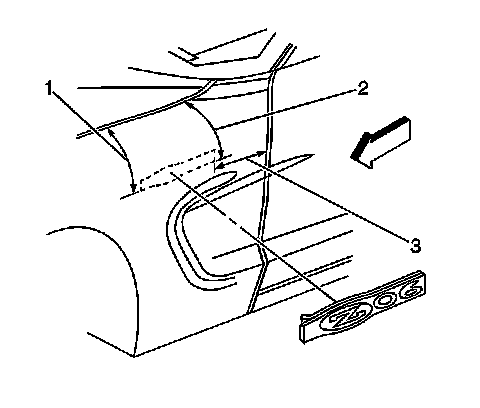

4. For the ZO6 emblem/nameplate, install to the following dimensions:

* Dimension (1) is 216.5 mm (8.50 in) from the top edge of the fender to the bottom of the emblem/nameplate.
* Dimension (2) is 212.74 mm (8.40 in) from the top edge of the fender to the bottom of the emblem/nameplate.
* Dimension (3) is 158.51 mm (6.24 in) from the rear edge of the fender to the back of the emblem/nameplate.




5. For the 50th Anniversary emblem/nameplate, install to the following dimensions:

* Dimension (a) is 162 mm (6.375 in) from the top edge of the fender to the top of the emblem/nameplate.
* Dimension (b) is 105 mm (4.125 in) from the top edge of the fender to the bottom of the emblem/nameplate.

6. Heat the mounting surface to approximately 27-41°C (80-105°F) using the J 25070, if necessary.
7. Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).

Important: Do not touch the adhesive backing on the emblem/nameplate.

8. Remove the protective liner from the back of the emblem/nameplate.
9. Position the emblem/nameplate to the location marks and press the emblem/nameplate to the mounting surface.
10. Apply equal pressure along the emblem/nameplate to uniformly bond the item to the mounting surface.
11. Remove the protective tape from the mounting surface.
