Hood Latch Replacement - Right

Hood Latch Replacement - Right

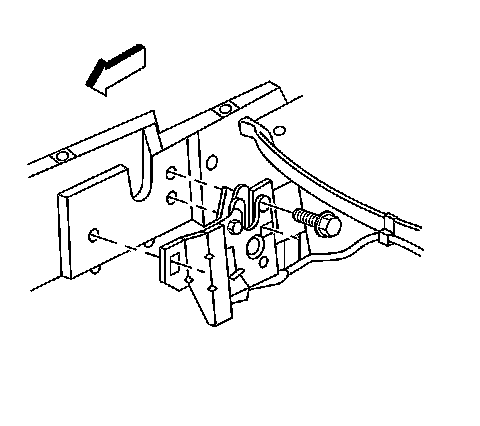

Removal Procedure




1. Mark the perimeter of the latch using a grease pencil.
2. Remove the latch bolts and the latch from the latch bracket.




3. Disconnect the cable sheath grommet from the latch.
4. Disconnect the cable end from the latch.

Installation Procedure




1. Install the cable end into the catch on the latch.
2. Install the cable sheath grommet into the slotted hole in the latch.




3. Align the latch within the marked area.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the bolts attaching the latch.

Tighten the hood latch bolts to 10 N.m (89 lb in).
