Hood Latch Replacement - Left

Hood Latch Replacement - Left

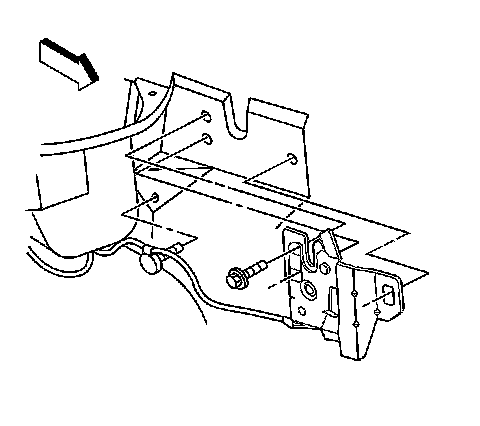

Removal Procedure




1. Remove the air inlet grille.




2. Mark the perimeter of the latch using a grease pencil.
3. Remove the bolts attaching the latch.




4. Remove the cable from the push-in retainer attaching the cable sheath to the wheelhouse panel.
5. Disconnect the cable sheath grommet from the latch.
6. Disconnect the cable end from the latch.

Installation Procedure




1. Install the cable end into the catch on the latch.
2. Install the cable sheath grommet into the slotted hole in the latch.




3. Install the hood latch and attaching bolts.
4. Align the latch within the marked area.

Notice: Refer to Fastener Notice in Service Precautions.

5. Tighten the hood latch bolts.

Tighten the hood latch bolts to 10 N.m (89 lb in).

6. Install the cable sheath to the push -in retainer.




7. Install the air inlet grille.
