Front Bumper Shock Absorber: Service and Repair

Energy Absorber Replacement - Front

Removal Procedure

1. Remove the front fascia.




2. Remove the energy absorber bolts and spacers.
3. Remove the energy absorber.

Installation Procedure

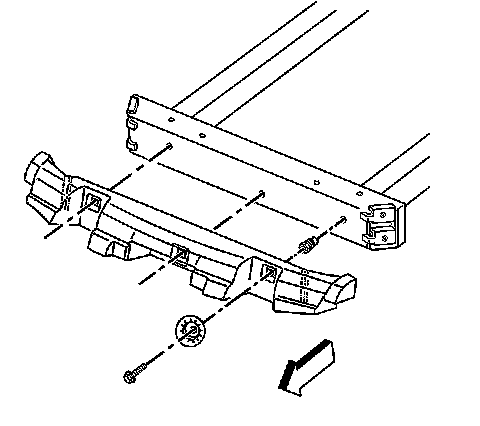

1. Position the energy absorber to the impact bar.
2. Install the center spacer and bolt.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the outer spacers and bolts.

Tighten the front energy absorber bolts to 5 N.m (44 lb in).

4. Install the fascia.
