Lamp Deflector Replacement - Front Bumper Fascia

Lamp Deflector Replacement - Front Bumper Fascia

Removal Procedure




1. Remove the fascia close out panel.
2. Remove the fog lamp, if equipped.

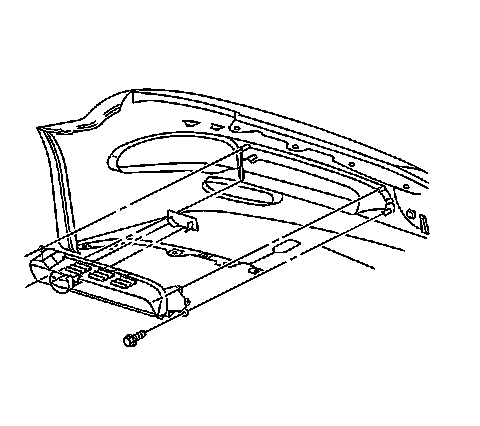

3. Remove the fascia lamp deflector bolts.
4. Remove the fascia lamp deflector.

Installation Procedure

Important:
* If the vehicle has the fog lamp option ensure that the fog lamp opening filler has been removed from the fascia deflector.

* If the vehicle does not have the fog lamp option ensure that the fog lamp opening filler has been installed to the fascia deflector.




1. Position the fascia lamp deflector to the fascia.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the fascia lamp deflector to fascia bolts.

Tighten the fascia lamp deflector bolts to 3 N.m (27 lb in).

3. Install the fog lamp, if removed.
4. Install the front fascia close out panel.
