Fascia Retainer Replacement - Front Bumper

Fascia Retainer Replacement - Front Bumper

Removal Procedure

1. Remove the front fascia.

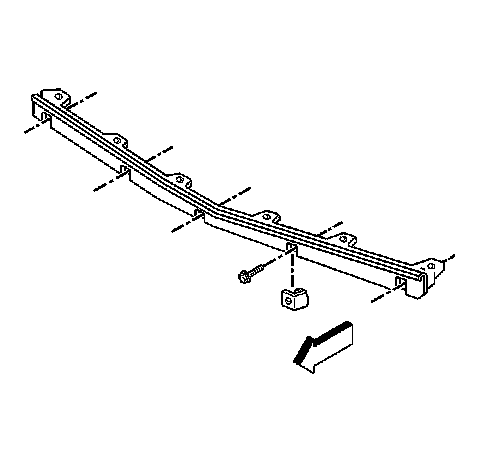

2. Remove the front fascia retainer to bracket bolts.
3. Remove the fascia retainer.

Installation Procedure




1. Position the retainer to the upper bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the front fascia retainer to bracket bolts.

Tighten the front fascia retainer bolts to 7 N.m (62 lb in).

3. Install the front fascia.
