Speaker Replacement - Front

SPEAKER REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the door trim panel.

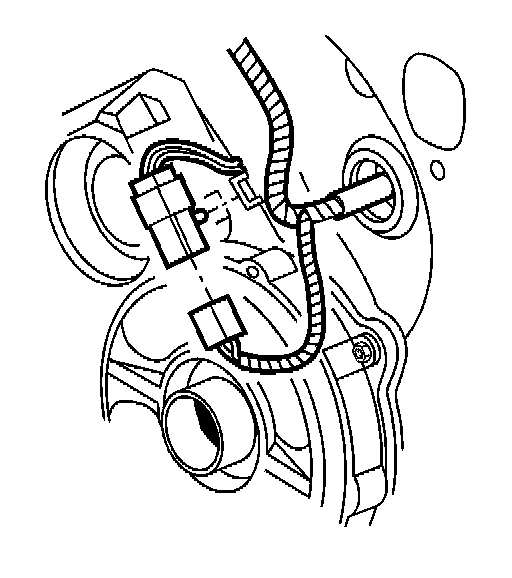

2. Disconnect the electrical/audio connector from the front door radio speaker assembly.

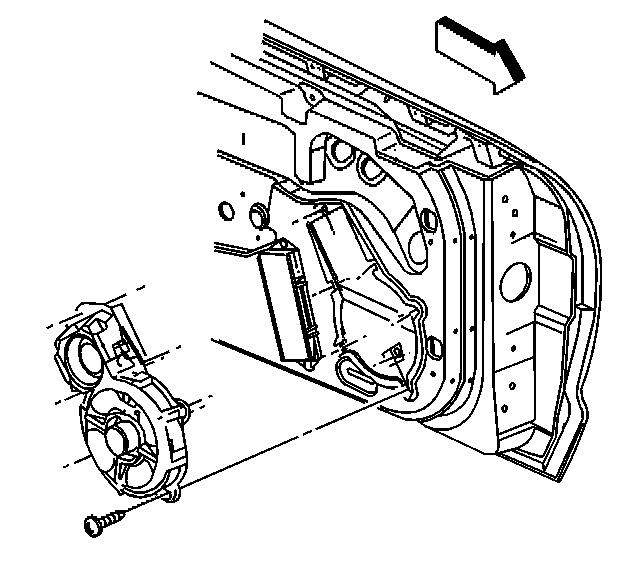

3. Remove the screws retaining the front door speaker assembly to the door.

IMPORTANT: The speaker assembly is only held in place by retaining screws. Be sure to support the speaker assembly upon removal.

4. Remove the front door speaker assembly.

INSTALLATION PROCEDURE

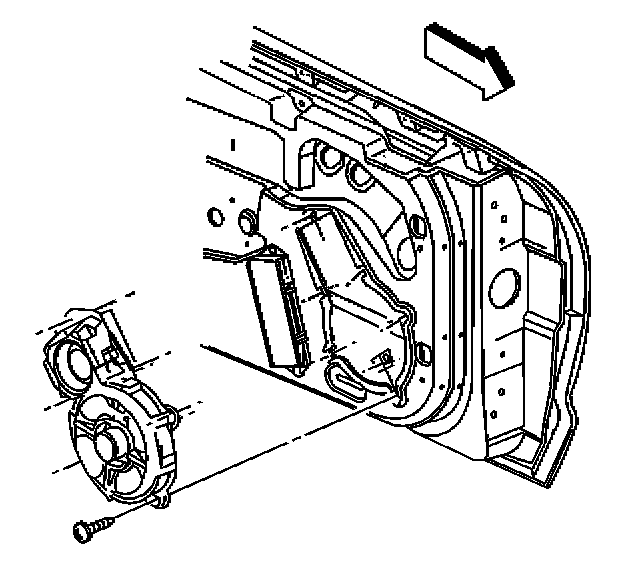

1. Install the front door speaker assembly into position in the door.
2. Install the front door speaker assembly retaining screws in the following sequence:
2.1. The uppermost screw
2.2. The lowermost screw
2.3. The remaining screws in a criss-cross pattern

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: The tightening sequence MUST be followed.

Tighten
Tighten the front door speaker assembly retaining screws in sequence to 2.5 N.m (22 lb in).

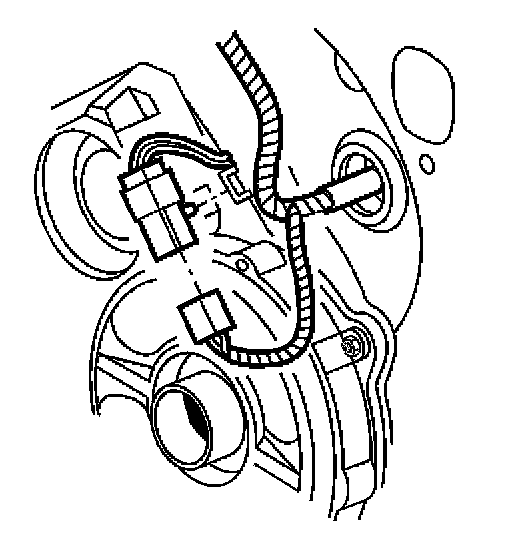

3. Connect the electrical/audio connector to the front door speaker assembly.
4. Install the door trim panel.
