B2567

DTC B2567

CIRCUIT DESCRIPTION
The folding top switch circuit provides a ground input to the BCM when the switch is pressed. This input allows the BCM to detect a folding top lid release request. If the BCM detects a ground on the folding top release switch signal circuit, the BCM will activate the folding top (TONN REL) relay. The BCM monitors the folding top release switch circuit and determines how long a ground has been applied. If the ground is applied for longer than expected, a malfunction is present and a DTC will set.

CONDITIONS FOR SETTING THE DTC
The BCM detects a ground on the folding top release switch signal circuit for longer than 60 seconds.

ACTION TAKEN WHEN THE DTC SETS
- Stores a DTC B2567 in the BCM memory.
- No driver warning message will be displayed for this DTC.

CONDITIONS FOR CLEARING THE DTC
- The BCM no longer detects a ground on the folding top release switch signal circuit for longer than 60 seconds.
- A history DTC will clear after 50 consecutive ignition cycles if the condition for the malfunction is no longer present.
- Use the IPC clearing DTCs feature.
- Use a scan tool.

DIAGNOSTIC AIDS
- The following conditions may cause an intermittent malfunction:
- There is an intermittent short to ground in the folding top release switch signal circuit.
- The folding top switch is shorted to ground internally or is sticking.
- The folding top switch is pressed for longer than 60 seconds.
- If the folding top release switch signal circuit is shorted to ground with the ignition ON, the folding top will release once and then will remain inoperative. If the short occurred when the ignition was turned OFF, the folding top will release as soon as the ignition is turned ON and then will remain inoperative. The BCM will remember the last transition that took place from the folding top release switch and will not release the folding top again until the BCM detects a change from the folding top switch.
- If the DTC is a history DTC, the problem may be intermittent. Perform the tests shown while moving related wiring and connectors. This can often cause the malfunction to occur.

TEST DESCRIPTION

Steps 1-2:

Steps 3-7:

Steps 8-10:

The number(s) below refer to the step number(s) on the diagnostic table.

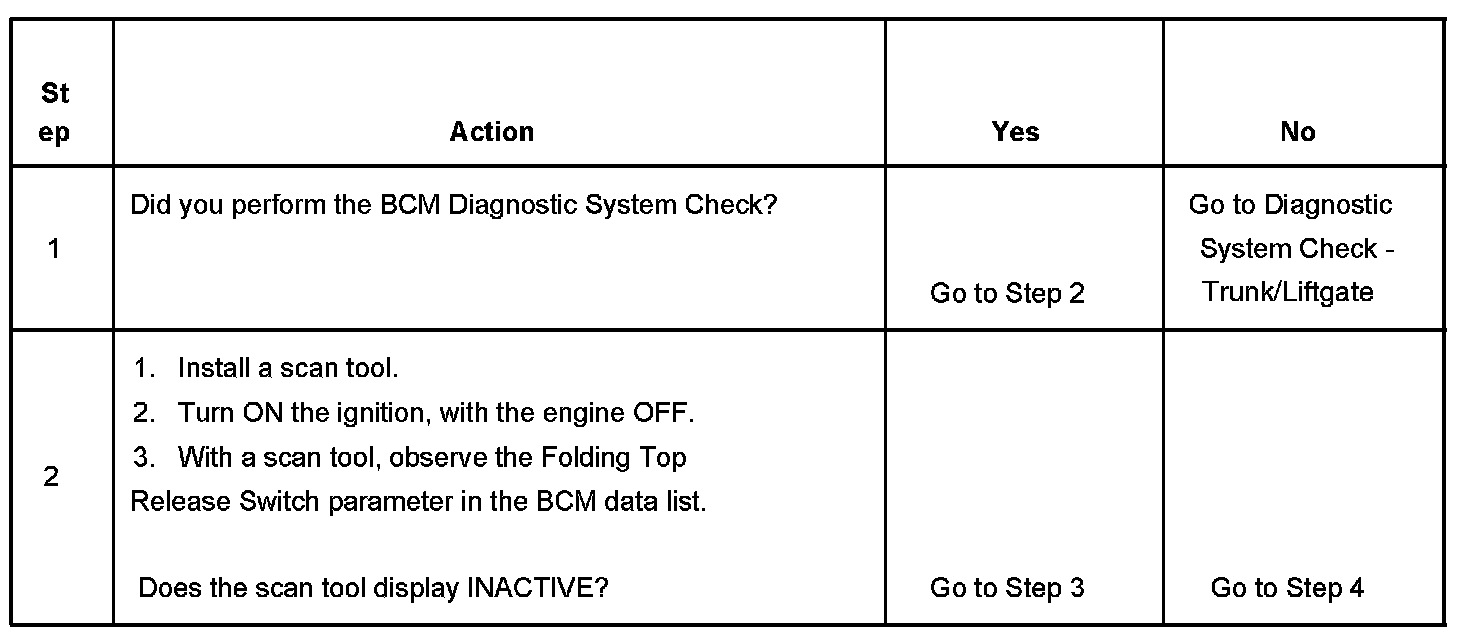

2. Tests for the normal state of the folding top release switch using a scan tool. The scan tool will display the normal state as INACTIVE, and ACTIVE when the switch is activated.

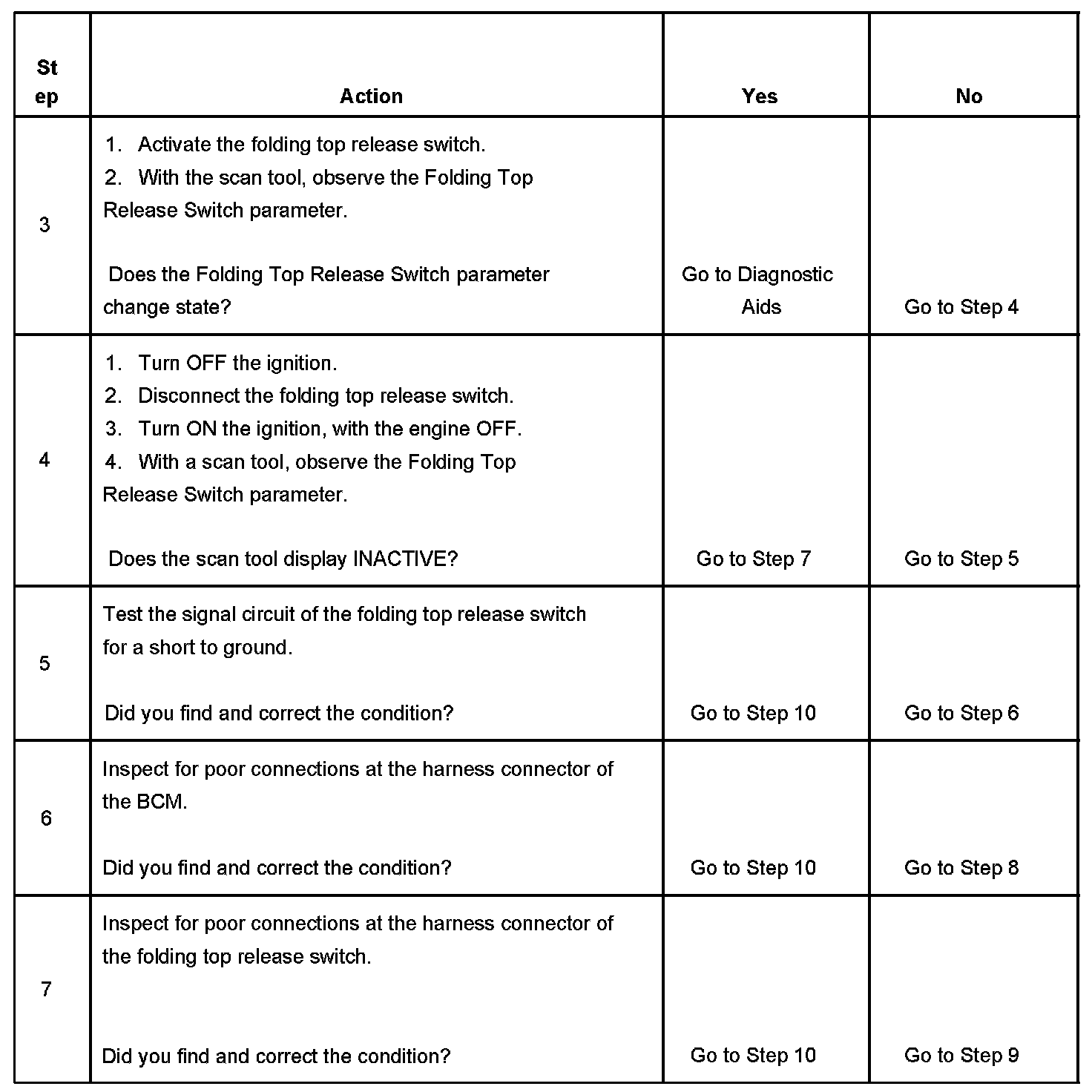

3. Tests if the BCM is able to detect a change in folding top release switch state. The scan tool will display the normal state as INACTIVE, and ACTIVE when the switch is activated.
4. Tests for a stuck or shorted folding top release switch. If the folding top release switch is stuck or shorted, the state will change from ACTIVE to INACTIVE when the folding top release switch is disconnected.
5. Tests for a short to ground in the folding top release switch signal circuit.

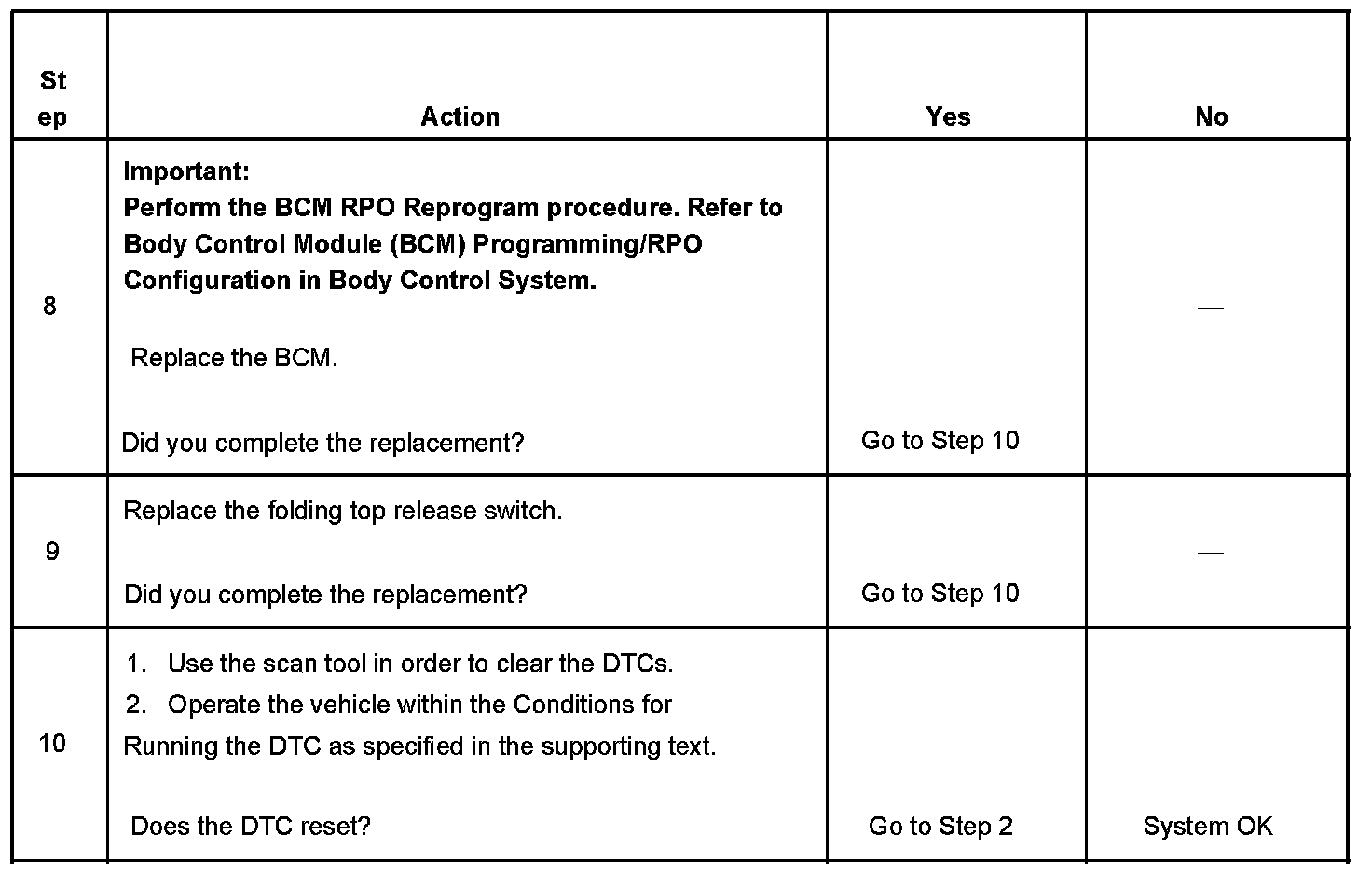

8. When the BCM is replaced, use a scan tool to perform the BCM RPO Reprogram procedure. Refer to Body Control Module (BCM) Programming/RPO Configuration in Body Control System.
