Windshield Washer Hose: Service and Repair

HOSE REPLACEMENT - WINDSHIELD WASHER

REMOVAL PROCEDURE
1. Remove the washer solvent container to gain access to the washer hose pump side.
2. Disconnect the washer hose from the washer pump.
3. Remove the air inlet grille panel to gain access to the washer hose.

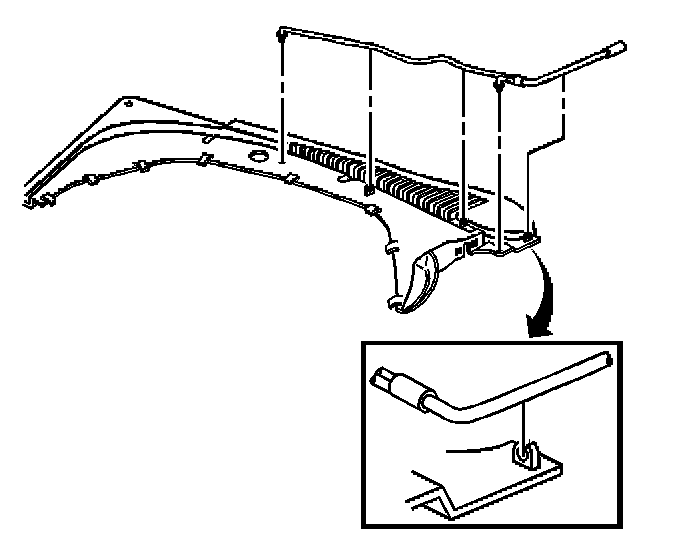

4. Disconnect the washer hose from the bottom of the air inlet grille panel.
5. Remove the washer hose from the vehicle.

INSTALLATION PROCEDURE

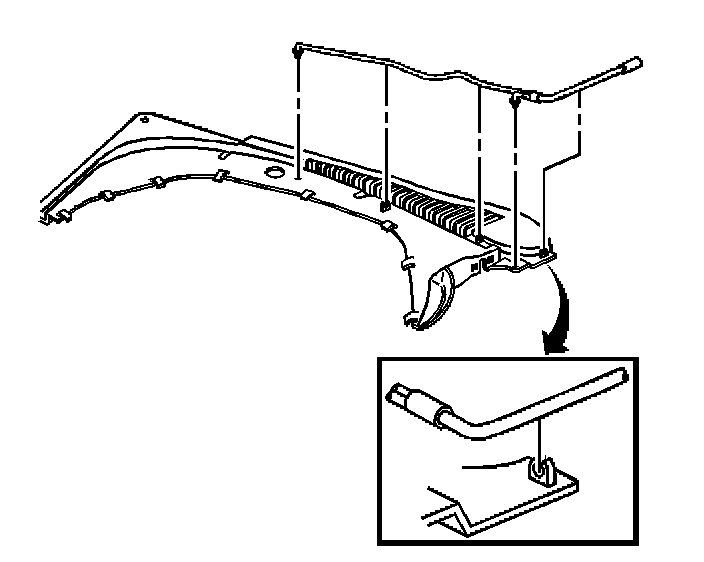

1. Install the washer hose to the bottom of the air inlet grille panel.
2. Install the air inlet grille panel.
3. Connect the washer hose to the washer pump.
4. Install the washer solvent container.
